Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 12, 2017, 03:44 PM

  • 30 0123_30 0122_6122017_090716.mp4

  • 30 0123_30 0122_6122017_092405.mp4

  • 30 0123_30 0122_6122017_092631.mp4

Date
06/12/2017
W/O
0635597
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00878
PipeID
P17827
Time
8:44 AM
Certificate
415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7432
Sewer Name
30 SOUTH BAY CITIES MAIN TRUNK
City
REDONDO BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 30
Page No.
06
Purpose
Routine Assessment
Project
20170612DF_SOUTH_BAY_CITIES_MAIN_TR
Material
NRCP
Shape
Circular
Height
18 in.
Upstream MH
30 0122
Downstream MH
30 0123
Dir. of Survey
Upstream
Length Surveyed
410.7 ft.
Total Length
410.7 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 30 0122 to 30 0123
MH: 30 0122MH: 30 0123upstream0 ft. AMH - Upstream Manhole, Survey Ends - 9:39 AM1.5 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish1.5 ft. SZC - Surface Other Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 70% MAG COAT80.4 ft. MGP - General Photograph - 35% MAG COAT91.3 ft. MGP - General Photograph197.1 ft. MGP - General Photograph360.9 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"371.4 ft. MGP - General Photograph - SPALLING389.6 ft. MGP - General Photograph - PEELING/FLAKING408.6 ft. SZC - Surface Other Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 70% MAG COAT408.7 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start410.7 ft. MWL - Water Level, 30 %of cross sectional area410.7 ft. MWM - Water Mark, 35 %of cross sectional area410.7 ft. AMH - Downstream Manhole, Survey Begins - 8:45 AM

Observation photos (5)

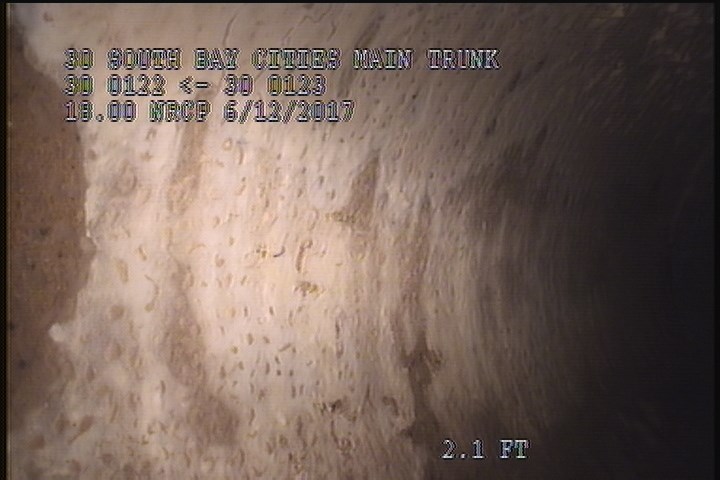

  • Surface Other Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 70% MAG COAT

    2.1 ft. - Surface Other Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 70% MAG COAT

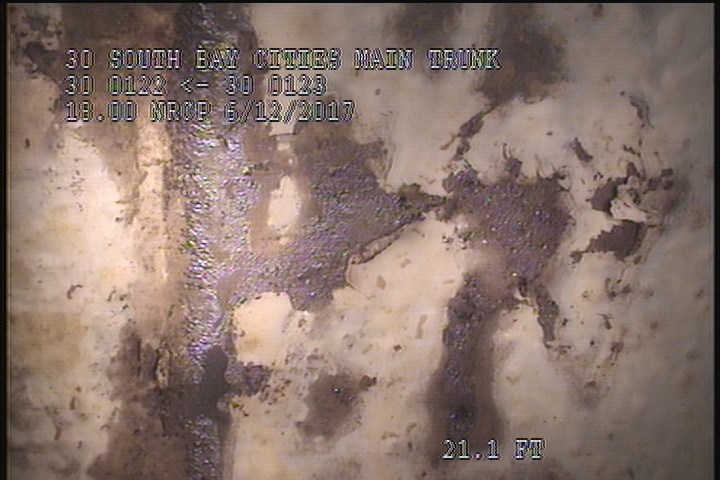

  • General Photograph - PEELING/FLAKING

    21.1 ft. - General Photograph - PEELING/FLAKING

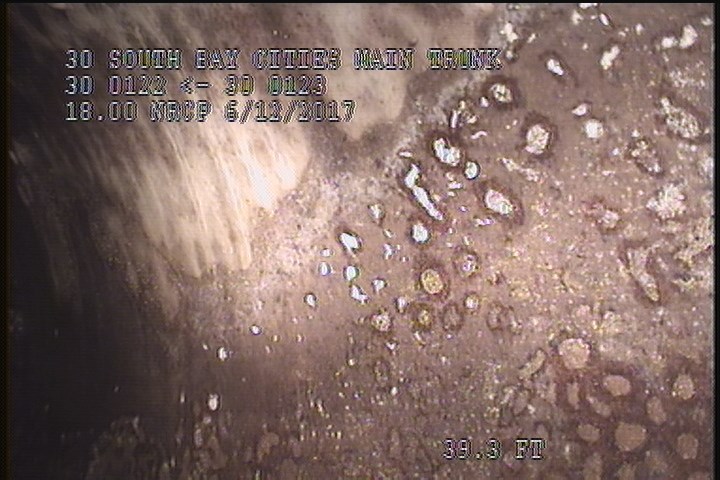

  • General Photograph - SPALLING

    39.3 ft. - General Photograph - SPALLING

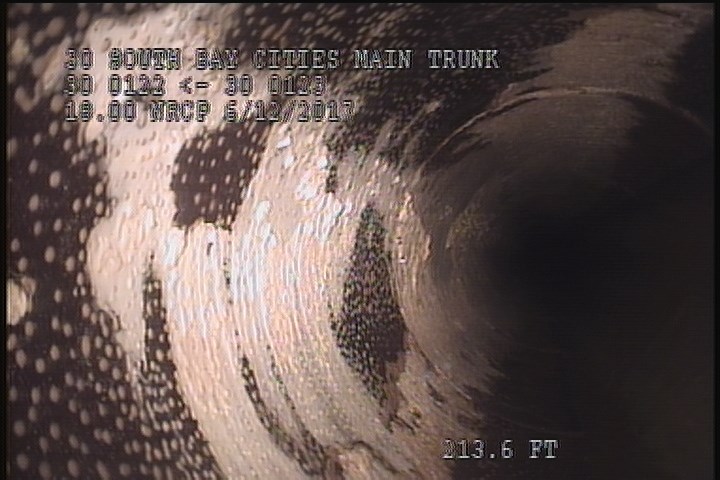

  • General Photograph

    213.6 ft. - General Photograph

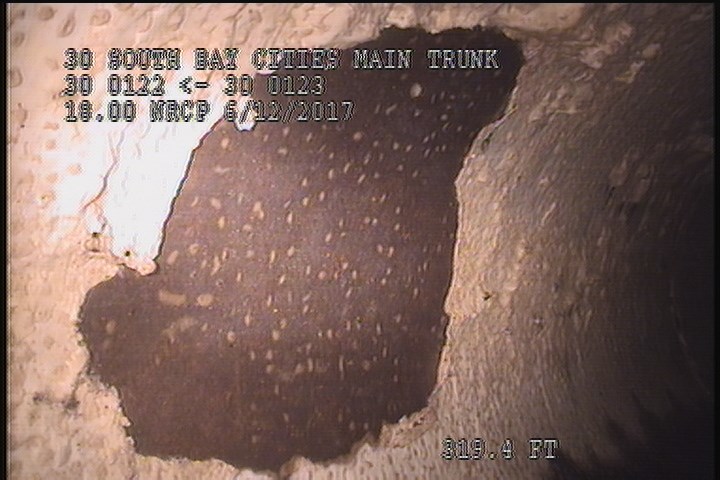

  • General Photograph

    319.4 ft. - General Photograph

All inspections of P17827Work order 0635597

Observations (14)

DistanceCodeObservation
2.1SZC70% MAG COAT
21.1MGPPEELING/FLAKING
2SSS—
409.2SSS—
213.6MGP—
410.7AMH9:39 AM
0MWL—
319.4MGP—
330.3MGP35% MAG COAT
0MWM—
49.8TFA—
39.3MGPSPALLING
409.2SZC70% MAG COAT
0AMH8:45 AM

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2017-06-12T08:44:38-07:00
