Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 11, 2017, 08:27 AM

  • C 0113_C 0112 _09112017_030724.mp4

Date
09/11/2017
W/O
651657
Weather
Dry
Operator/Surveyor
JUAN B
Sewer ID
Z00126
PipeID
P09632
Time
1:27 AM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K4965
Sewer Name
C JOINT OUTFALL C - UNIT 4A
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
24
Purpose
Routine Assessment
Project
WO_651657_TV03109_AUG2017
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
51 in.
Width
51 in.
Upstream MH
C 0113
Downstream MH
C 0112
Dir. of Survey
Downstream
Length Surveyed
157.1 ft.
Total Length
157.1 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
3
O&M Quick
4121
O&M Rating
6
Overall Index
3
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole C 0113 to C 0112
MH: C 0113MH: C 0112downstream0 ft. AMH - Upstream Manhole, Survey Begins - C 1130 ft. MWL - Water Level, 35 %of cross sectional area0.1 ft. MWM - Water Mark, 60 %of cross sectional area6.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start6.9 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start157.1 ft. MGO - General Observation - CONNECTION AT 3 OC157.1 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish157.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish157.1 ft. AMH - Downstream Manhole, Survey Ends - C 0112157.1 ft. MGO - General Observation - CONNECTION AT 9 OC

Observation photos (2)

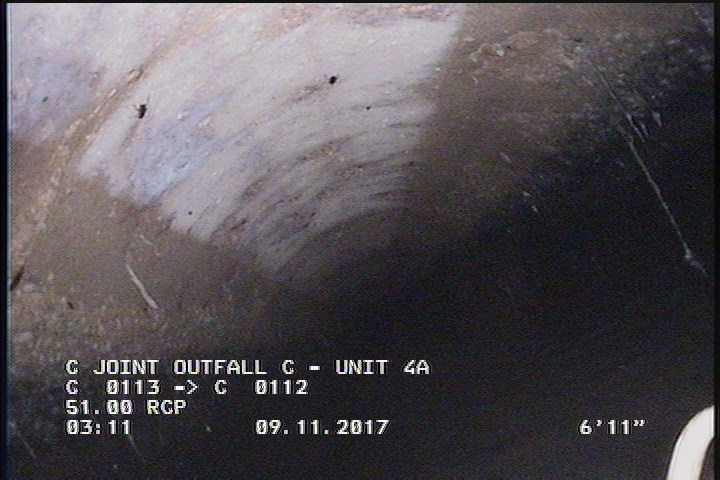

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    6.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

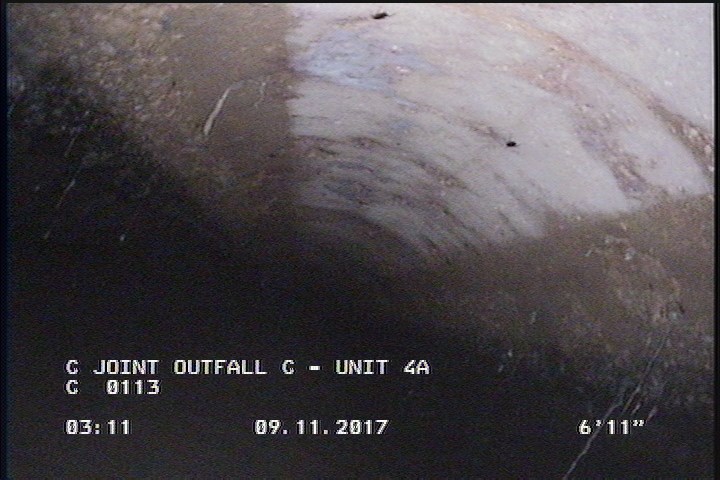

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    6.9 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P09632Work order 651657

Observations (10)

DistanceCodeObservation
157.1MGOCONNECTION AT 3 OC
6.9DAGS—
6.9SAV—
0AMHC 113
157.1SAV—
157.1DAGS—
157.1AMHC 0112
0.1MWM—
157.1MGOCONNECTION AT 9 OC
0MWL—

Properties (4)

additional_info
SC345956
custom_field_two
3
customer
LACSD
datetime
2017-09-11T01:27:48-07:00
