Wastewater/Activity/PacpInspection/1.0Jul 25, 2017, 04:58 AM
C 0119_C 0118_24072017_220338.mp4
- Date
- 07/24/2017
- W/O
- 635398
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00127
- PipeID
- P09639
- Time
- 9:58 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4758
- Sewer Name
- C JOINT OUTFALL C - UNIT 4B
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- WO_635398_TV03074_JUN2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 48 in.
- Width
- 48 in.
- Upstream MH
- C 0118
- Downstream MH
- C 0119
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.5 ft.
- Total Length
- 2.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 3100
- O&M Rating
- 3
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (2)

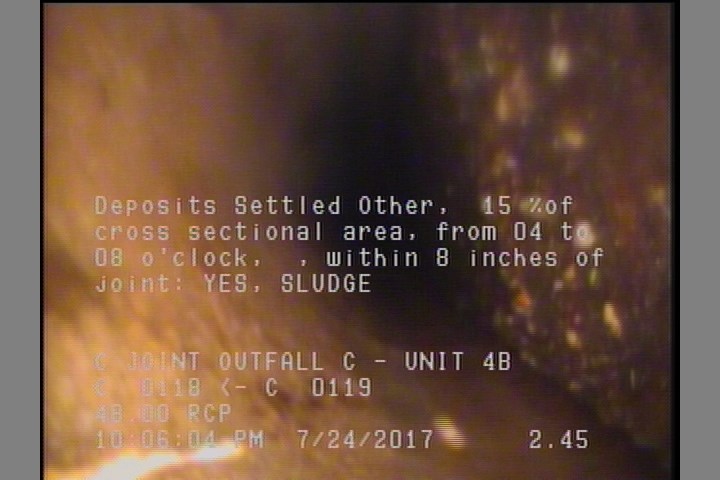

2.1 ft. - Deposits Settled Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES - SLUDGE

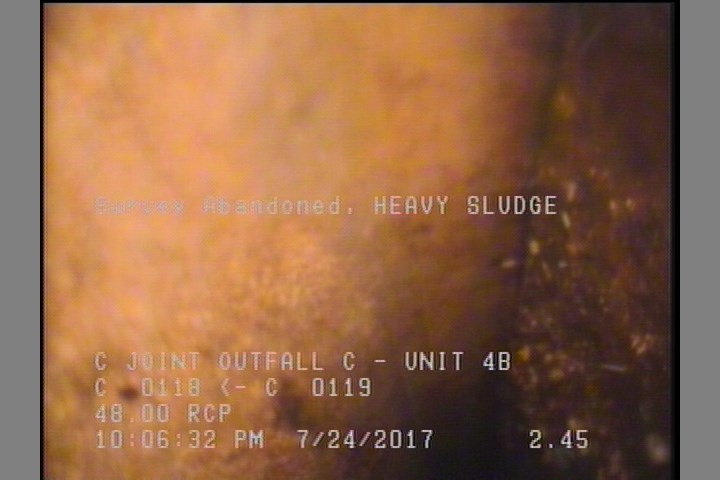

2.5 ft. - Survey Abandoned - HEAVY SLUDGE
Observations (5)
| Distance | Code | Observation |
|---|---|---|
| 2.5 | MSA | HEAVY SLUDGE |
| 0 | MWL | — |
| 0 | MWM | — |
| 2.1 | DSZ | SLUDGE |
| 0 | AMH | C 0118 |
Properties (4)
- additional_info
- SC345518
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2017-07-24T21:58:46-07:00
