Wastewater/Activity/PacpInspection/1.0May 2, 2018, 10:14 AM
C 0119A_C 0199_522018_032206.mp4
- Date
- 05/02/2018
- W/O
- 0694536
- Weather
- Light Rain
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00127
- PipeID
- P09640
- Time
- 3:14 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0850
- Sewer Name
- C JOINT OUTFALL C - UNIT 4B
- City
- LONG BEACH
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- 20180502MDM_JOINT_OUTFALL_C_UNIT_4B
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 48 in.
- Upstream MH
- C 0119A
- Downstream MH
- C 0119
- Dir. of Survey
- Downstream
- Length Surveyed
- 9.5 ft.
- Total Length
- 9.5 ft.
- Structural Index
- 5
- Structural Quick
- 5141
- Structural Rating
- 9
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 5
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (4)

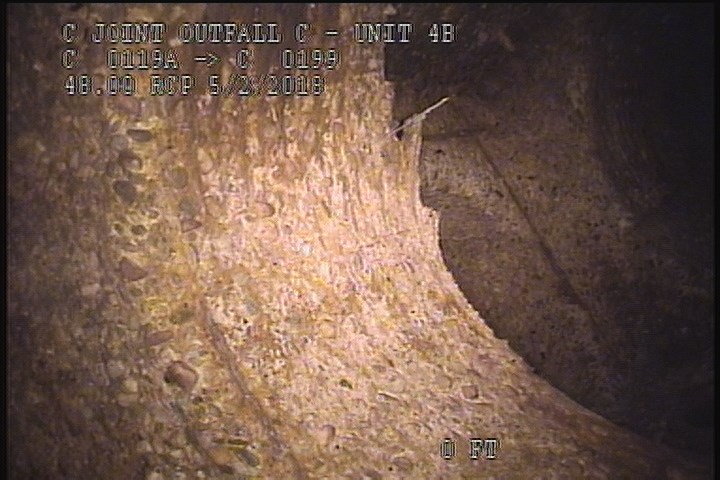

2 ft. - General Observation - 48" RCP
2 ft. - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

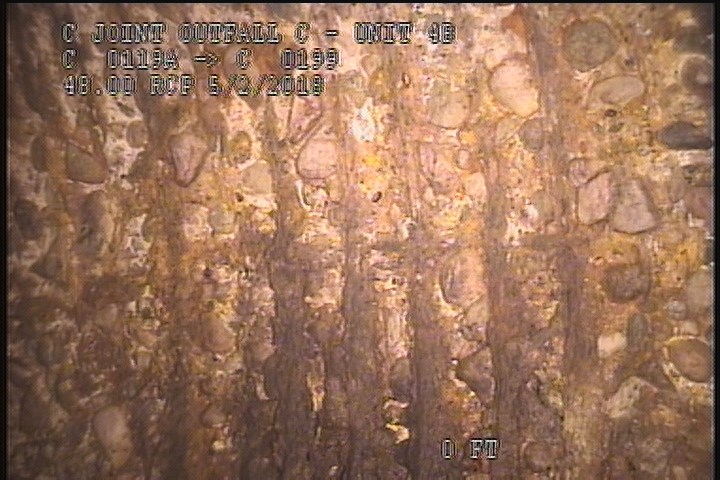

2 ft. - Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - CIRCUM LONG REBAR

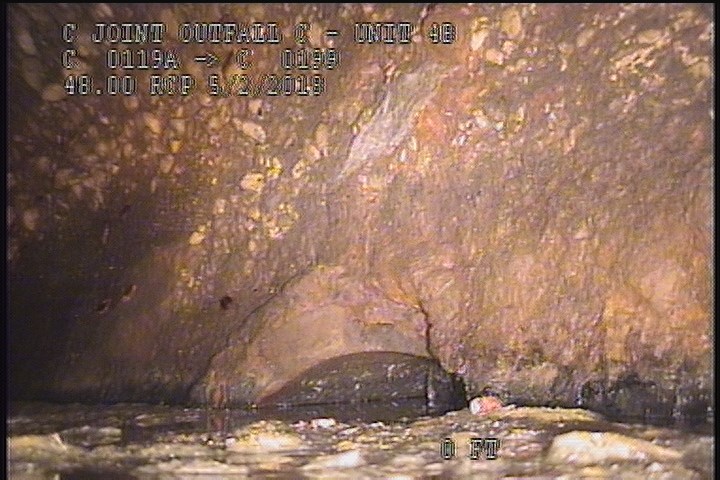

9 ft. - General Observation - Conn. @ Mh, 3 O' Clock. OPEN
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 9 | MGO | Conn. @ Mh, 9 O' Clock. OPEN |
| 9 | SRC | LONG CIRCUM REBAR |
| 0 | MWM | — |
| 2 | MGO | 48" RCP |
| 9 | MGO | Conn. @ Mh, 3 O' Clock. OPEN |
| 2 | SAM | SEVERE AGG |
| 0 | MWL | — |
| 2 | SRC | CIRCUM LONG REBAR |
| 9.5 | AMH | 3:25AM |
| 0 | AMH | 3:15AM |
| 9 | SAM | SEVERE AGG |
Properties (4)
- custom_field_three
- LONG CIRCUM REBAR CORRODED
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-05-02T03:14:42-07:00
