Wastewater/Activity/PacpInspection/1.0May 2, 2018, 07:50 AM
C 0119B_C 0119A_522018_014531.mp4
- Date
- 05/02/2018
- W/O
- 0703730
- Weather
- Light Rain
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00127
- PipeID
- P20079
- Time
- 12:50 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0850
- Sewer Name
- C JOINT OUTFALL C - UNIT 4B
- City
- LONG BEACH
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- 20180502MDM_JOINT_OUTFALL_C_UNIT_4B
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 48 in.
- Upstream MH
- C 0119A
- Downstream MH
- C 0119B
- Dir. of Survey
- Upstream
- Length Surveyed
- 72.4 ft.
- Total Length
- 72.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (4)

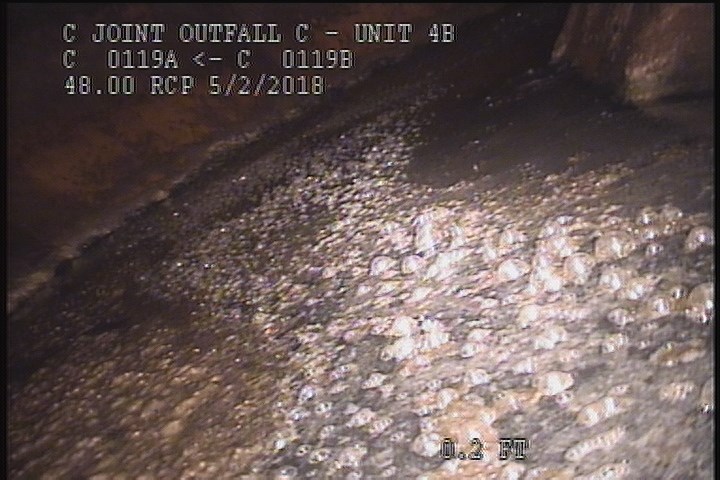

0 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - SLUDGE

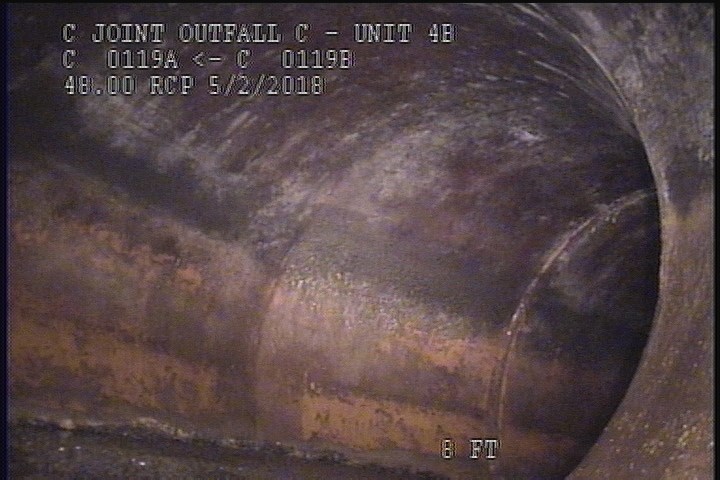

8 ft. - General Observation - 48" RCP-FRPP

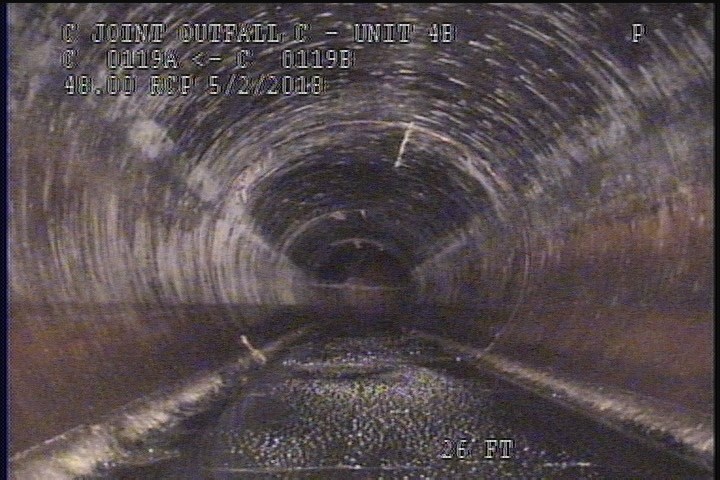

26 ft. - General Observation - 48" RCP-FRPP

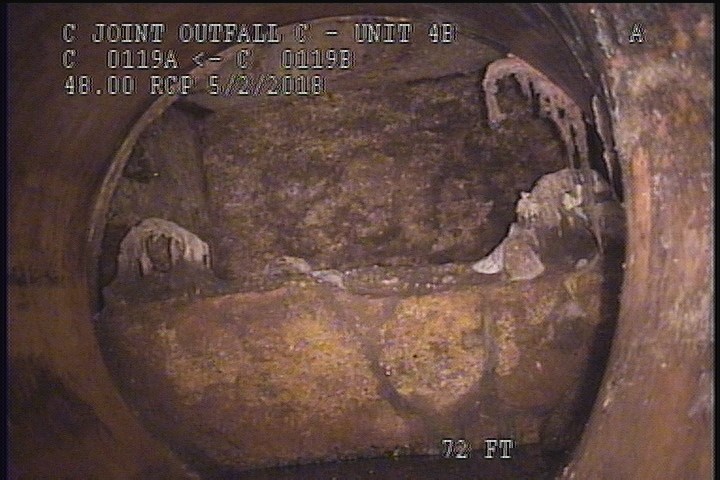

72 ft. - General Observation - STOPLOG IN PLACE
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | DSZ | SLUDGE |
| 72 | MGO | STOPLOG IN PLACE |
| 26 | MGO | 48" RCP-FRPP |
| 37.2 | DSZ | SLUDGE |
| 0 | AMH | 12:55AM |
| 0 | MWL | NO FLOW |
| 72.4 | AMH | 1:40AM |
| 8 | MGO | 48" RCP-FRPP |
| 0 | MWM | — |
| 37.2 | DSZ | SLUDGE |
| 72 | DSZ | SLUDGE |
Properties (6)
- additional_info
- REVERSE INSPECTION
- custom_field_three
- LINNER GOOD COND
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2018-05-02T00:50:33-07:00
- lining
- FRPP
