Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 2, 2018, 07:19 PM

  • A 0210_A 0209_522018_123535.mp4

Date
05/02/2018
W/O
0686843
Weather
Dry
Operator/Surveyor
SHADLER
Sewer ID
Z00323
PipeID
P08146
Time
12:19 PM
Certificate
U-415-06024035
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7699
Sewer Name
A JOA-1A LOS COYOTES WRP INTERCEPTOR
City
SOUTH GATE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
26
Purpose
Maintenance Related
Project
20180502KS_JOA_1A_LOS_COYOTES_WRP_INTERCEPTOR
Material
Reinforced Concrete Pipe
Shape
Circular
Height
75 in.
Upstream MH
A 0210
Downstream MH
A 0209
Dir. of Survey
Downstream
Length Surveyed
878.6 ft.
Total Length
878.6 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole A 0210 to A 0209
MH: A 0210MH: A 0209downstream0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:21 PM2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 65% MAG2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start72.7 ft. MGP - General Photograph213.1 ft. MGP - General Photograph400.2 ft. MGP - General Photograph801.5 ft. MGP - General Photograph873.7 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 70% MAG873.7 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish876 ft. MGO - General Observation - Grease Throughout The Reach (5%)876 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach878.6 ft. AMH - Downstream Manhole, Survey Ends - 1:23 PM

Observation photos (5)

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 65% MAG

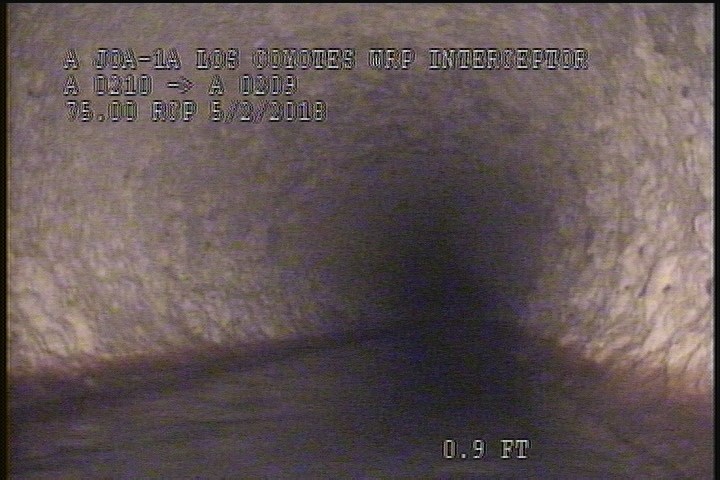

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 65% MAG

  • General Photograph

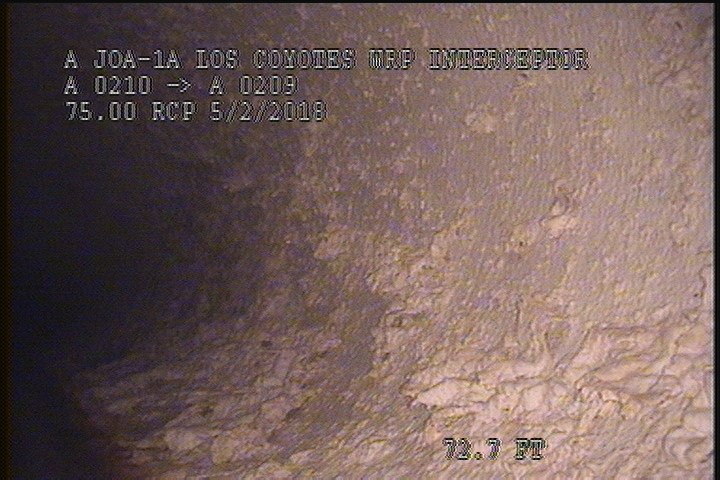

    72.7 ft. - General Photograph

  • General Photograph

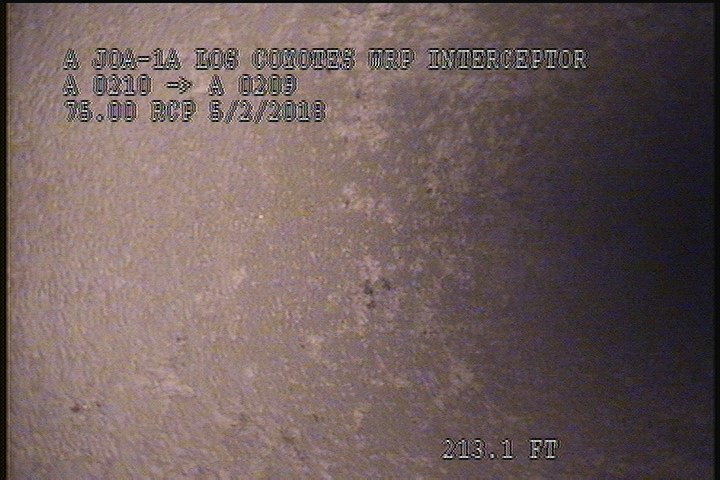

    213.1 ft. - General Photograph

  • General Photograph

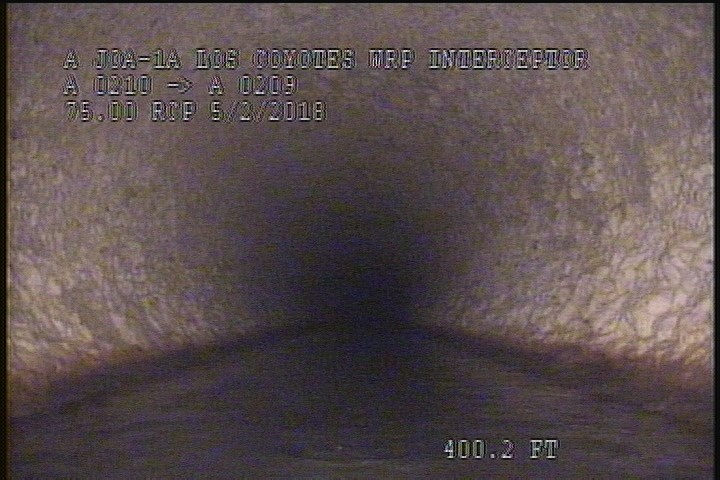

    400.2 ft. - General Photograph

  • General Photograph

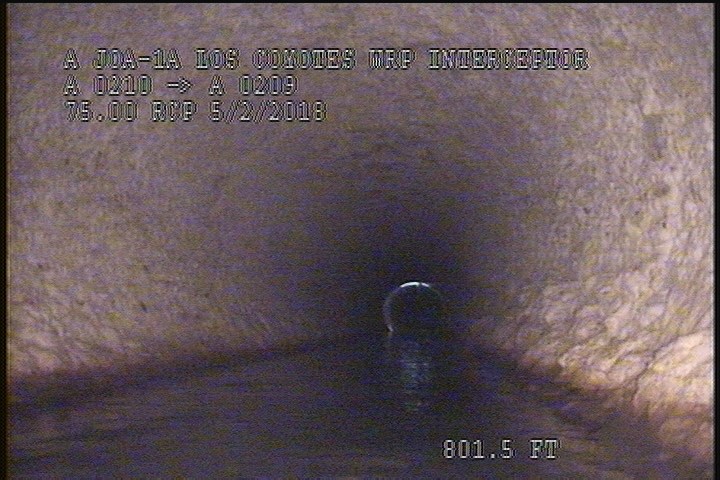

    801.5 ft. - General Photograph

All inspections of P08146Work order 0686843

Observations (14)

DistanceCodeObservation
801.5MGP—
2SZ65% MAG
72.7MGP—
873.7SZ70% MAG
0MWM—
0MWL—
400.2MGP—
213.1MGP—
876MGOGrease Throughout The Reach (5%)
2SSS—
878.6AMH1:23 PM
876MGOPeeling & Flaking Throughout The Reach
873.7SSS—
0AMH12:21 PM

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2018-05-02T12:19:20-07:00
