Wastewater/Activity/PacpInspection/1.0May 2, 2018, 04:20 PM
A 0211_A 0210_522018_111655.mp4
- Date
- 05/02/2018
- W/O
- 0686843
- Weather
- Dry
- Operator/Surveyor
- SHADLER
- Sewer ID
- Z00323
- PipeID
- P08147
- Time
- 9:20 AM
- Certificate
- U-415-06024035
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7699
- Sewer Name
- A JOA-1A LOS COYOTES WRP INTERCEPTOR
- City
- SOUTH GATE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 26
- Purpose
- Maintenance Related
- Project
- 20180502KS_JOA_1A_LOS_COYOTES_WRP_INTERCEPTOR
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 75 in.
- Upstream MH
- A 0211
- Downstream MH
- A 0210
- Dir. of Survey
- Downstream
- Length Surveyed
- 443.7 ft.
- Total Length
- 443.7 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (7)

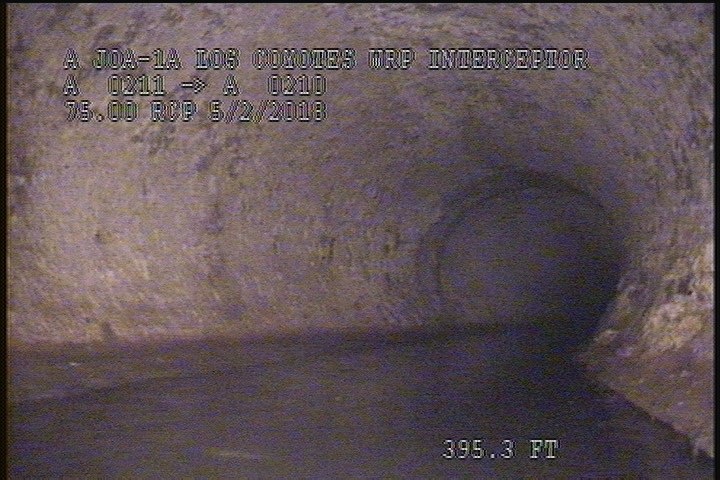

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

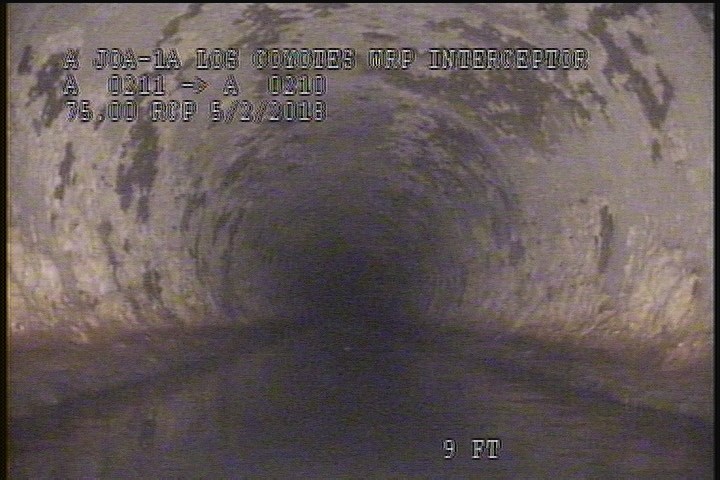

2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 70% MAG

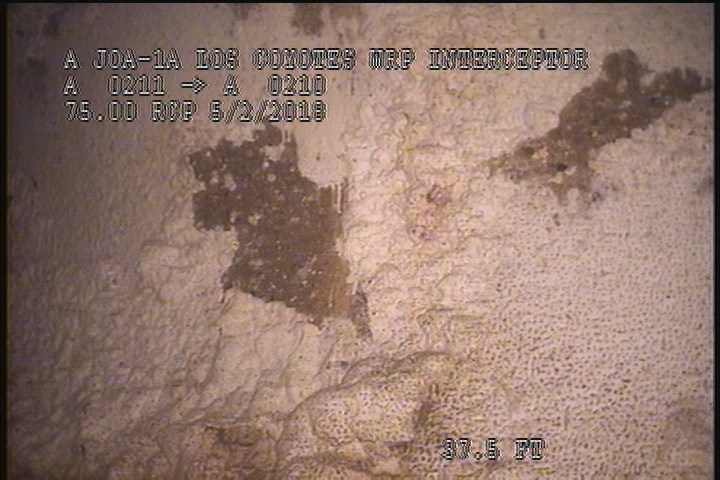

37.5 ft. - General Photograph

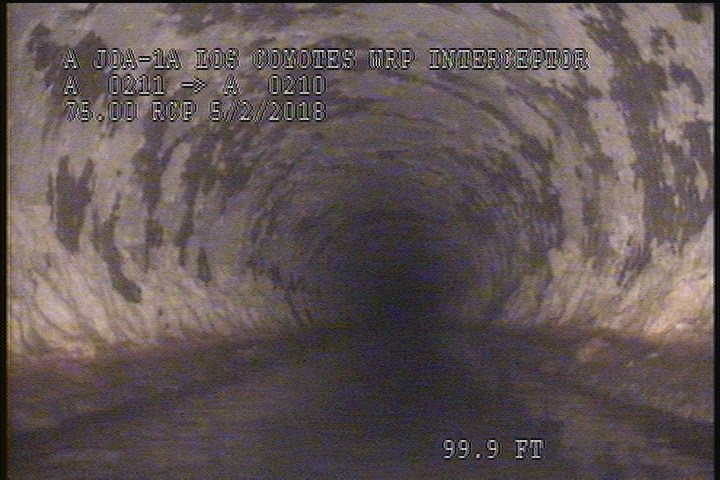

99.9 ft. - General Photograph

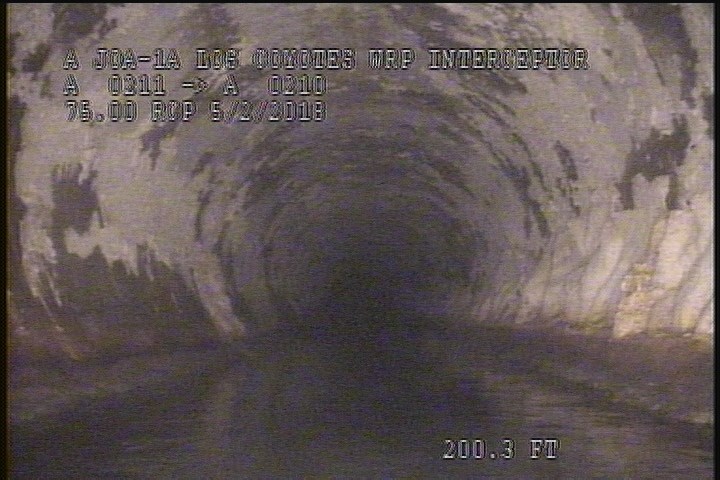

200.3 ft. - General Photograph

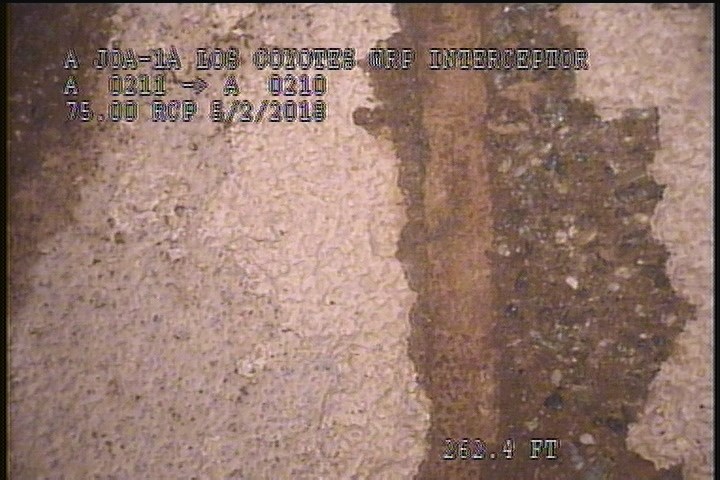

262.4 ft. - General Photograph

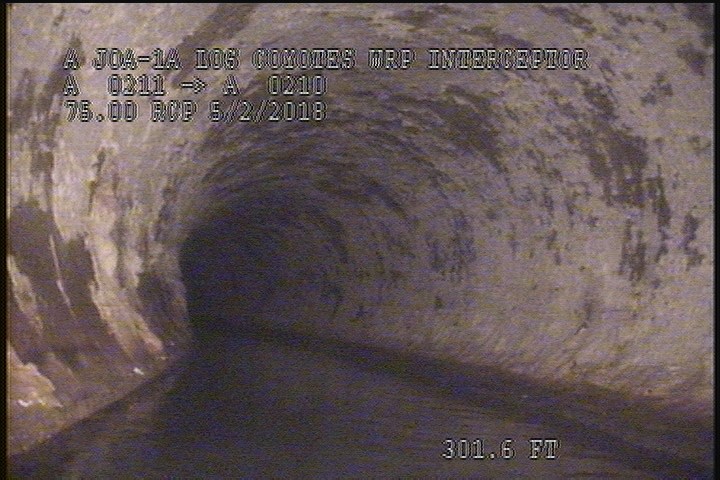

301.6 ft. - General Photograph
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 441 | SAV | — |
| 0 | AMH | 9:40 A.M. |
| 301.6 | MGP | — |
| 0.1 | MWL | — |
| 2 | SAV | — |
| 2 | SZ | 70% MAG |
| 200.3 | MGP | — |
| 441 | SZ | 70% MAG |
| 99.9 | MGP | — |
| 0.1 | MWM | — |
| 37.5 | MGP | — |
| 262.4 | MGP | — |
| 443.7 | AMH | 12:16 PM |
Properties (4)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-05-02T09:20:58-07:00
- year_laid
- 19780526
