Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 1, 2018, 05:01 PM

  • A 0198_A 0197_512018_105958.mp4

Date
05/01/2018
W/O
0686843
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00323
PipeID
P08132
Time
10:01 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7698
Sewer Name
A JOA-1A LOS COYOTES WRP INTERCEPTOR
City
DOWNEY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
29
Purpose
Routine Assessment
Project
20180427DF_JOA_1A_LOS_COYOTES_WRP_INTERCEPTOR
Material
Reinforced Concrete Pipe
Shape
Circular
Height
75 in.
Upstream MH
A 0198
Downstream MH
A 0197
Dir. of Survey
Downstream
Length Surveyed
668 ft.
Total Length
668 ft.
Structural Index
5
Structural Quick
5100
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
5
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole A 0198 to A 0197
MH: A 0198MH: A 0197downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 10:04 AM0 ft. MWM - Water Mark, 15 %of cross sectional area2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 90% MAG100.3 ft. MGP - General Photograph310.3 ft. MGP - General Photograph350.1 ft. MGP - General Photograph400.8 ft. MGP - General Photograph549.9 ft. MGP - General Photograph599.3 ft. MGP - General Photograph615.6 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHTLY VISIBLE631.8 ft. MGP - General Photograph666.5 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 90% MAG666.5 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish667 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach667 ft. MGO - General Observation - Grease Throughout The Reach (5%)668 ft. AMH - Downstream Manhole, Survey Ends - 11:43 AM

Observation photos (9)

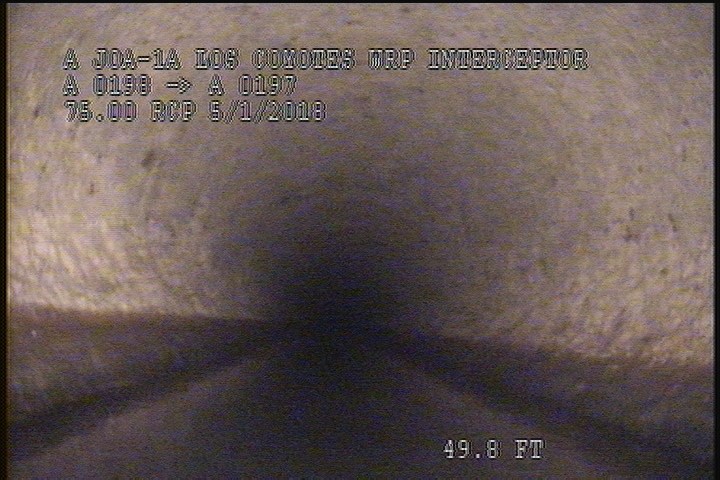

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 90% MAG

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 90% MAG

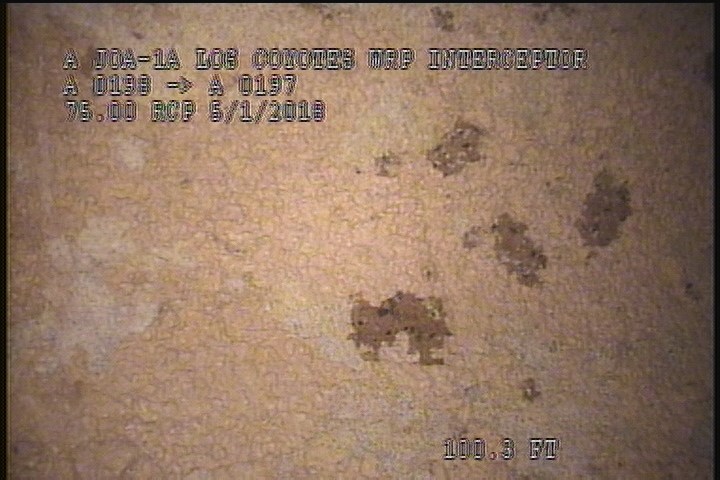

  • General Photograph

    100.3 ft. - General Photograph

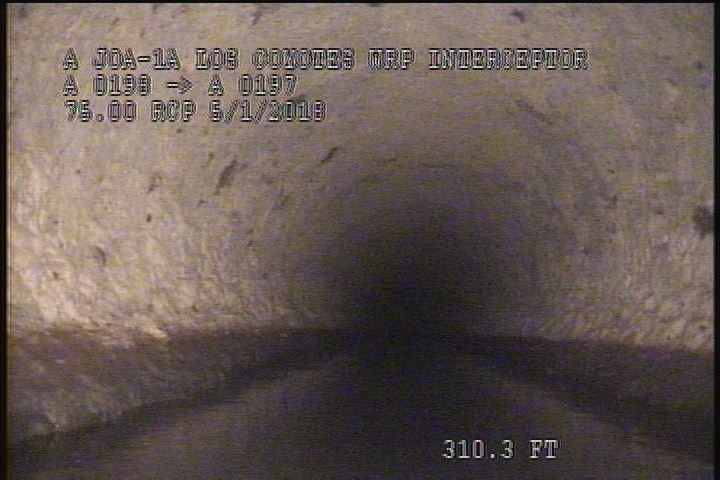

  • General Photograph

    310.3 ft. - General Photograph

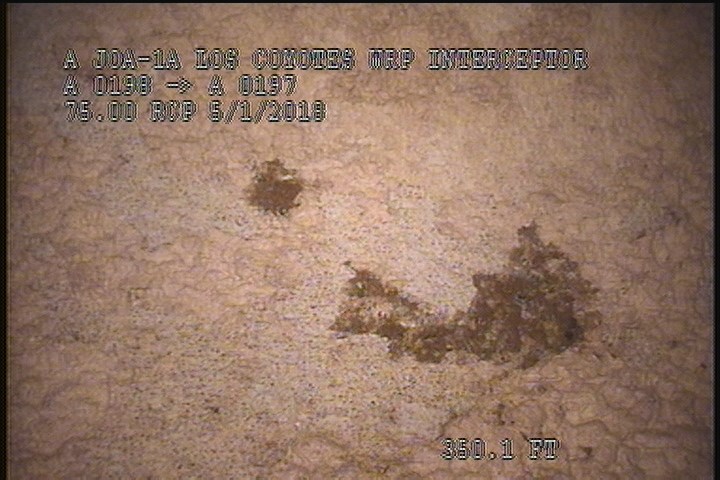

  • General Photograph

    350.1 ft. - General Photograph

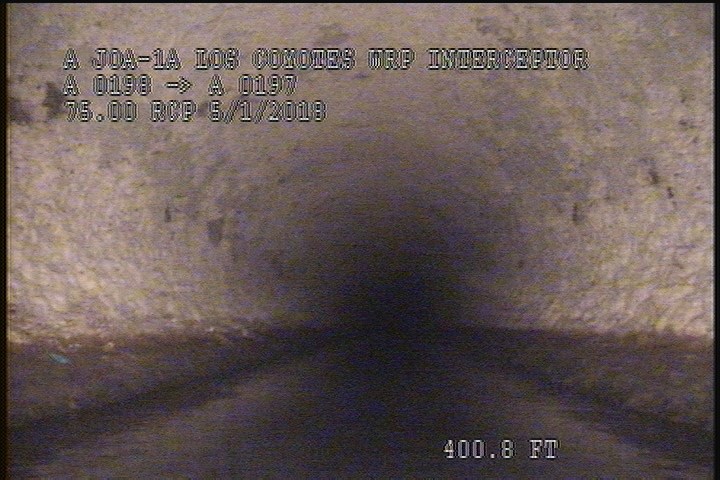

  • General Photograph

    400.8 ft. - General Photograph

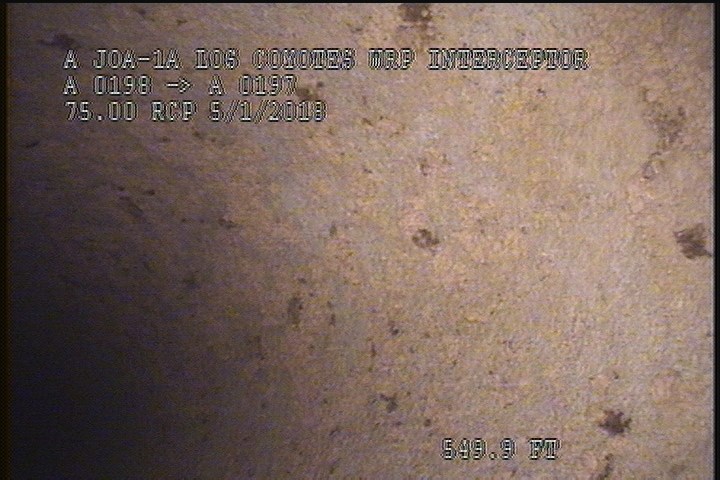

  • General Photograph

    549.9 ft. - General Photograph

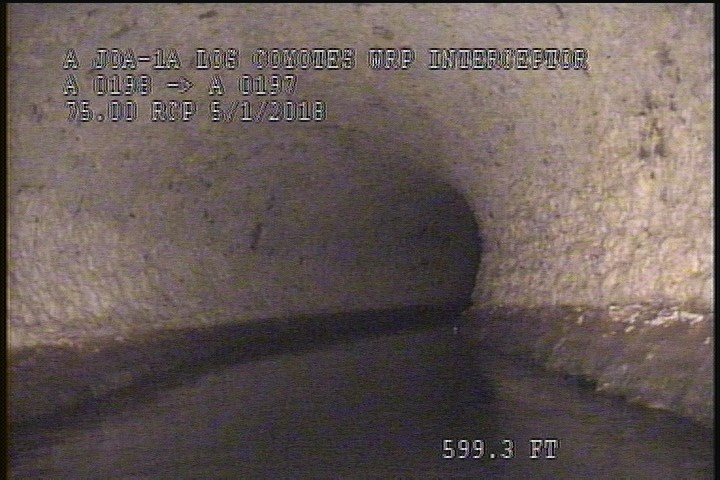

  • General Photograph

    599.3 ft. - General Photograph

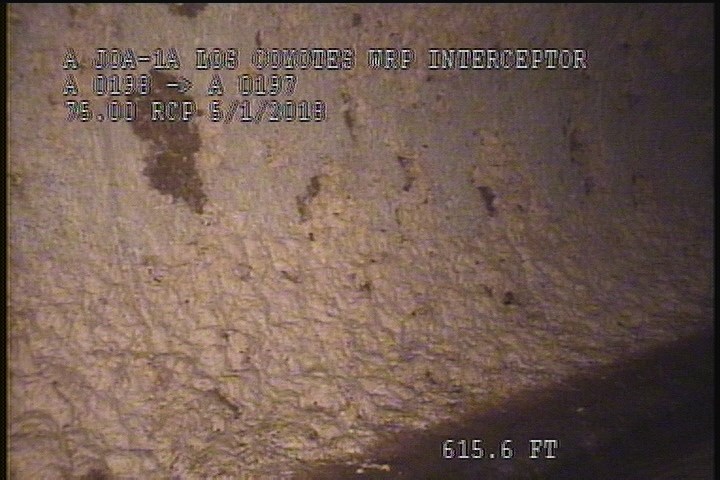

  • Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHTLY VISIBLE

    615.6 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHTLY VISIBLE

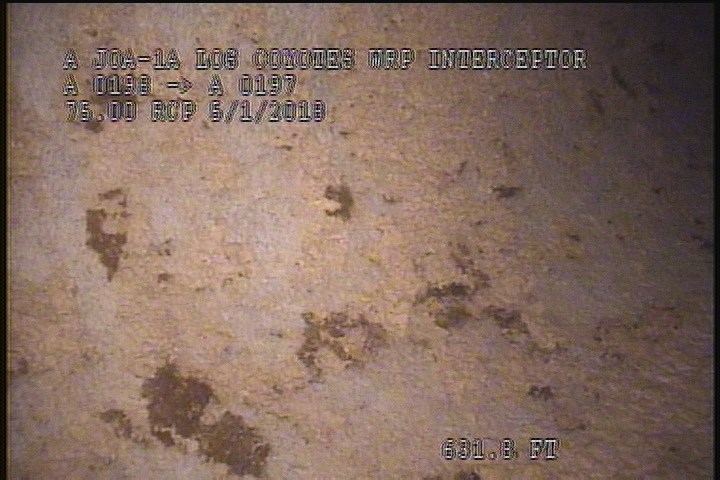

  • General Photograph

    631.8 ft. - General Photograph

All inspections of P08132Work order 0686843

Observations (17)

DistanceCodeObservation
615.6SRVSLIGHTLY VISIBLE
0MWL—
0AMH10:04 AM
666.5SZ90% MAG
350.1MGP—
310.3MGP—
666.5SRV—
100.3MGP—
631.8MGP—
2SZ90% MAG
599.3MGP—
549.9MGP—
667MGOPeeling & Flaking Throughout The Reach
668AMH11:43 AM
0MWM—
400.8MGP—
667MGOGrease Throughout The Reach (5%)

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2018-05-01T10:01:39-07:00
