Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 30, 2018, 07:55 PM

  • A 0207_A 0206_4302018_130411.mp4

Date
04/30/2018
W/O
0686843
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00323
PipeID
P08143
Time
12:55 PM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7697
Sewer Name
A JOA-1A LOS COYOTES WRP INTERCEPTOR
City
DOWNEY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
29
Purpose
Routine Assessment
Project
20180427DF_JOA_1A_LOS_COYOTES_WRP_INTERCEPTOR
Material
Reinforced Concrete Pipe
Shape
Circular
Height
75 in.
Upstream MH
A 0207
Downstream MH
A 0206
Dir. of Survey
Downstream
Length Surveyed
147.1 ft.
Total Length
147.1 ft.
Structural Index
3
Structural Quick
5131
Structural Rating
10
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole A 0207 to A 0206
MH: A 0207MH: A 0206downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:57 PM0 ft. MWL - Water Level, 15 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SRVC - Surface Reinforcement Visible Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 65% MAG64.7 ft. MGP - General Photograph101.5 ft. MGP - General Photograph145.8 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 65% MAG145.8 ft. SRVC - Surface Reinforcement Visible Chemical, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish145.8 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish145.8 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish146 ft. MGO - General Observation - Grease Throughout The Reach (5%)146 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach147.1 ft. AMH - Downstream Manhole, Survey Ends - 1:26 PM

Observation photos (4)

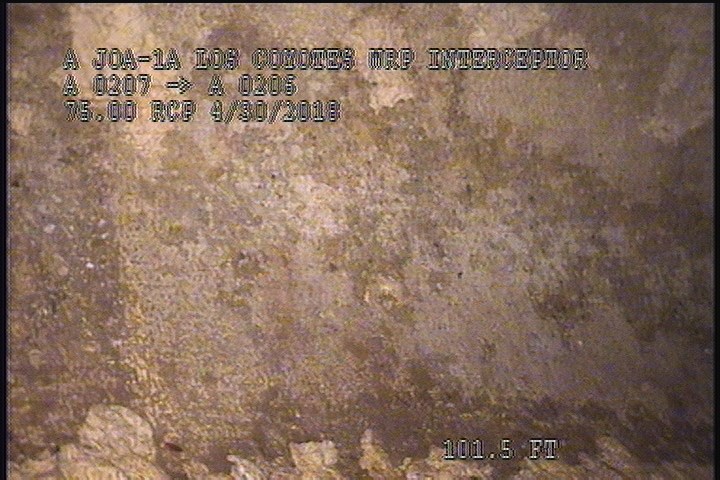

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

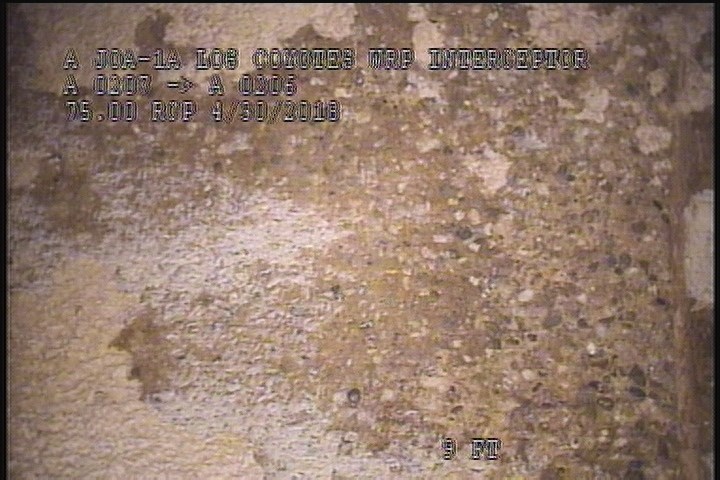

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • General Photograph

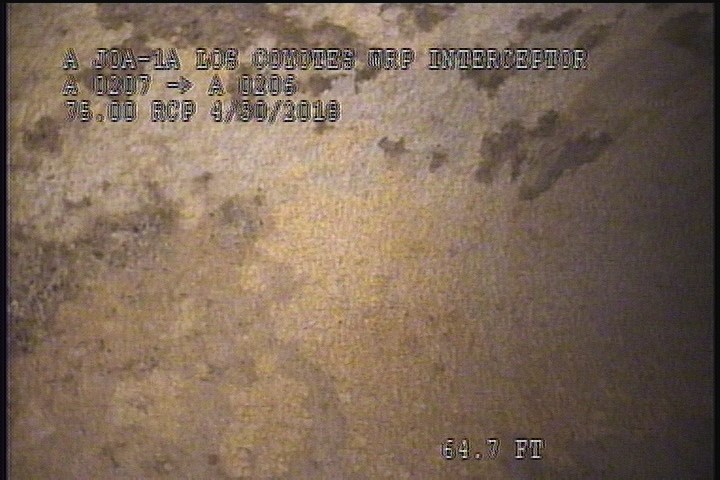

    64.7 ft. - General Photograph

  • General Photograph

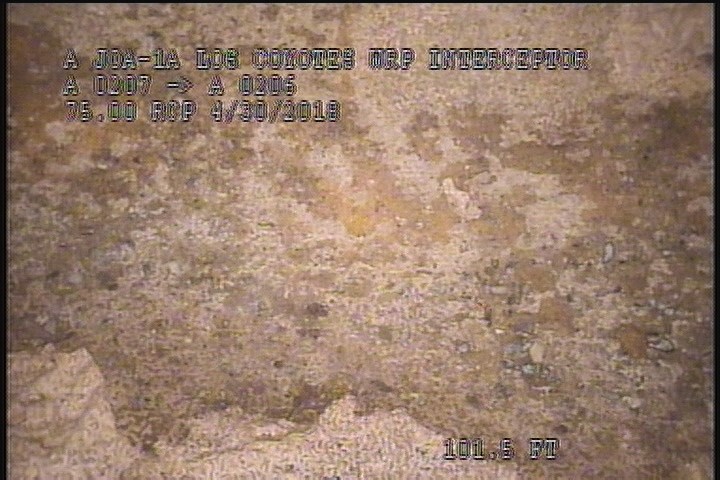

    101.5 ft. - General Photograph

All inspections of P08143Work order 0686843

Observations (16)

DistanceCodeObservation
147.1AMH1:26 PM
2SSS—
2SAV—
145.8SZ65% MAG
145.8SRVC—
145.8SAV—
0MWM—
0AMH12:57 PM
64.7MGP—
145.8SSS—
146MGOGrease Throughout The Reach (5%)
146MGOPeeling & Flaking Throughout The Reach
101.5MGP—
2SRVC—
0MWL—
2SZ65% MAG

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2018-04-30T12:55:51-07:00
