Wastewater/Activity/PacpInspection/1.0Apr 30, 2018, 04:05 PM
02 0204 _02 0203_4302018_100059.mp4
- Date
- 04/30/2018
- W/O
- 0686843
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00323
- PipeID
- P08140
- Time
- 9:05 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7697
- Sewer Name
- A JOA-1A LOS COYOTES WRP INTERCEPTOR
- City
- DOWNEY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 29
- Purpose
- Routine Assessment
- Project
- 20180427DF_JOA_1A_LOS_COYOTES_WRP_INTERCEPTOR
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 75 in.
- Upstream MH
- A 0204
- Downstream MH
- A 0203
- Dir. of Survey
- Downstream
- Length Surveyed
- 1031 ft.
- Total Length
- 1031 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (7)

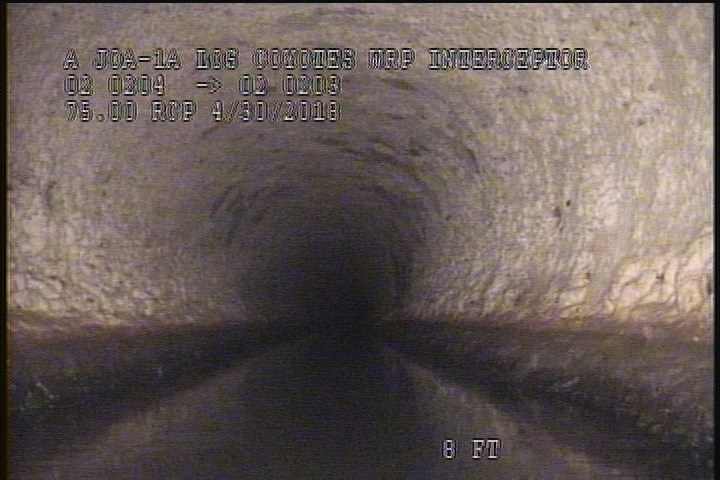

2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 80% MAG

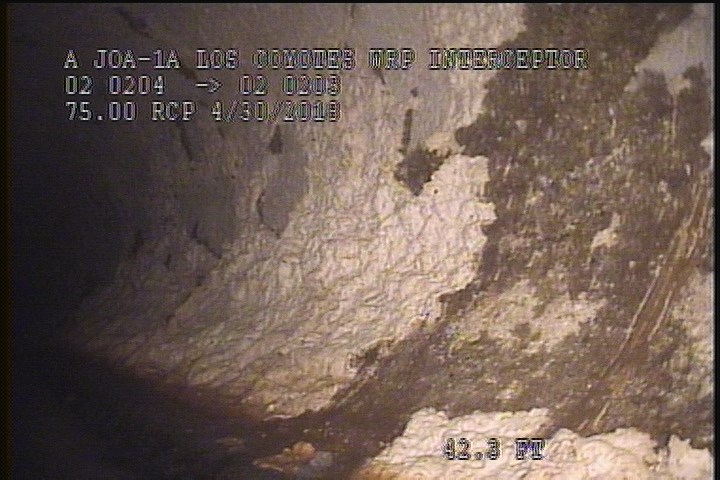

42.3 ft. - General Photograph

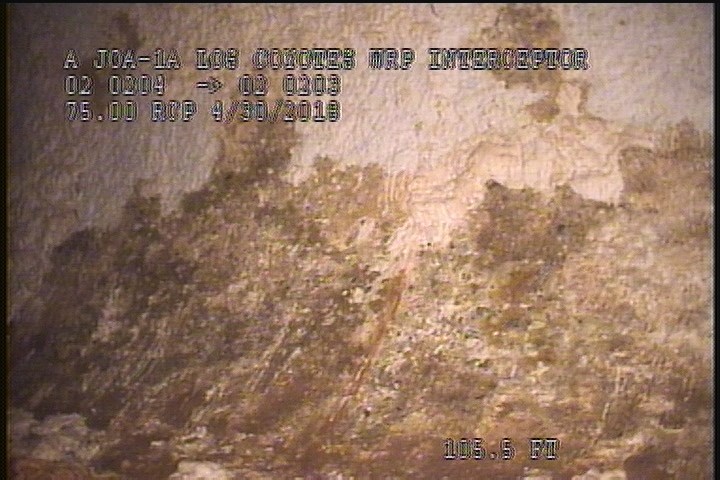

105.5 ft. - General Photograph

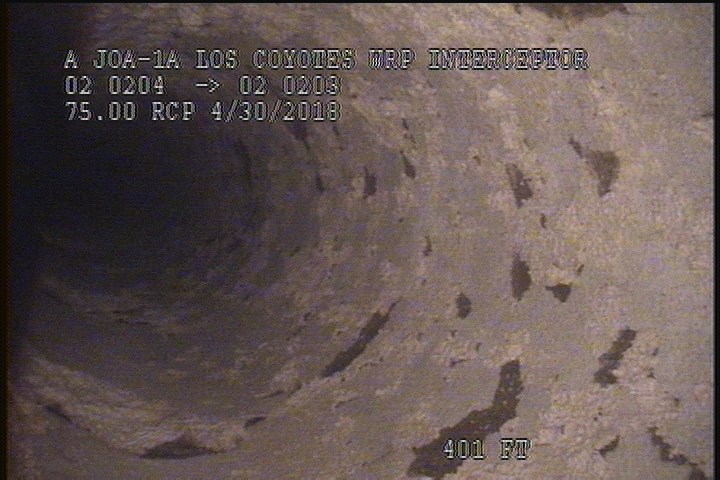

401 ft. - General Photograph

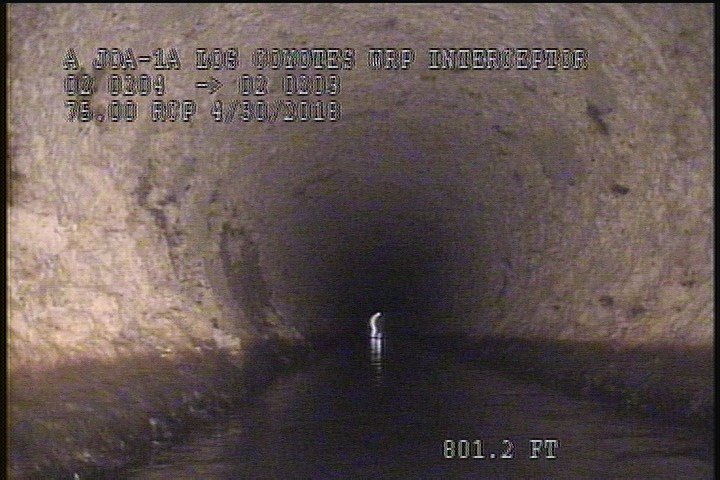

801.2 ft. - General Photograph

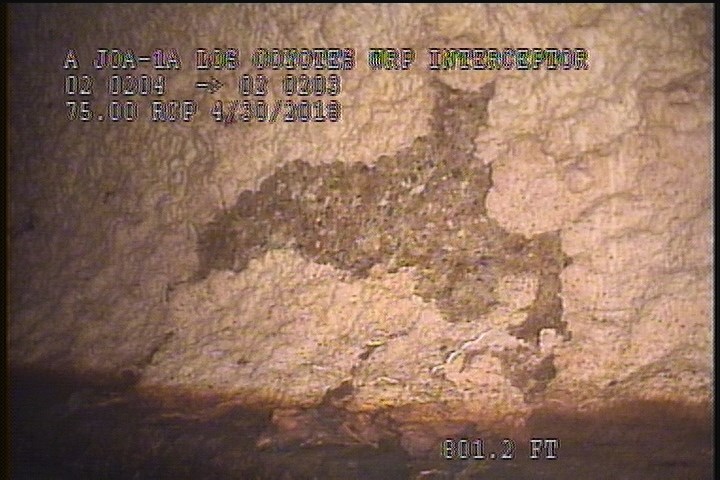

801.2 ft. - General Photograph

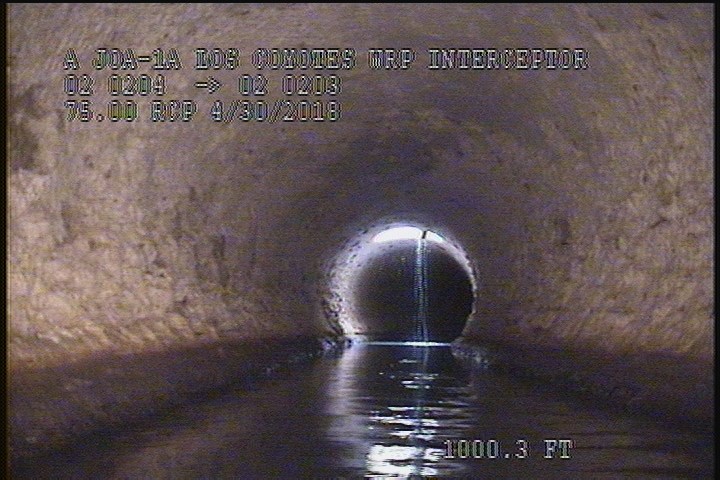

1000.3 ft. - General Photograph
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 1000.3 | MGP | — |
| 42.3 | MGP | — |
| 801.2 | MGP | — |
| 401 | MGP | — |
| 1030 | MGO | Grease Throughout The Reach (5%) |
| 2 | SZ | 80% MAG |
| 801.2 | MGP | — |
| 0 | MWM | — |
| 1031 | AMH | 10:49 AM |
| 105.5 | MGP | — |
| 1028.4 | SZ | 80% MAG |
| 1030 | MGO | Peeling & Flaking Throughout The Reach |
| 0 | AMH | 9:09 AM |
Properties (3)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-04-30T09:05:29-07:00
