Wastewater/Activity/PacpInspection/1.0Apr 26, 2018, 06:15 PM
02 1898_02 1897_4262018_124530.mp4
- Date
- 04/26/2018
- W/O
- PENDING
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00247
- PipeID
- P04404
- Time
- 11:15 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Jetting
- Media Label
- G7694
- Sewer Name
- 02 DOUGLAS AVENUE RELIEF TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 08
- Purpose
- Maintenance Related
- Project
- 20180426DF_DOUGLAS_AVENUE_RELIEF_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Upstream MH
- 02 1897
- Downstream MH
- 02 1898
- Dir. of Survey
- Upstream
- Length Surveyed
- 110.5 ft.
- Total Length
- 110.5 ft.
- Structural Index
- 2
- Structural Quick
- 5123
- Structural Rating
- 12
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (7)

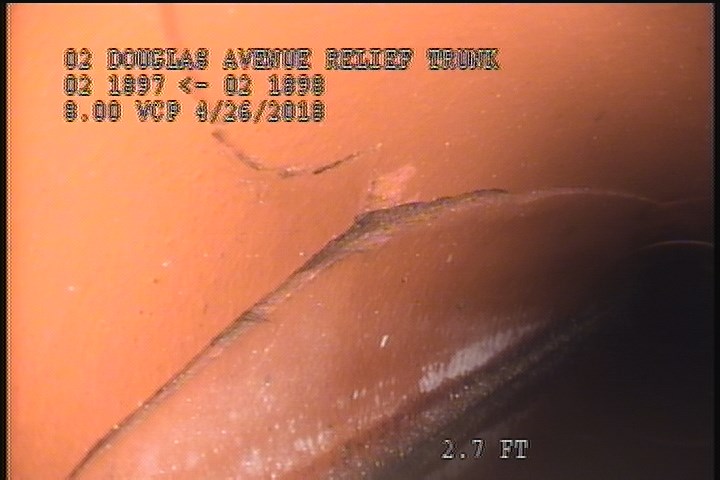

2.7 ft. - Broken, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

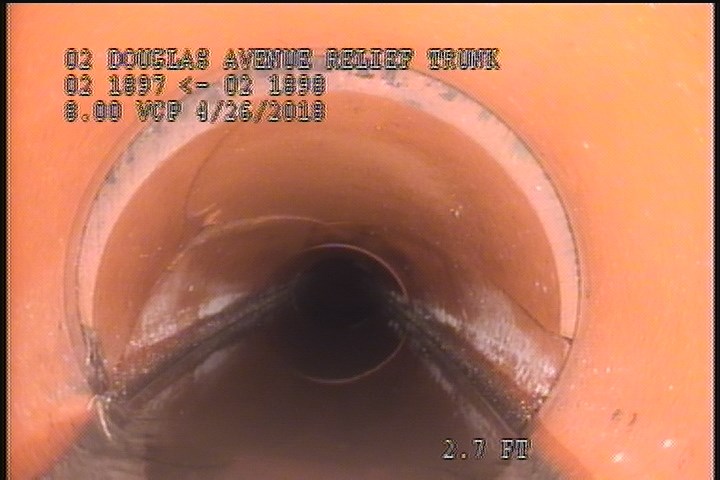

2.7 ft. - Joint Offset Medium - 1"

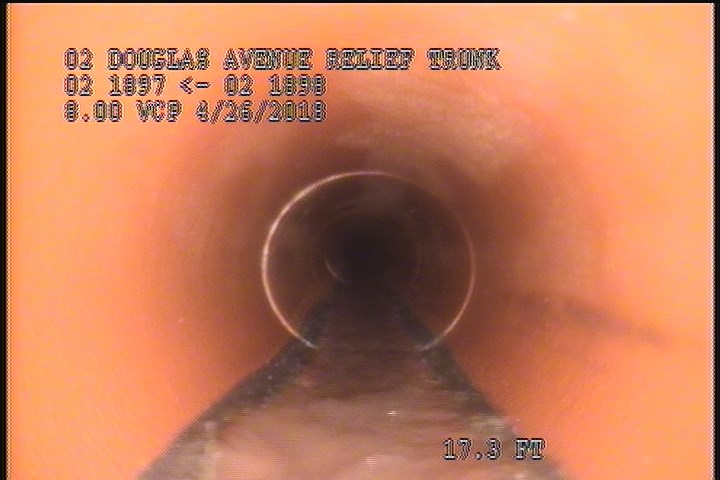

11.1 ft. - Water Level, Sag in pipe, 15 %of cross sectional area, Finish

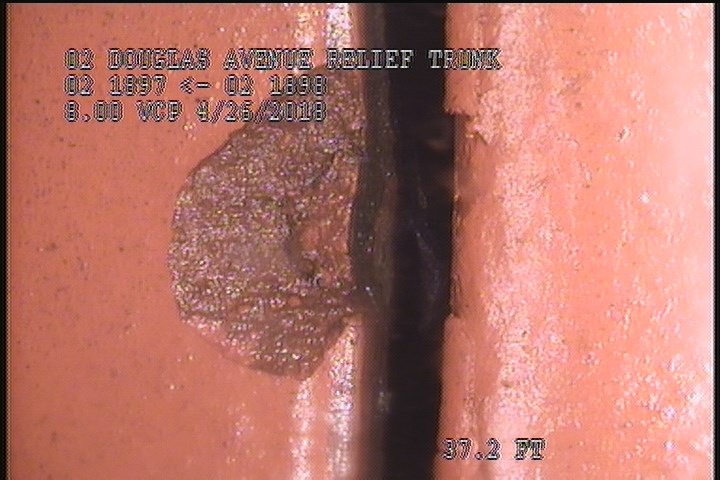

37.2 ft. - General Photograph - CHIPPING @ 12 O'CLOCK

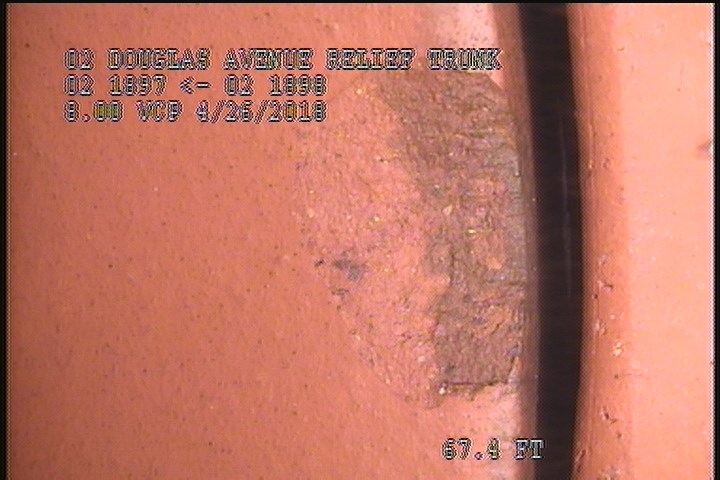

67.4 ft. - General Photograph - CHIPPING @ 2 O'CLOCK

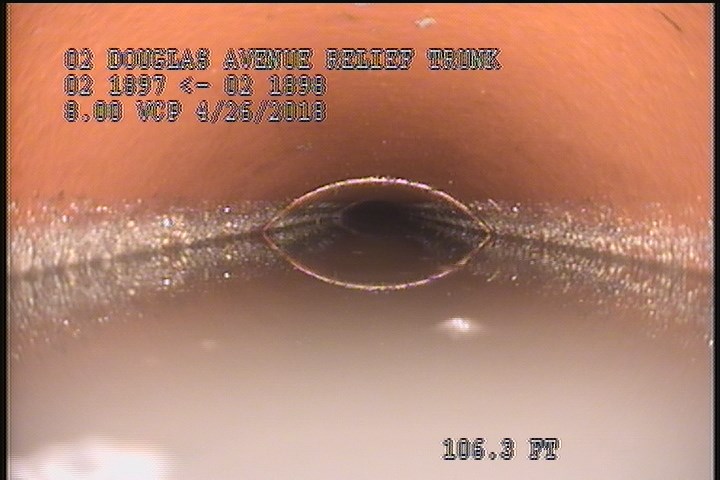

106.3 ft. - General Photograph

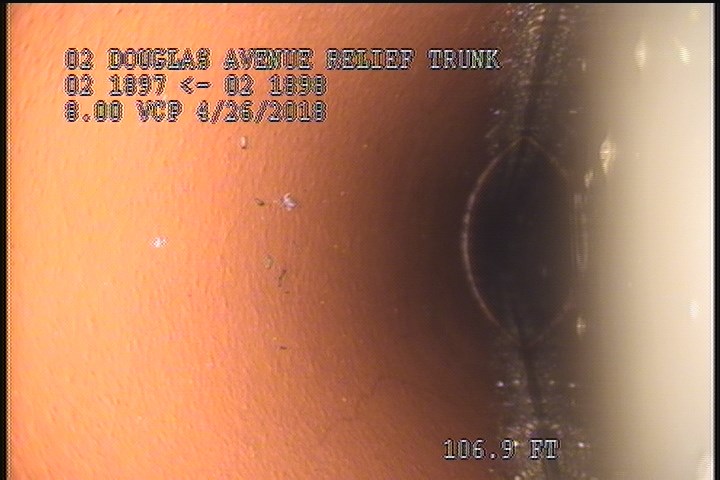

106.9 ft. - Water Level, Sag in pipe, 15 %of cross sectional area, Start
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 12:31 PM |
| 2.7 | B | — |
| 108.6 | SSS | — |
| 6.1 | B | — |
| 2 | MWLS | — |
| 0.1 | MWM | — |
| 2.7 | JOM | 1" |
| 37.2 | MGP | CHIPPING @ 12 O'CLOCK |
| 67.4 | MGP | CHIPPING @ 2 O'CLOCK |
| 106.3 | MGP | — |
| 106.9 | MWLS | — |
| 110.5 | MSA | HIGH WATER |
| 2 | MGO | Conn. @ Mh, 9 O' Clock. Active |
| 0.1 | MWL | — |
| 11.1 | MWLS | — |
| 2 | SSS | — |
| 109.9 | MWLS | — |
Properties (4)
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-04-26T11:15:57-07:00
- year_laid
- 19820504
