Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 13, 2018, 08:37 AM

  • 08 0031_08 0030 _13042018_020914.mp4

Date
04/13/2018
W/O
694025
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00016
PipeID
P00033
Time
1:37 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5529
Sewer Name
08 MAIN STREET TRUNK
City
LOS ANGELES
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
07
Purpose
Routine Assessment
Project
WO_694025_TV08116_APR2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
08 0031
Downstream MH
08 0030
Dir. of Survey
Downstream
Length Surveyed
320.3 ft.
Total Length
320.3 ft.
Structural Index
4
Structural Quick
5132
Structural Rating
11
O&M Index
3
O&M Quick
3C00
O&M Rating
60
Overall Index
3
Overall Quick
—
Overall Rating
71
Pipe schematic from manhole 08 0031 to 08 0030
MH: 08 0031MH: 08 0030downstream0 ft. AMH - Upstream Manhole, Survey Begins - 08 00310 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area8 ft. B - Broken, from 07 to 05 o'clock, within 8 inches of joint: YES8.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start8.1 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"57.2 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"104.5 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"155.8 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"202.4 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"222.7 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start - SLUDGE258.7 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"308.5 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"312.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish320.3 ft. AMH - Downstream Manhole, Survey Ends - 08 0030 ZOOMED IN320.3 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Finish

Observation photos (2)

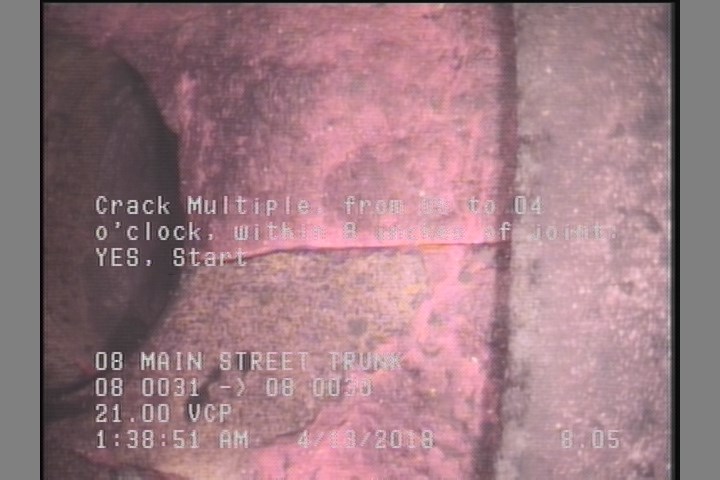

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    8.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

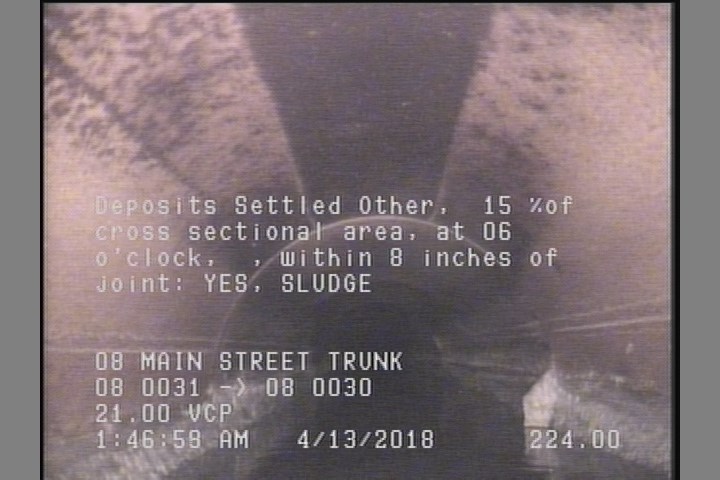

  • Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start - SLUDGE

    222.7 ft. - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start - SLUDGE

All inspections of P00033Work order 694025

Observations (16)

DistanceCodeObservation
0AMH08 0031
104.5TFC—
0MWM—
155.8TFC—
312.3CM—
57.2TFC—
8B—
258.7TF—
320.3AMH08 0030 ZOOMED IN
202.4TFC—
8.1CM—
0MWL—
222.7DSZSLUDGE
308.5TFC—
320.3DSZ—
8.1TFC—

Properties (4)

additional_info
SC358736
custom_field_two
2
customer
LACSD
datetime
2018-04-13T01:37:02-07:00
