Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 13, 2018, 05:39 AM

  • 08 0042_08 0041 _12042018_225322.mp4

Date
04/12/2018
W/O
694025
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00016
PipeID
P00044
Time
10:39 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5529
Sewer Name
08 MAIN STREET TRUNK
City
LOS ANGELES
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
04
Purpose
Routine Assessment
Project
WO_694025_TV08116_APR2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
08 0042
Downstream MH
08 0041
Dir. of Survey
Downstream
Length Surveyed
309.7 ft.
Total Length
309.7 ft.
Structural Index
3
Structural Quick
3J21
Structural Rating
164
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
164
Pipe schematic from manhole 08 0042 to 08 0041
MH: 08 0042MH: 08 0041downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 08 00420 ft. MWM - Water Mark, 20 %of cross sectional area13.5 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES16.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start19 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"71.2 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"122.5 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"170.3 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"221.5 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"272.9 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"285.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish309.7 ft. AMH - Downstream Manhole, Survey Ends - 08 0041

Observation photos (2)

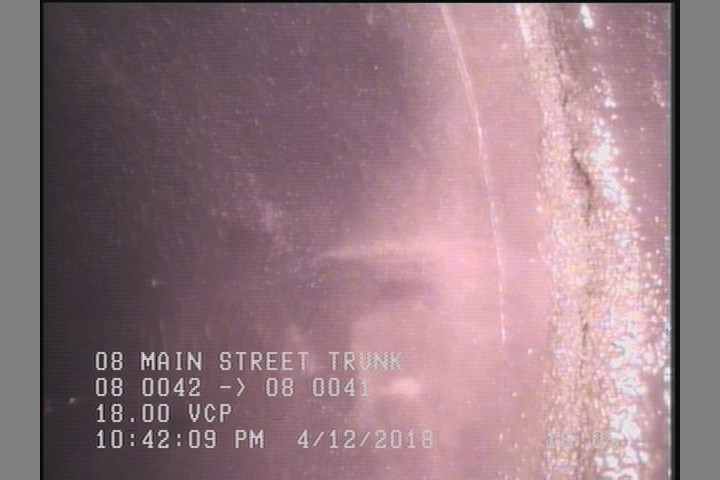

  • Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

    13.5 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    16.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P00044Work order 694025

Observations (13)

DistanceCodeObservation
19TFA—
285.6CM—
122.5TFC—
272.9TFC—
0MWL—
0AMH08 0042
221.5TFC—
71.2TFC—
13.5CL—
16.1CM—
309.7AMH08 0041
0MWM—
170.3TF—

Properties (4)

additional_info
SC358736
custom_field_two
3
customer
LACSD
datetime
2018-04-12T22:39:31-07:00
