Wastewater/Activity/PacpInspection/1.0Apr 10, 2018, 10:27 AM
08 0089_08 0088 _10042018_033230.mp4
- Date
- 04/10/2018
- W/O
- 694025
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00016
- PipeID
- P00117
- Time
- 3:27 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5526
- Sewer Name
- 08 MAIN STREET TRUNK
- City
- LOS ANGELES
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- WO_694025_TV08116_APR2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 08 0089
- Downstream MH
- 08 0088
- Dir. of Survey
- Downstream
- Length Surveyed
- 53.2 ft.
- Total Length
- 53.2 ft.
- Structural Index
- 3
- Structural Quick
- 3300
- Structural Rating
- 9
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 13
Observation photos (2)

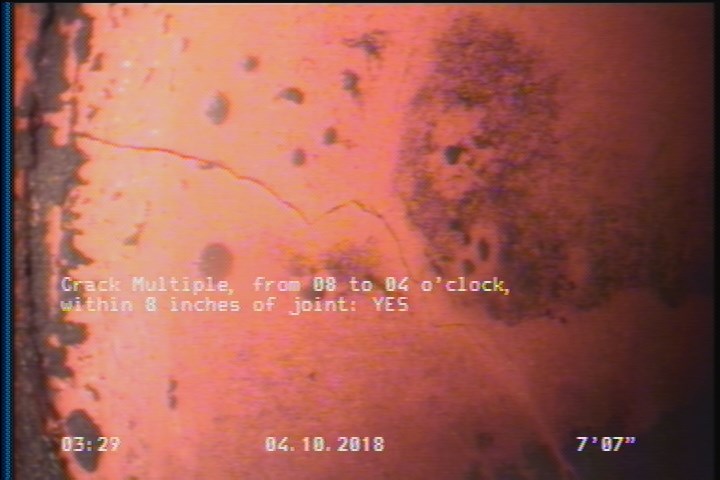

7.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

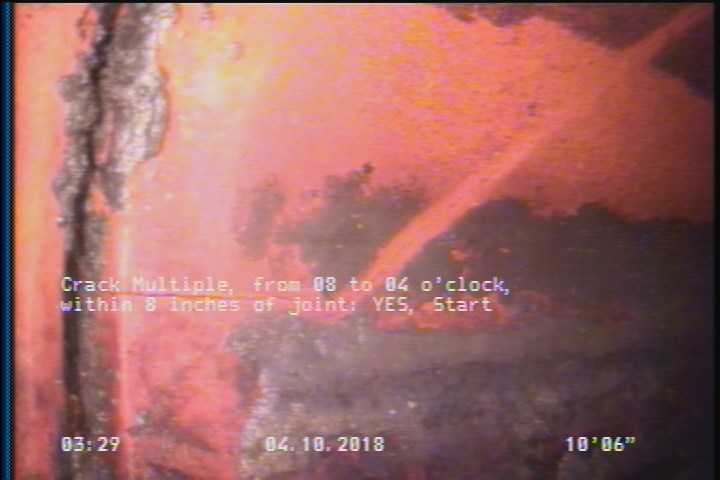

10.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 2.8 | TFC | — |
| 0 | MWM | — |
| 51.2 | CM | — |
| 0 | AMH | 08 0089 |
| 53.2 | MGO | CAPPED CONNECTION AT 9 O' CLOCK AT |
| 53.2 | AMH | 08 0088 |
| 53.2 | MGO | CAPPED CONNECTION AT 3 O' CLOCK AT MH |
| 0 | MWL | — |
| 7.6 | CM | — |
| 0 | MGO | SERVICE CONNECTION AT 9 O'CLOCK AT MH |
| 10.5 | CM | — |
Properties (4)
- additional_info
- SC358733
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-04-10T03:27:19-07:00
