Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 28, 2017, 12:10 PM

  • 02 0306_02 0305_6282017_051300.mp4

Date
06/28/2017
W/O
0647471
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00251
PipeID
P02620
Time
5:10 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0578
Sewer Name
02 DOWNEY-BELLFLOWER TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
19A
Purpose
Routine Assessment
Project
20170626MDM_DOWNEY_BELLFLOWER_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
02 0306
Downstream MH
02 0305
Dir. of Survey
Downstream
Length Surveyed
156.7 ft.
Total Length
156.7 ft.
Structural Index
2
Structural Quick
4232
Structural Rating
48
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
48
Pipe schematic from manhole 02 0306 to 02 0305
MH: 02 0306MH: 02 0305downstream0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 5:10AM0 ft. MWL - Water Level, 15 %of cross sectional area6.2 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - SLIGHT27.1 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - HAIRLINE31.1 ft. FC - Fracture Circumferential, from 11 to 02 o'clock, within 8 inches of joint: YES - SL31.1 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H60.8 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Capped63.4 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SL66.3 ft. MGO - General Observation - WHITE BUILD UP ON PIPE66.3 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H71 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SL71 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL79 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H83.2 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - SL83.2 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H91.3 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - SL111.7 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES - SL119.7 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - H128.1 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - H128.1 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - H131.8 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H131.8 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H136.2 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - H144.1 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - H152.1 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES - SL156.4 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active156.7 ft. AMH - Downstream Manhole, Survey Ends - 5:30AM

Observation photos (3)

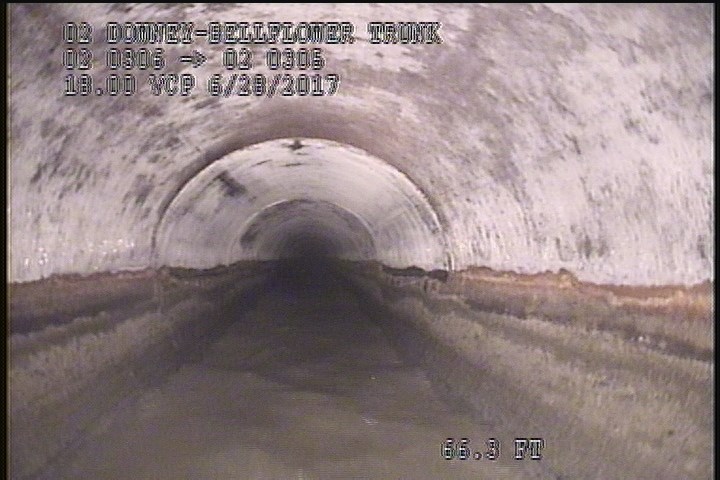

  • General Observation - WHITE BUILD UP ON PIPE

    66.3 ft. - General Observation - WHITE BUILD UP ON PIPE

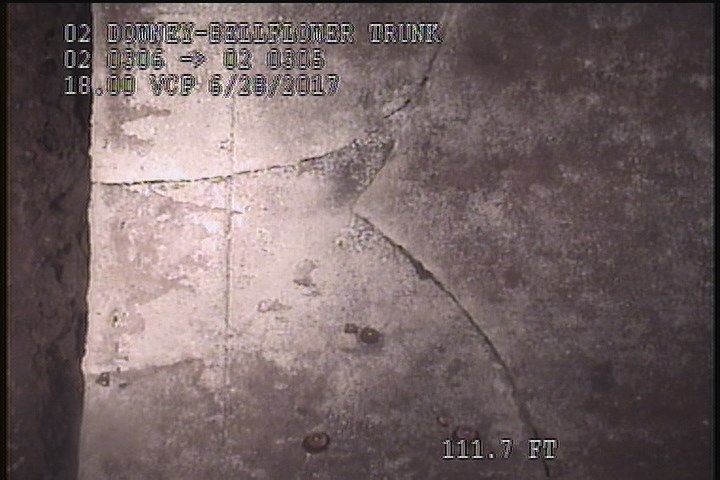

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES - SL

    111.7 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES - SL

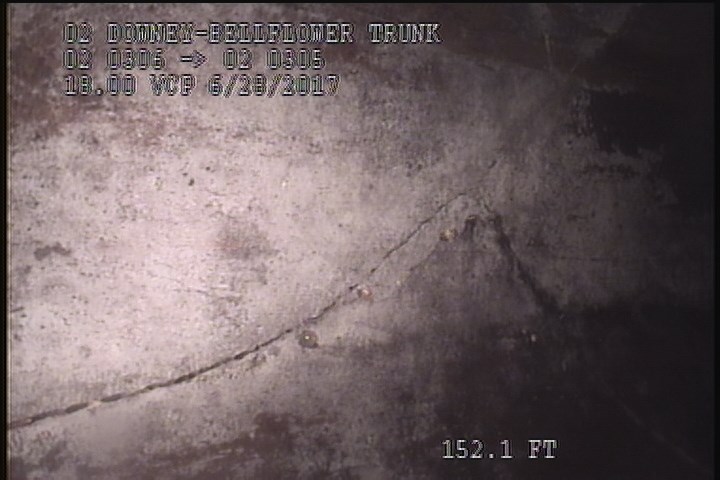

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES - SL

    152.1 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES - SL

All inspections of P02620Work order 0647471

Observations (28)

DistanceCodeObservation
111.7FMSL
0MWM—
128.1FCH
152.1FMSL
79FCH
83.2FCSL
60.8TFCCapped
131.8FLH
31.1FCSL
0AMH5:10AM
136.2FLH
71FCSL
27.1FCHAIRLINE
131.8FCH
66.3MGOWHITE BUILD UP ON PIPE
71FCSL
128.1FCH
144.1FCH
63.4FCSL
31.1FCH
0MWL—
119.7FCH
83.2FCH
66.3FCH
156.4MGOConn. @ Mh, 3 O' Clock. Active
156.7AMH5:30AM
6.2FCSLIGHT
91.3FCSL

Properties (4)

custom_field_three
SLIGHT FRACTURES
custom_field_two
3
customer
LACSD
datetime
2017-06-28T05:10:12-07:00
