Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 30, 2018, 05:56 AM

  • 15 1122_15 1121 _29032018_231230.mp4

Date
03/29/2018
W/O
691318
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00615
PipeID
P12882
Time
10:56 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5515
Sewer Name
15 MERCED TRUNK, SECTION 2
City
SOUTH EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
28
Purpose
Routine Assessment
Project
WO_691318_TV15100_MAR2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
15 1122
Downstream MH
15 1121
Dir. of Survey
Downstream
Length Surveyed
214.9 ft.
Total Length
214.9 ft.
Structural Index
2
Structural Quick
2200
Structural Rating
4
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 15 1122 to 15 1121
MH: 15 1122MH: 15 1121downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 15 11220 ft. MWM - Water Mark, 30 %of cross sectional area9.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"17.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"25 ft. TB - Tap Break-In, at 03 o'clock, -, within 8 inches of joint: NO, 6"26.2 ft. TB - Tap Break-In, at 03 o'clock, -, within 8 inches of joint: NO, 6"27.4 ft. TB - Tap Break-In, at 03 o'clock, -, within 8 inches of joint: NO, 6"41.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"53 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"69.2 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES72.5 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES85.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"106.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"118.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"159.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"195.7 ft. TS - Tap Saddle, at 02 o'clock, -, within 8 inches of joint: NO, 6"214 ft. MGO - General Observation - GHOUT THE REACH, FROM 03 TO 09 O'CLOCK, 5%214.8 ft. MGO - General Observation - SERVICE CONNECTION AT 3 O' CLOCK AT MH214.8 ft. MGO - General Observation - SERVICE CONNECTION AT 9 O'CLOCK AT MH214.9 ft. AMH - Downstream Manhole, Survey Ends - 15 1121

Observation photos (3)

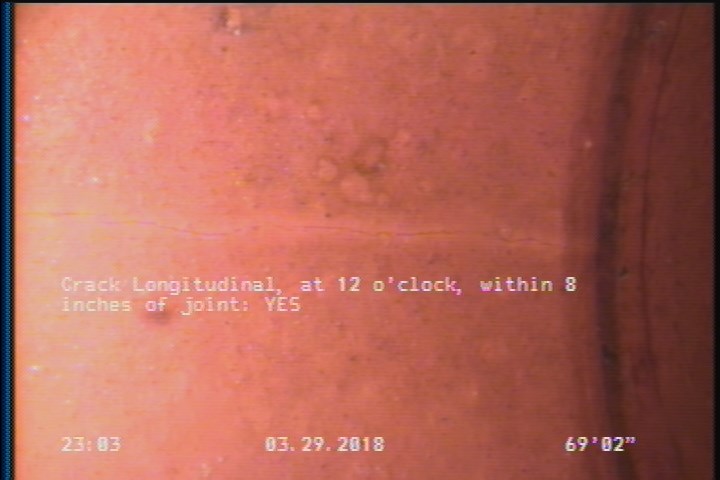

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    69.2 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

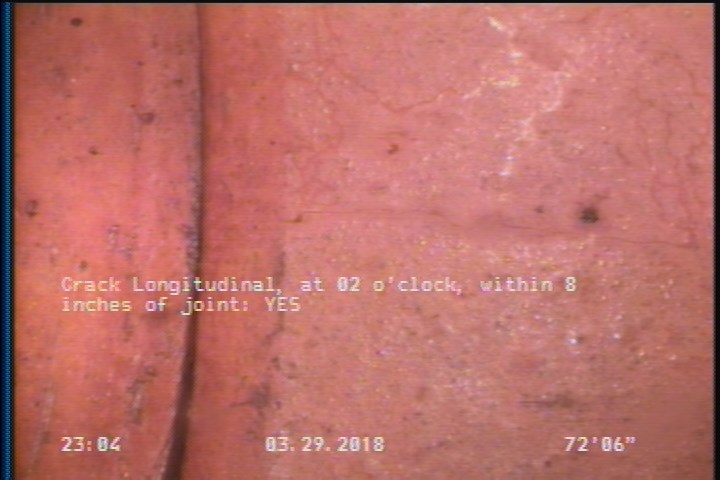

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    72.5 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

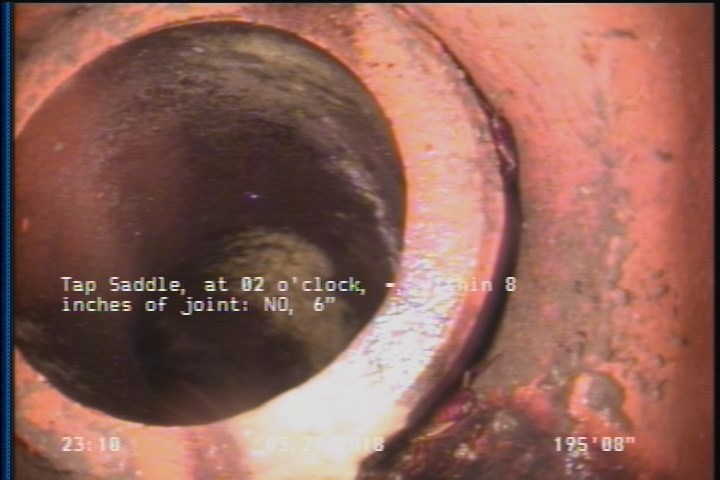

  • Tap Saddle, at 02 o'clock, -, within 8 inches of joint: NO, 6"

    195.7 ft. - Tap Saddle, at 02 o'clock, -, within 8 inches of joint: NO, 6"

All inspections of P12882Work order 691318

Observations (21)

DistanceCodeObservation
26.2TB—
27.4TB—
72.5CL—
214MGOGHOUT THE REACH, FROM 03 TO 09 O'CLOCK, 5%
0MWL—
9.1TF—
85.7TFC—
195.7TS—
214.8MGOSERVICE CONNECTION AT 3 O' CLOCK AT MH
0AMH15 1122
106.4TFC—
214.9AMH15 1121
69.2CL—
159.8TF—
17.9TF—
214.8MGOSERVICE CONNECTION AT 9 O'CLOCK AT MH
53TF—
25TB—
118.2TF—
0MWM—
41.3TF—

Properties (4)

additional_info
SC358721
custom_field_two
3
customer
LACSD
datetime
2018-03-29T22:56:23-07:00
