Wastewater/Activity/PacpInspection/1.0Mar 30, 2018, 10:08 AM
15 1115_15 1114 _30032018_031705.mp4
- Date
- 03/30/2018
- W/O
- 691318
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00615
- PipeID
- P12875
- Time
- 3:08 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5515
- Sewer Name
- 15 MERCED TRUNK, SECTION 2
- City
- SOUTH EL MONTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 28
- Purpose
- Routine Assessment
- Project
- WO_691318_TV15100_MAR2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 15 1114
- Downstream MH
- 15 1115
- Dir. of Survey
- Upstream
- Length Surveyed
- 31.3 ft.
- Total Length
- 31.3 ft.
- Structural Index
- 2
- Structural Quick
- 3122
- Structural Rating
- 7
- O&M Index
- 3
- O&M Quick
- 3100
- O&M Rating
- 3
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (3)

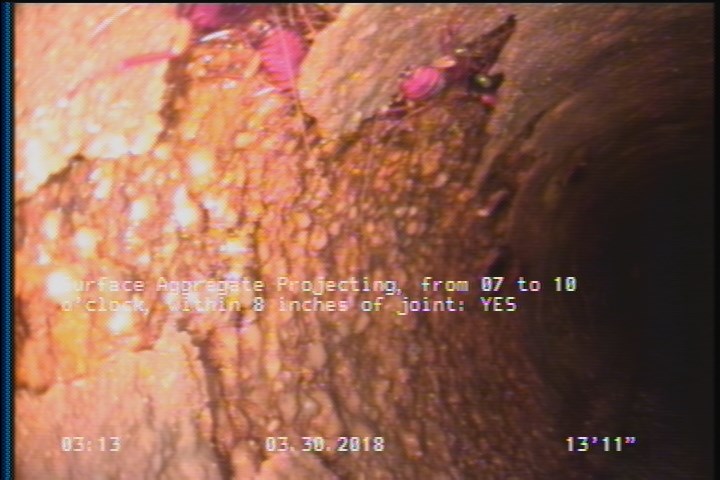

13.9 ft. - Surface Aggregate Projecting, from 07 to 10 o'clock, within 8 inches of joint: YES

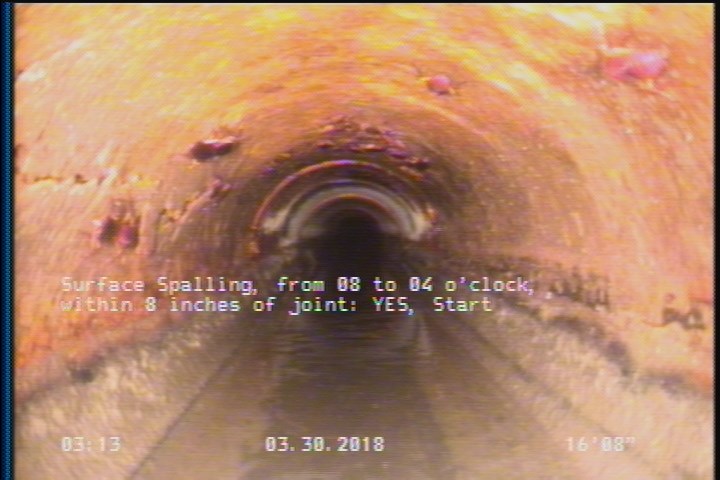

16.6 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

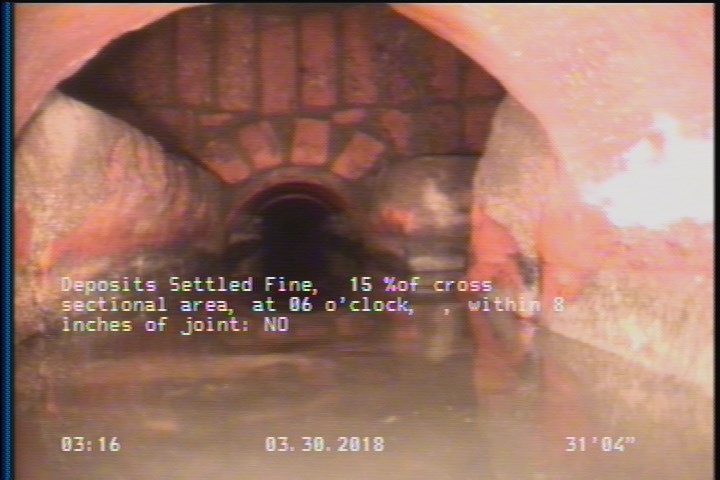

31.3 ft. - Deposits Settled Fine, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 31.3 | DSF | — |
| 31.3 | AMH | 15 1115 |
| 20 | MMC | — |
| 13.9 | SAP | — |
| 0 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
| 7 | MMC | — |
| 0 | MWM | — |
| 0 | AMH | 15 1114 |
| 0 | MWL | — |
| 31.3 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
| 19.9 | SSS | — |
| 16.6 | SSS | — |
Properties (4)
- additional_info
- SC358721
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-03-30T03:08:10-07:00
