Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 30, 2018, 05:29 AM

  • 15 1123_15 1122 _29032018_225553.mp4

Date
03/29/2018
W/O
691318
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00615
PipeID
P12883
Time
10:29 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5515
Sewer Name
15 MERCED TRUNK, SECTION 2
City
SOUTH EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
28
Purpose
Routine Assessment
Project
WO_691318_TV15100_MAR2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
15 1123
Downstream MH
15 1122
Dir. of Survey
Downstream
Length Surveyed
243.1 ft.
Total Length
243.1 ft.
Structural Index
2
Structural Quick
2200
Structural Rating
4
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 15 1123 to 15 1122
MH: 15 1123MH: 15 1122downstream0 ft. AMH - Upstream Manhole, Survey Begins - 15 11230 ft. MWL - Water Level, 30 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MGO - General Observation - SERVICE CONNECTION AT 9 O'CLOCK AT MH12.4 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES15.6 ft. CL - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES34.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"73.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"118.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"151.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"177.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"186.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"206.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"243 ft. MGO - General Observation - GHOUT THE REACH, FROM 03 TO 09 O'CLOCK, 5%243.1 ft. AMH - Downstream Manhole, Survey Ends - 15 1122

Observation photos (2)

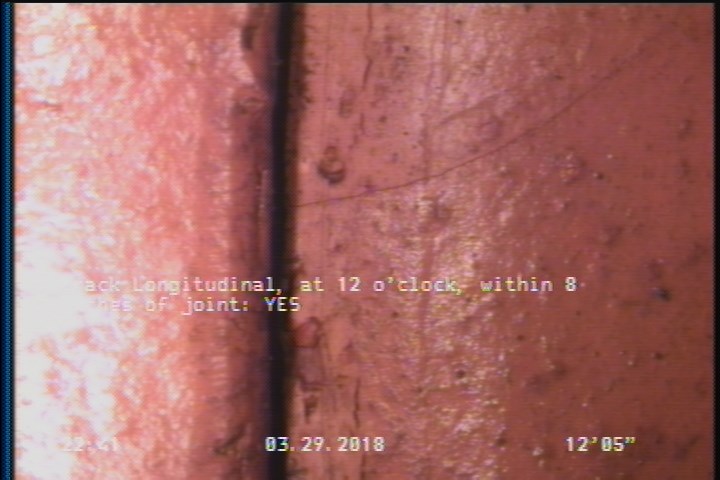

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    12.4 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

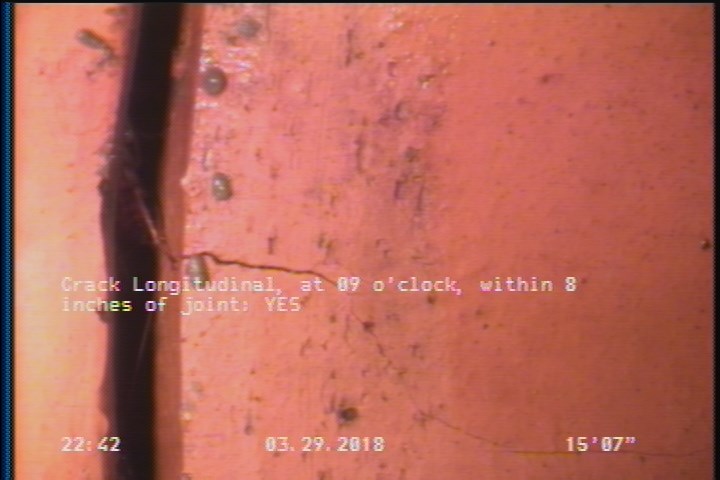

  • Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

    15.6 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES

All inspections of P12883Work order 691318

Observations (15)

DistanceCodeObservation
186.3TF—
151.1TF—
15.6CL—
177.7TF—
34.6TFC—
243.1AMH15 1122
0AMH15 1123
12.4CL—
0MWL—
0MWM—
0MGOSERVICE CONNECTION AT 9 O'CLOCK AT MH
73.5TF—
118.2TFC—
243MGOGHOUT THE REACH, FROM 03 TO 09 O'CLOCK, 5%
206.9TFC—

Properties (4)

additional_info
SC358721
custom_field_two
3
customer
LACSD
datetime
2018-03-29T22:29:38-07:00
