Wastewater/Activity/PacpInspection/1.0Apr 10, 2018, 05:47 AM
05 1294_05 1293 _09042018_230733.mp4
- Date
- 04/09/2018
- W/O
- 690289
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00453
- PipeID
- P06507
- Time
- 10:47 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5523
- Sewer Name
- 05 GRAMERCY PLACE TRUNK, SECTION 1
- City
- GARDENA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_690289_TV05181_MAR2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- 05 1294
- Downstream MH
- 05 1293
- Dir. of Survey
- Downstream
- Length Surveyed
- 456 ft.
- Total Length
- 456 ft.
- Structural Index
- 3
- Structural Quick
- 5131
- Structural Rating
- 10
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (3)

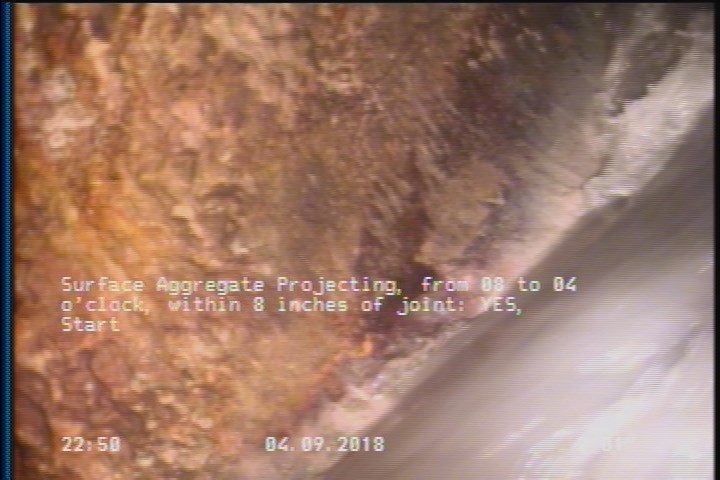

2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

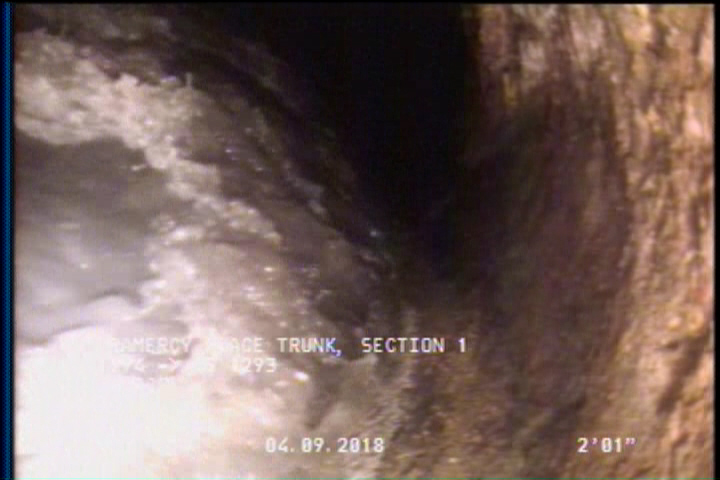

2.1 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

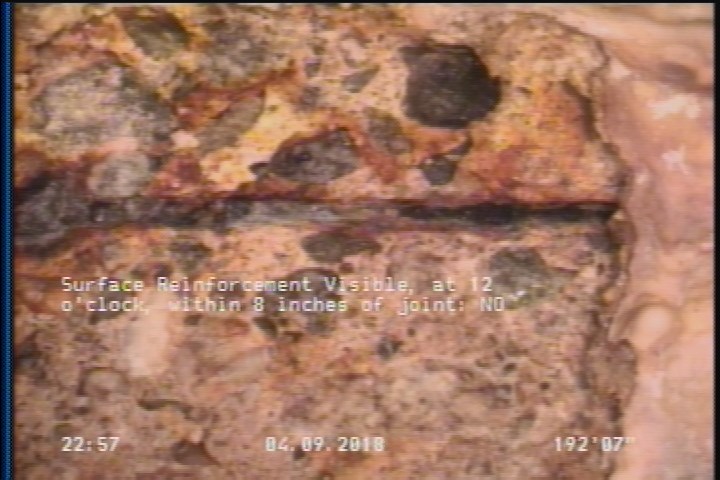

192.6 ft. - Surface Reinforcement Visible, at 12 o'clock, within 8 inches of joint: NO
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 456 | SAP | — |
| 2.1 | SAP | — |
| 456 | SSS | — |
| 0 | MWL | — |
| 0 | MGO | SERVICE CONNECTION AT 6 O' CLOCK AT MH |
| 456 | AMH | 05 1293 |
| 0 | MWM | — |
| 2.2 | MGO | MAG COAT |
| 0 | AMH | 05 1294 |
| 2.1 | SSS | — |
| 456 | MGO | MAG COAT ENDS |
| 192.6 | SRV | — |
| 0 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
Properties (4)
- additional_info
- SC358730
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-04-09T22:47:27-07:00
