Wastewater/Activity/PacpInspection/1.0Dec 27, 2014, 08:44 AM
30 0334_30 0333_20141227_004550.mp4
- Date
- 12/27/2014
- W/O
- 480747
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00879
- PipeID
- P17985
- Time
- 12:44 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K1940
- Sewer Name
- 30 SOUTH BAY CITIES MAIN EXT #3 RELIEF TRUNK
- City
- REDONDO BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 30
- Page No.
- 06
- Purpose
- Routine Assessment
- Project
- WO_480747_TV30037_2014DECEMBER
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Shape
- Other
- Height
- 21 in.
- Upstream MH
- 30 0334
- Downstream MH
- 30 0333
- Dir. of Survey
- Downstream
- Length Surveyed
- 426.9 ft.
- Total Length
- 426.9 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (5)

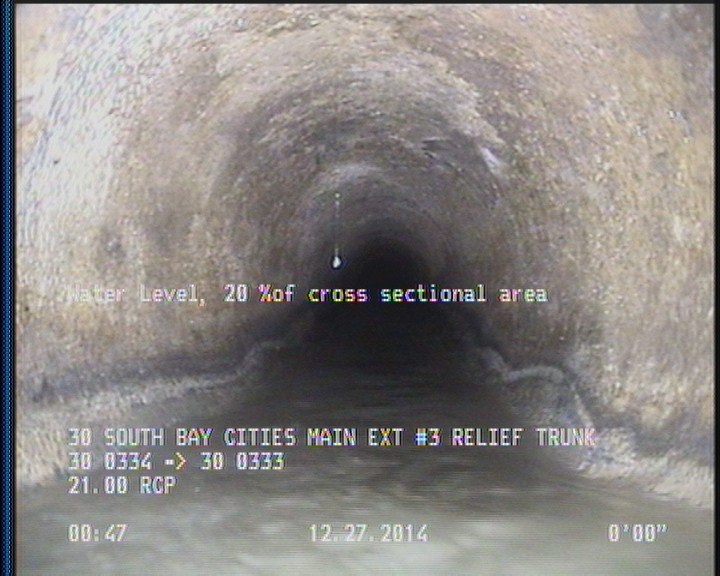

0 ft. - Water Level, 20 %of cross sectional area

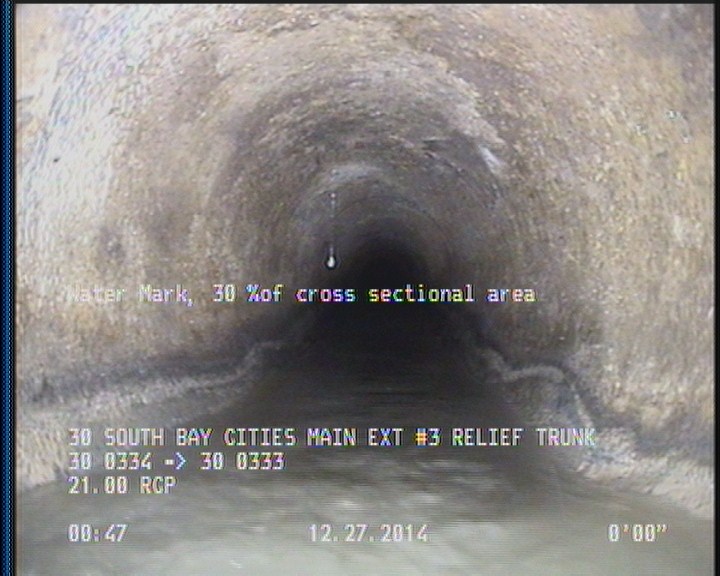

0 ft. - Water Mark, 30 %of cross sectional area
0 ft. - Upstream Manhole, Survey Begins - 30 0334

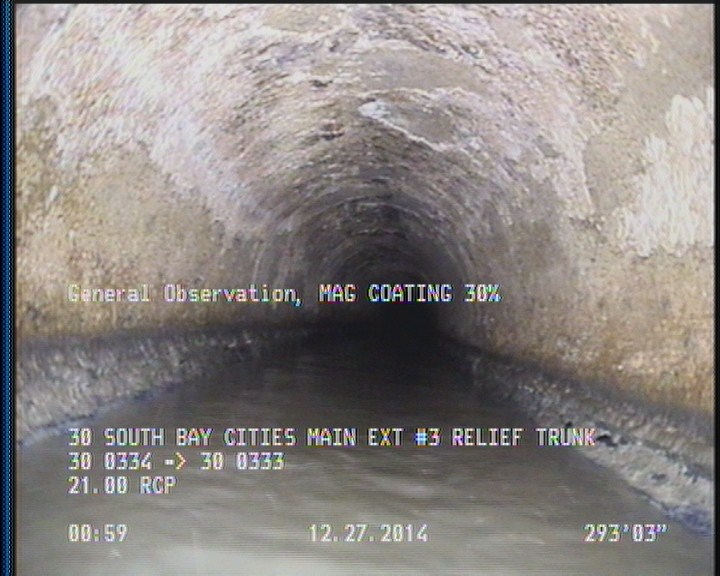

293.2 ft. - General Observation - MAG COATING 30%
426.9 ft. - Downstream Manhole, Survey Ends - 30 0333
Observations (5)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 426.9 | AMH | 30 0333 |
| 0 | MWM | — |
| 293.2 | MGO | MAG COATING 30% |
| 0 | AMH | 30 0334 |
Properties (5)
- additional_info
- SC190177
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2014-12-27T00:44:55-08:00
- year_laid
- 19781025
