Wastewater/Activity/PacpInspection/1.0Dec 24, 2014, 11:42 AM
30 0339_30 0338_20141224_034300.mp4
- Date
- 12/24/2014
- W/O
- 480747
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00879
- PipeID
- P17990
- Time
- 3:42 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K1939
- Sewer Name
- 30 SOUTH BAY CITIES MAIN EXT #3 RELIEF TRUNK
- City
- REDONDO BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 30
- Page No.
- 06
- Purpose
- Routine Assessment
- Project
- WO_480747_TV30037_2014DECEMBER
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Shape
- Other
- Height
- 21 in.
- Upstream MH
- 30 0339
- Downstream MH
- 30 0338
- Dir. of Survey
- Downstream
- Length Surveyed
- 476.4 ft.
- Total Length
- 476.4 ft.
- Structural Index
- 3
- Structural Quick
- 3B00
- Structural Rating
- 39
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 39
Observation photos (7)

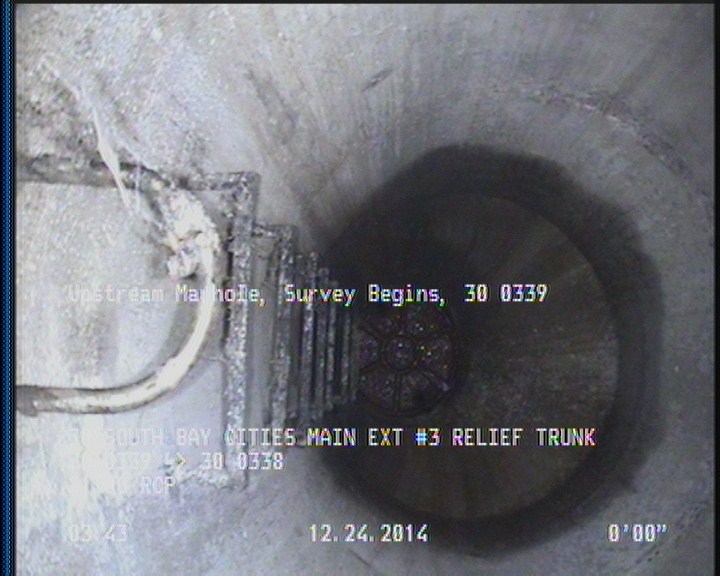

0 ft. - Upstream Manhole, Survey Begins - 30 0339
0 ft. - Water Mark, 40 %of cross sectional area

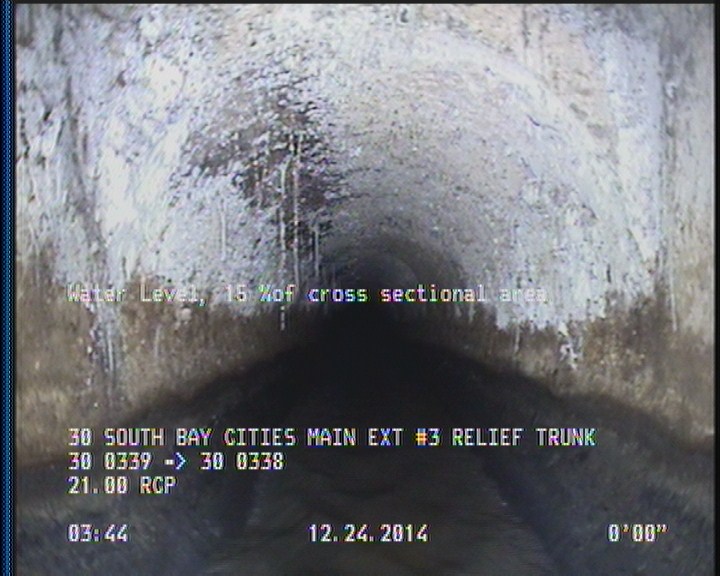

0 ft. - Water Level, 15 %of cross sectional area

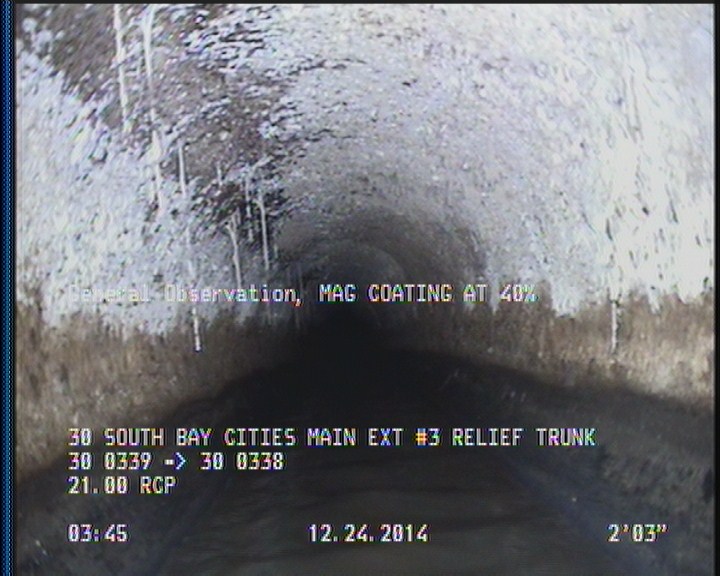

2.3 ft. - General Observation - MAG COATING AT 40%

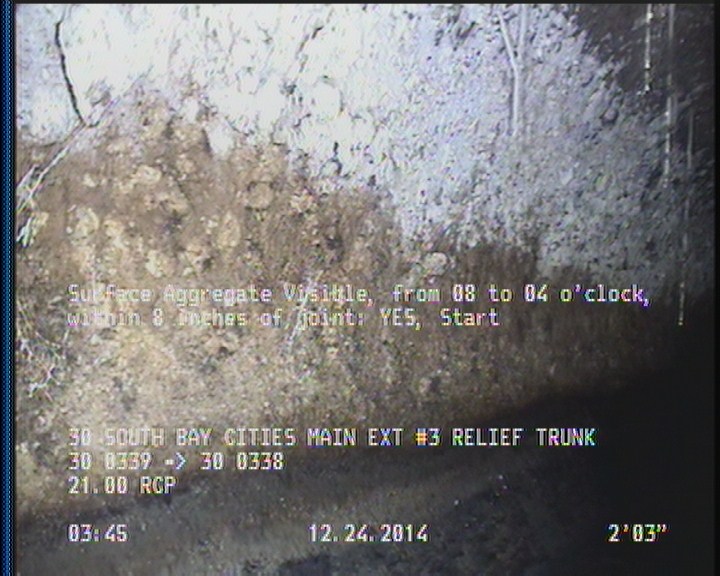

2.3 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

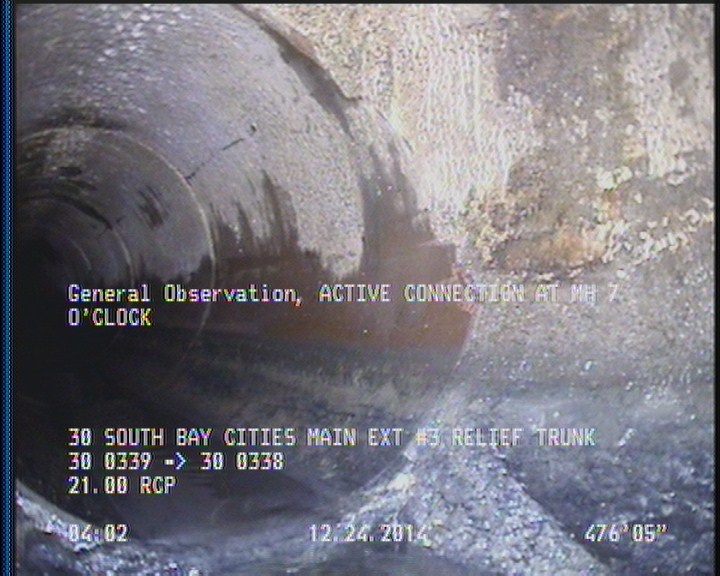

476.4 ft. - General Observation - ACTIVE CONNECTION AT MH 7 O'CLOCK

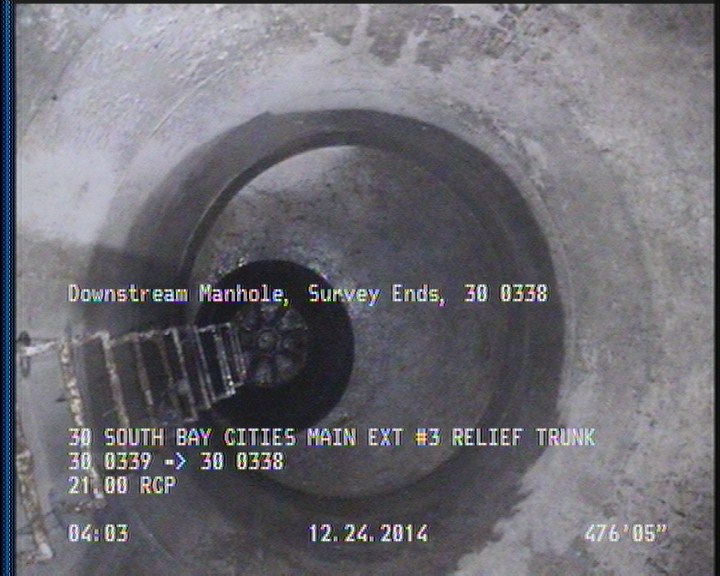

476.4 ft. - Downstream Manhole, Survey Ends - 30 0338
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 30 0339 |
| 476.4 | MGO | ACTIVE CONNECTION AT MH 7 O'CLOCK |
| 65.8 | SAV | — |
| 2.3 | MGO | MAG COATING AT 40% |
| 0 | MWM | — |
| 476.4 | AMH | 30 0338 |
| 2.3 | SAV | — |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC190176
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2014-12-24T03:42:03-08:00
- year_laid
- 19781025
