Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 6, 2017, 10:18 AM
Date
11/06/2017
W/O
0671874
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z01180
PipeID
P01460
Time
2:18 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6860
Sewer Name
G JOINT OUTFALL G - UNIT 8
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
19
Purpose
Routine assessment
Project
JOINT_OUTFALL_G_UNIT_8
Material
RCP-CTL
Shape
Circular
Height
36 in.
Upstream MH
G 0137
Downstream MH
G 0136
Dir. of Survey
Downstream
Length Surveyed
330.6 ft.
Total Length
330.6 ft.
Structural Index
3
Structural Quick
3M00
Structural Rating
204
O&M Index
5
O&M Quick
5100
O&M Rating
5
Overall Index
3
Overall Quick
—
Overall Rating
209
Pipe schematic from manhole G 0137 to G 0136
MH: G 0137MH: G 0136downstream0 ft. MGO - General Observation - MH CONN 3:00 STUB0 ft. MWL - Water Level, 70 %of cross sectional area0 ft. MWM - Water Mark, 80 %of cross sectional area0 ft. MGO - General Observation - MH CONN 9:00 STUB0 ft. AMH - Upstream Manhole, Survey Begins - 4:00AM2 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG AREAS OF MISSING TILES2 ft. MGO - General Observation - MAG COAT 70% START 10:00 TO 2:002 ft. MGO - General Observation - 95% MISSING TILES STRAT POSSIBLE UNDER MAG COAT71.5 ft. MGO - General Observation - 90% MISSING TILES UNDER MAG COAT POSSIBLE178.4 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES - SEVERE AGG AREAS OF MISSING TILES286.6 ft. SAP - Surface Aggregate Projecting, from 11 to 01 o'clock, within 8 inches of joint: NO - SEVERE AGG330.2 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG AREAS OF MISSING TILES330.2 ft. MGO - General Observation - MH CONN 3:00 ACTIVE330.2 ft. MGO - General Observation - 95% MISSING TILES 10:00 TO 2:00 POSSIBLE UNDER MAG COAT330.2 ft. MGO - General Observation - MH CONN 9:00 OPEN330.6 ft. AMH - Downstream Manhole, Survey Ends - 4:30AM

Observation photos (6)

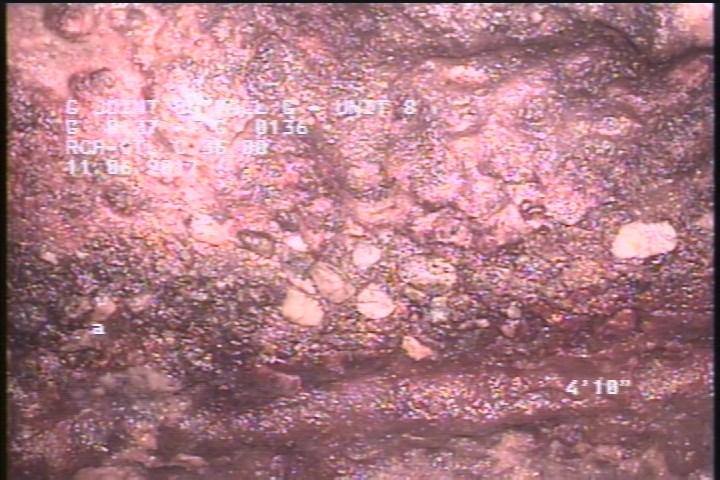

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG AREAS OF MISSING TILES

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG AREAS OF MISSING TILES

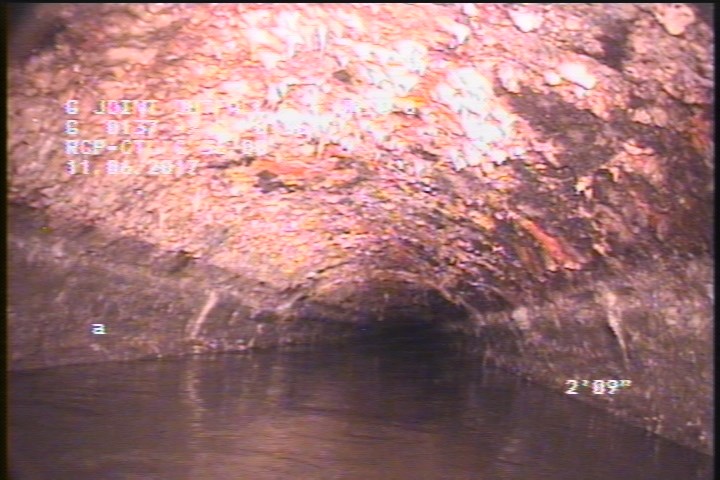

  • General Observation - MAG COAT 70% START 10:00 TO 2:00

    2 ft. - General Observation - MAG COAT 70% START 10:00 TO 2:00

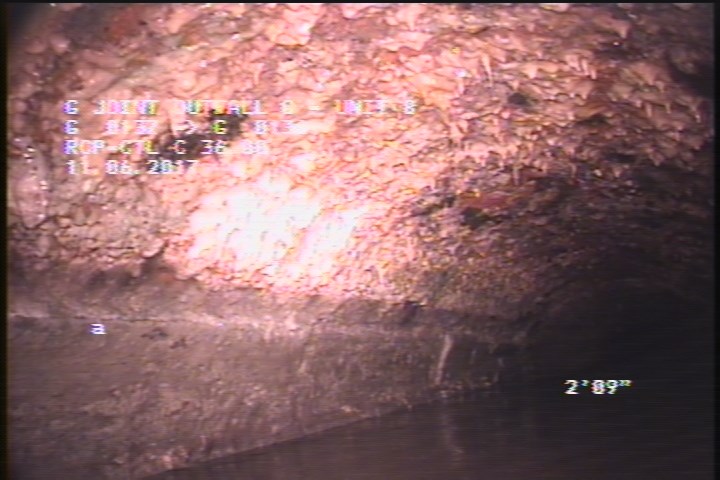

  • General Observation - 95% MISSING TILES STRAT POSSIBLE UNDER MAG COAT

    2 ft. - General Observation - 95% MISSING TILES STRAT POSSIBLE UNDER MAG COAT

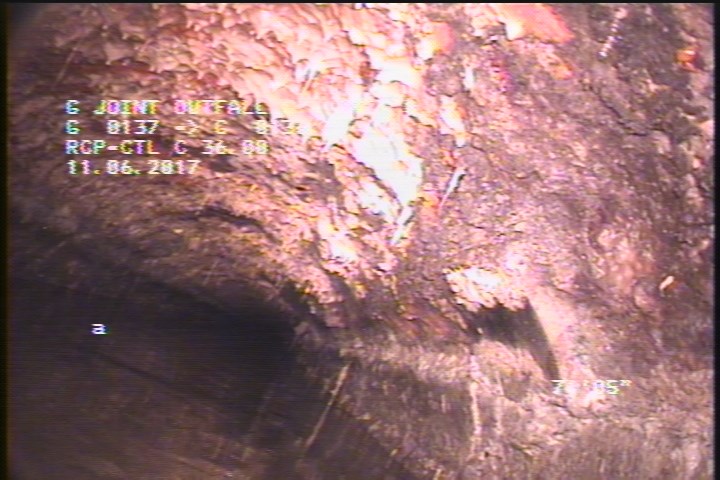

  • General Observation - 90% MISSING TILES UNDER MAG COAT POSSIBLE

    71.5 ft. - General Observation - 90% MISSING TILES UNDER MAG COAT POSSIBLE

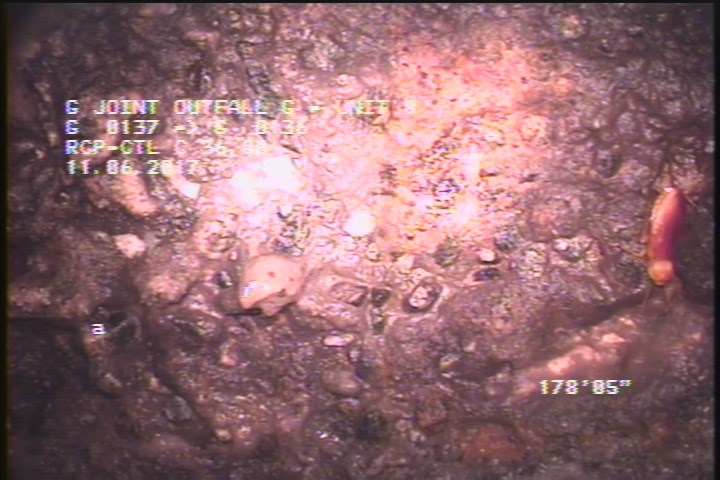

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES - SEVERE AGG AREAS OF MISSING TILES

    178.4 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES - SEVERE AGG AREAS OF MISSING TILES

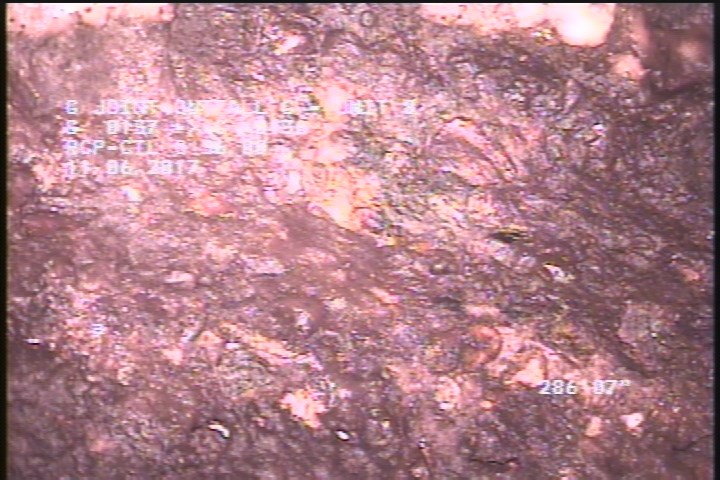

  • Surface Aggregate Projecting, from 11 to 01 o'clock, within 8 inches of joint: NO - SEVERE AGG

    286.6 ft. - Surface Aggregate Projecting, from 11 to 01 o'clock, within 8 inches of joint: NO - SEVERE AGG

All inspections of P01460Work order 0671874

Observations (16)

DistanceCodeObservation
71.5MGO90% MISSING TILES UNDER MAG COAT POSSIBLE
2SAPSEVERE AGG AREAS OF MISSING TILES
2MGOMAG COAT 70% START 10:00 TO 2:00
0MGOMH CONN 3:00 STUB
330.2SAPSEVERE AGG AREAS OF MISSING TILES
330.6AMH4:30AM
0MWL—
330.2MGOMH CONN 3:00 ACTIVE
0MWM—
330.2MGO95% MISSING TILES 10:00 TO 2:00 POSSIBLE UNDER MAG COAT
0MGOMH CONN 9:00 STUB
2MGO95% MISSING TILES STRAT POSSIBLE UNDER MAG COAT
286.6SAPSEVERE AGG
178.4SAVSEVERE AGG AREAS OF MISSING TILES
330.2MGOMH CONN 9:00 OPEN
0AMH4:00AM

Properties (4)

custom_field_three
MISSING TILES - SEVERE AGG VISIBLE
custom_field_two
2
customer
LACSD
datetime
2017-11-06T02:18:45-08:00
