Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 8, 2017, 11:11 AM

  • C 0344_C 0343 _09082017_042200.mp4

Date
09/08/2017
W/O
651776
Weather
Dry
Operator/Surveyor
JUAN B
Sewer ID
Z00138
PipeID
P09807
Time
4:11 AM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K4964
Sewer Name
C JOINT OUTFALL C - UNIT 7B
City
LONG BEACH
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
17
Purpose
Routine Assessment
Project
WO_651776_TV03125_AUG2017
Sewer Type
Siphon
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Width
33 in.
Upstream MH
C 0343
Downstream MH
C 0344
Dir. of Survey
Upstream
Length Surveyed
4.9 ft.
Total Length
5 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole C 0343 to C 0344
MH: C 0343MH: C 0344upstream0 ft. MSA - Survey Abandoned - SIPHON UPLEG0 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES4.9 ft. MWM - Water Mark, 70 %of cross sectional area4.9 ft. AMH - Downstream Manhole, Survey Begins - C 03434.9 ft. MWL - Water Level, 60 %of cross sectional area4.9 ft. MGO - Reversal Inspection

Observation photos (2)

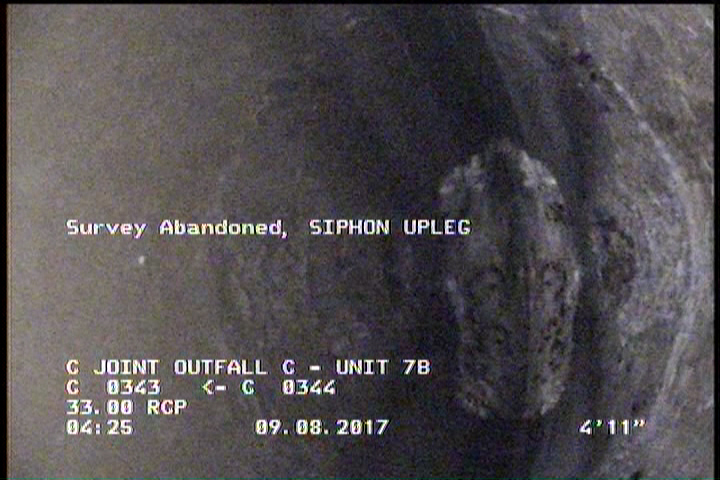

  • Survey Abandoned - SIPHON UPLEG

    4.9 ft. - Survey Abandoned - SIPHON UPLEG

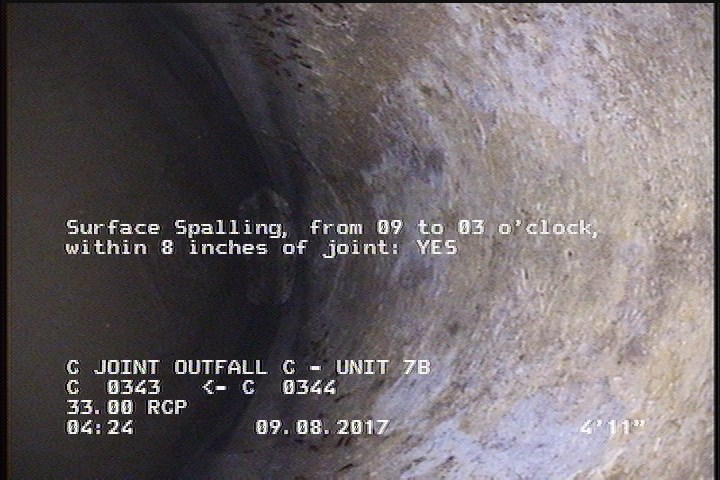

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES

    4.9 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES

All inspections of P09807Work order 651776

Observations (6)

DistanceCodeObservation
0MWM—
0AMHC 0343
4.9MSASIPHON UPLEG
4.9SSS—
0MWL—
0MGO—

Properties (4)

additional_info
SC345955
custom_field_two
3
customer
LACSD
datetime
2017-09-08T04:11:49-07:00
