Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 2, 2016, 10:49 AM

  • 30 0105_30 0104_02062016_035013.mp4

Date
06/02/2016
W/O
574298
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00878
PipeID
P17807
Time
3:49 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3517
Sewer Name
30 SOUTH BAY CITIES MAIN TRUNK
City
REDONDO BEACH
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 30
Page No.
06
Purpose
Routine Assessment
Project
WO_574298_TV30067_JUNE2016
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Shape
Other
Height
24 in.
Upstream MH
30 0105
Downstream MH
30 0104
Dir. of Survey
Downstream
Length Surveyed
367.3 ft.
Total Length
367.3 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2\00
O&M Rating
290
Overall Index
2
Overall Quick
—
Overall Rating
290
Pipe schematic from manhole 30 0105 to 30 0104
MH: 30 0105MH: 30 0104downstream0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 30 01050 ft. MWM - Water Mark, 40 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start8.6 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start47.7 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"70.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"120.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"170 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"218.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"268.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"292.4 ft. TBA - Tap Break-In Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"318.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"366.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish366.2 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish367.3 ft. AMH - Downstream Manhole, Survey Ends - 30 0104

Observation photos (1)

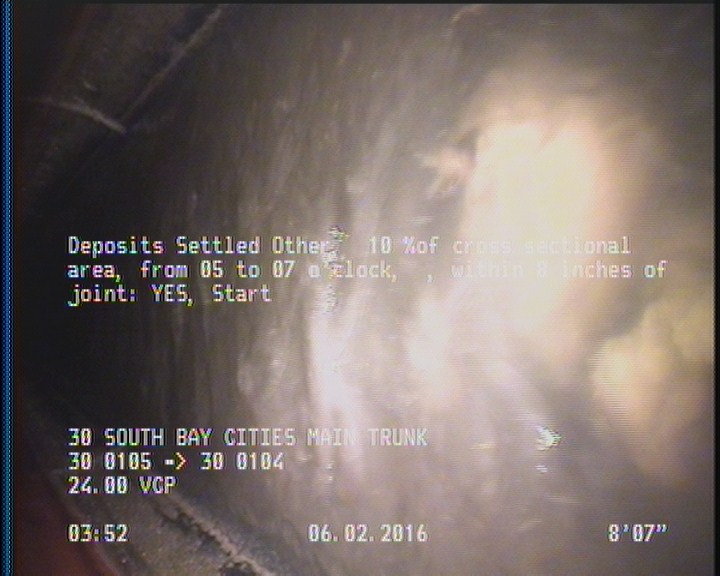

  • Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

    8.6 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

All inspections of P17807Work order 574298

Observations (16)

DistanceCodeObservation
366.1DAGS—
2DAGS—
170TFC—
292.4TBA—
70.6TFC—
218.9TFC—
366.2DSZ—
47.7TBA—
8.6DSZ—
268.6TFC—
120.1TFC—
0MWL—
367.3AMH30 0104
318.1TFC—
0AMH30 0105
0MWM—

Properties (4)

additional_info
SC305647
custom_field_two
4
customer
LACSD
datetime
2016-06-02T03:49:53-07:00
