Wastewater/Activity/PacpInspection/1.0Apr 22, 2016, 06:50 AM
C 0379_0_21042016_235109.mp4
- Date
- 04/21/2016
- W/O
- 563419
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00141
- PipeID
- P22211
- Time
- 11:50 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3323
- Sewer Name
- C JOINT OUTFALL C - UNIT 8C
- City
- LAKEWOOD
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 19
- Page No.
- 06
- Purpose
- Routine Assessment
- Project
- WO_563419_TV19012_APRIL2016
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Upstream MH
- C 0379
- Downstream MH
- 0
- Dir. of Survey
- Downstream
- Length Surveyed
- 418.7 ft.
- Total Length
- 418.7 ft.
- Structural Index
- 3
- Structural Quick
- 3P2P
- Structural Rating
- 415
- O&M Index
- 2
- O&M Quick
- 2P00
- O&M Rating
- 168
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 583
Observation photos (4)

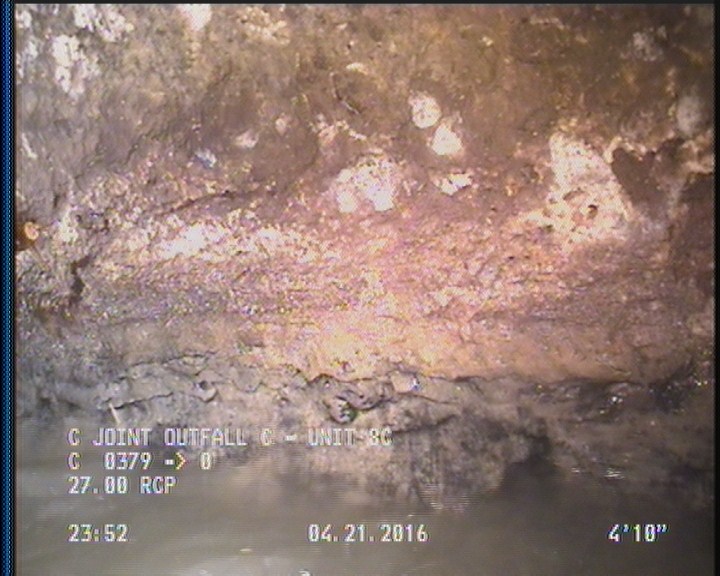

0 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

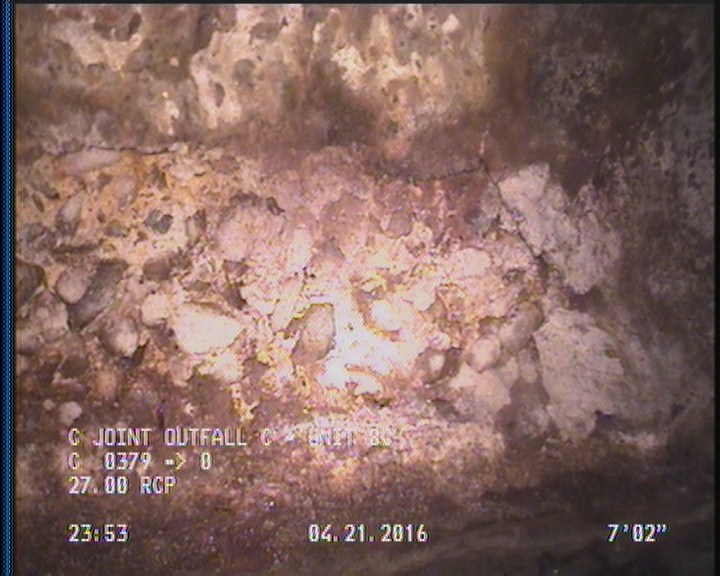

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

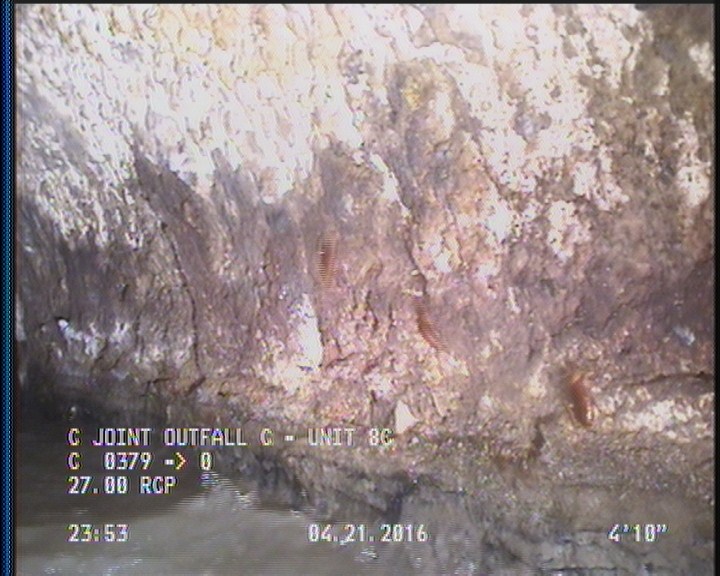

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

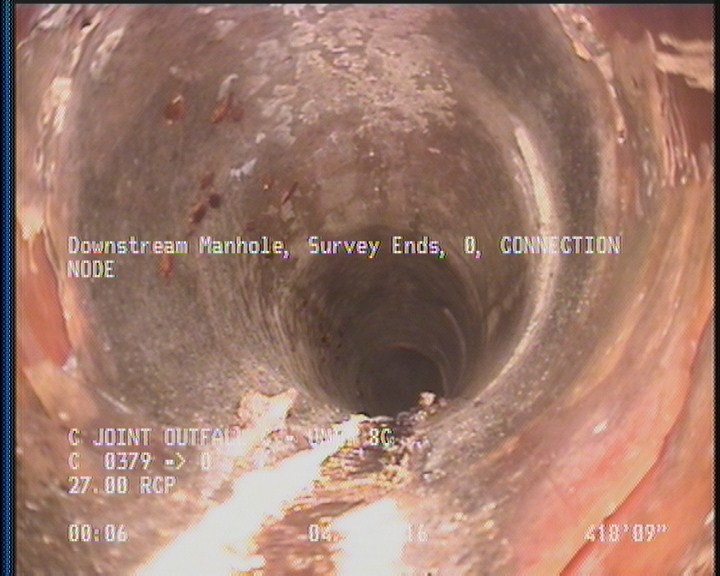

418.7 ft. - Downstream Manhole, Survey Ends - 0, CONNECTION NODE
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 418.7 | SSS | — |
| 0 | AMH | C 0379 |
| 0 | MWM | — |
| 2 | SAP | — |
| 418.7 | DAGS | — |
| 418.7 | AMH | 0, CONNECTION NODE |
| 0 | DAGS | — |
| 2 | SSS | — |
| 418.7 | SAP | — |
Properties (5)
- additional_info
- SC305601
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-04-21T23:50:17-07:00
- year_laid
- 19730406
