Wastewater/Activity/PacpInspection/1.0Apr 25, 2018, 04:45 PM
03 0425_03 0424_4252018_105346.mp4
- Date
- 04/25/2018
- W/O
- PENDING
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00391
- PipeID
- P05268
- Time
- 9:45 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7692
- Sewer Name
- 03 PICO AVENUE TRUNK
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 22
- Purpose
- Routine Assessment
- Project
- 20180425DF_PICO_AVENUE_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Upstream MH
- 03 0425
- Downstream MH
- 03 0424
- Dir. of Survey
- Downstream
- Length Surveyed
- 38.9 ft.
- Total Length
- 38.9 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (1)

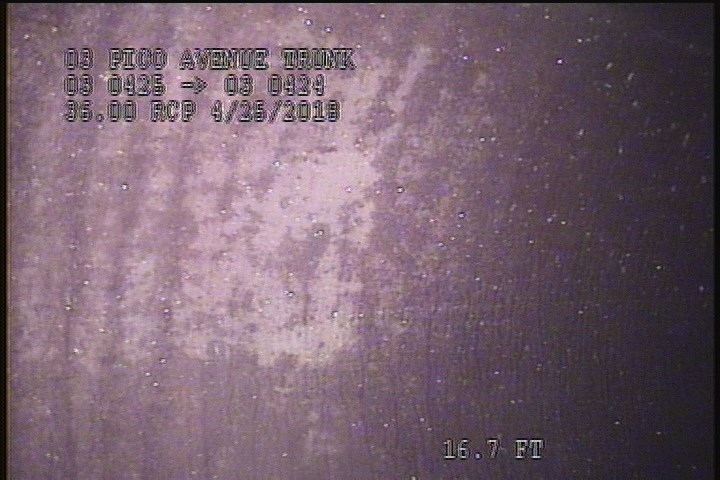

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - POSSIBLE GREASE/DEBRIS LAYER ON THE LINER
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0.1 | MWM | — |
| 2 | SSS | POSSIBLE GREASE/DEBRIS LAYER ON THE LINER |
| 38.9 | TFA | POSSIBLE DROP |
| 34.3 | SSS | POSSIBLE GREASE/DEBRIS LAYER ON THE LINER |
| 0.1 | MWL | — |
| 0 | AMH | 9:55 AM |
| 38.9 | AMH | 11:14 AM |
Properties (5)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-04-25T09:45:43-07:00
- lining
- FR POLY LINE
- year_laid
- 19990330
