Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 24, 2018, 07:01 PM

  • D 0088_D 0087_4242018_120304.mp4

Date
04/24/2018
W/O
0696317
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z00155
PipeID
P09988
Time
12:01 PM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7691
Sewer Name
D JOINT OUTFALL D - UNIT 5
City
GARDENA
Loc. details
Alley
Location Code
H
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
20
Purpose
Capital Improvement Program Assesment
Project
20180424SHO_JOINT_OUTFALL_D_UNIT_5
Material
Reinforced Concrete Pipe
Shape
Circular
Height
42 in.
Upstream MH
D 0088
Downstream MH
D 0087
Dir. of Survey
Downstream
Length Surveyed
470.8 ft.
Total Length
470.8 ft.
Structural Index
3
Structural Quick
3421
Structural Rating
14
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
14
Pipe schematic from manhole D 0088 to D 0087
MH: D 0088MH: D 0087downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12054.2 ft. SAP - Surface Aggregate Projecting, from 10 to 12 o'clock, within 8 inches of joint: YES, Start39.8 ft. SAP - Surface Aggregate Projecting, from 10 to 12 o'clock, within 8 inches of joint: YES, Finish71.8 ft. SSS - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start188.9 ft. SAV - Surface Aggregate Visible, at 12 o'clock, within 8 inches of joint: NO205.4 ft. SAV - Surface Aggregate Visible, from 10 to 12 o'clock, within 8 inches of joint: YES, Start321.7 ft. SAV - Surface Aggregate Visible, from 10 to 12 o'clock, within 8 inches of joint: YES, Finish432.2 ft. SAV - Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: YES, Start464.6 ft. SAV - Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: YES, Finish466.2 ft. SSS - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish470.8 ft. MGO - General Observation - 5% OR LESS GREASE THROUGHOUT470.8 ft. AMH - Downstream Manhole, Survey Ends - 1220

Observation photos (5)

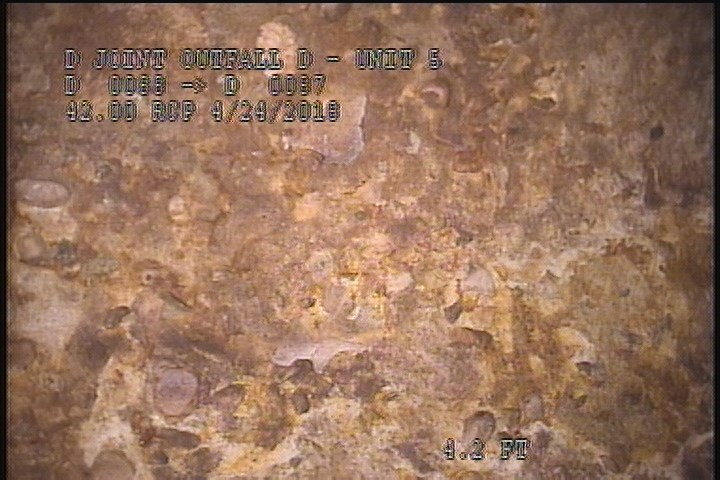

  • Surface Aggregate Projecting, from 10 to 12 o'clock, within 8 inches of joint: YES, Start

    4.2 ft. - Surface Aggregate Projecting, from 10 to 12 o'clock, within 8 inches of joint: YES, Start

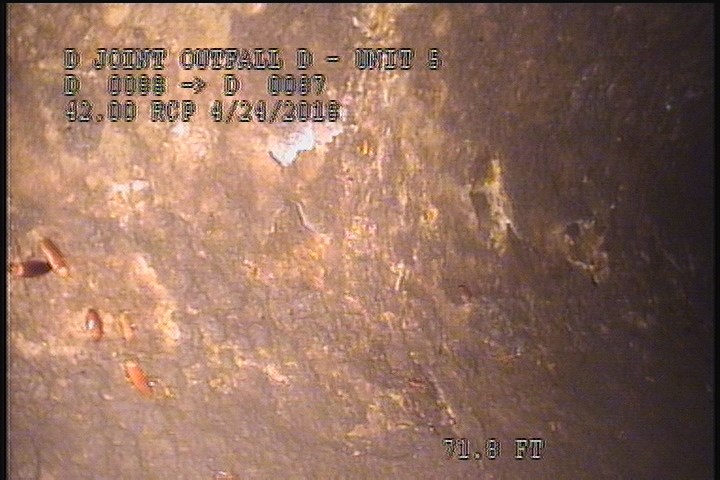

  • Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    71.8 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

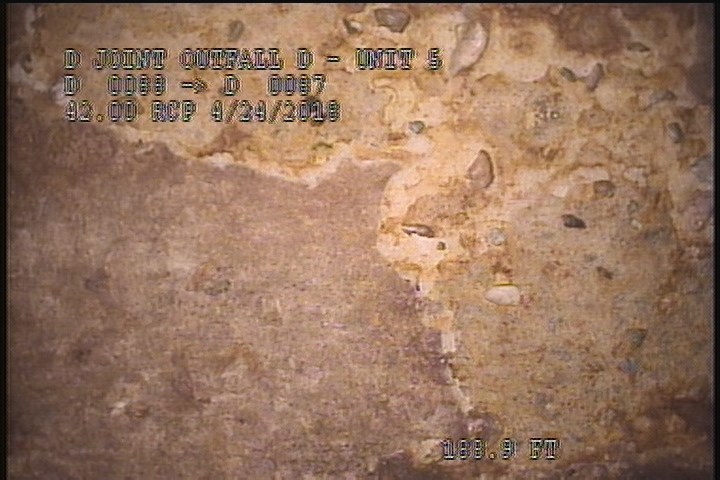

  • Surface Aggregate Visible, at 12 o'clock, within 8 inches of joint: NO

    188.9 ft. - Surface Aggregate Visible, at 12 o'clock, within 8 inches of joint: NO

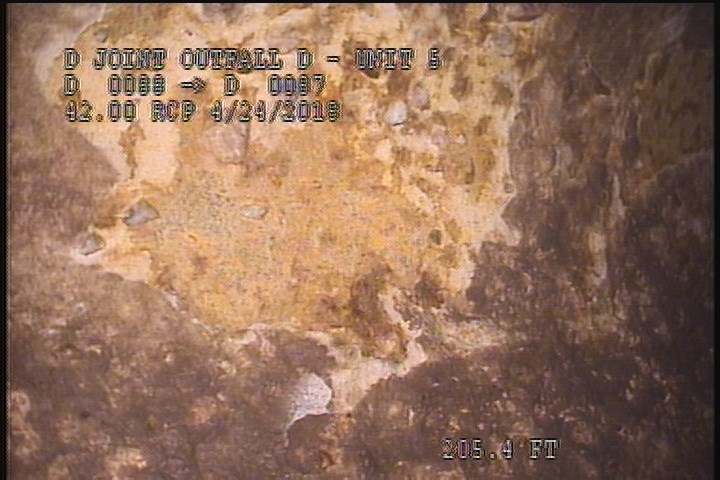

  • Surface Aggregate Visible, from 10 to 12 o'clock, within 8 inches of joint: YES, Start

    205.4 ft. - Surface Aggregate Visible, from 10 to 12 o'clock, within 8 inches of joint: YES, Start

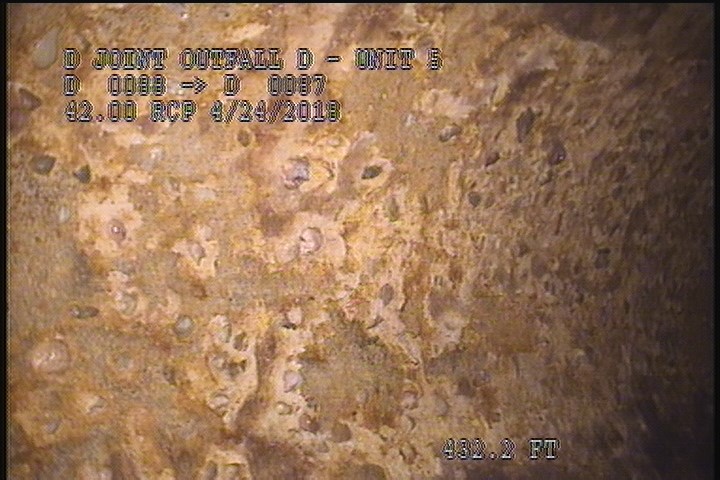

  • Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: YES, Start

    432.2 ft. - Surface Aggregate Visible, from 11 to 01 o'clock, within 8 inches of joint: YES, Start

All inspections of P09988Work order 0696317

Observations (14)

DistanceCodeObservation
470.8MGO5% OR LESS GREASE THROUGHOUT
4.2SAP—
321.7SAV—
0MWL—
470.8AMH1220
464.6SAV—
432.2SAV—
188.9SAV—
0MWM—
466.2SSS—
0AMH1205
71.8SSS—
205.4SAV—
39.8SAP—

Properties (5)

additional_info
RFIR
custom_field_three
AGGREGATE ON & OFF
custom_field_two
3
customer
LACSD
datetime
2018-04-24T12:01:44-07:00
