Wastewater/Activity/PacpInspection/1.0Jul 13, 2017, 05:34 AM
05 0390_05 0389 _12072017_235243.mp4
- Date
- 07/12/2017
- W/O
- 640682
- Weather
- Dry
- Operator/Surveyor
- M.MARTINEZ
- Sewer ID
- Z00432
- PipeID
- P05602
- Time
- 10:34 PM
- Certificate
- U-115-06022794
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3987-SC345551
- Sewer Name
- 05 DISTRICT #5 MAIN RELIEF TRUNK
- City
- INGLEWOOD CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_640682_TV05179_JUN2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 05 0390
- Downstream MH
- 05 0389
- Dir. of Survey
- Downstream
- Length Surveyed
- 386.2 ft.
- Total Length
- 386.2 ft.
- Structural Index
- 3
- Structural Quick
- 3N00
- Structural Rating
- 225
- O&M Index
- 2
- O&M Quick
- 412N
- O&M Rating
- 154
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 379
Observation photos (2)

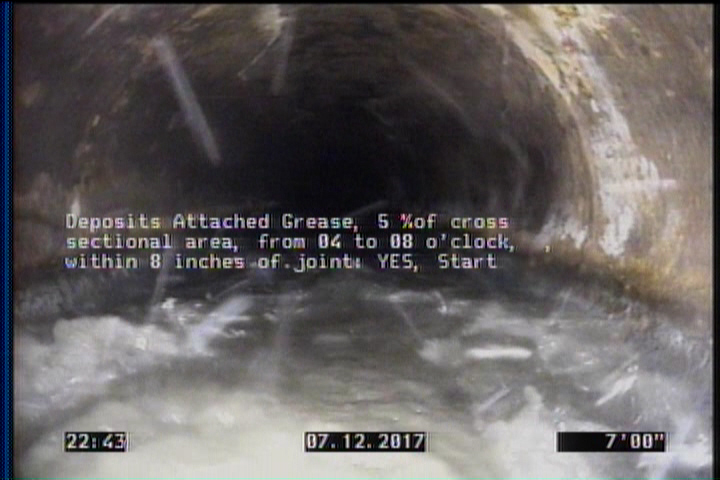

7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

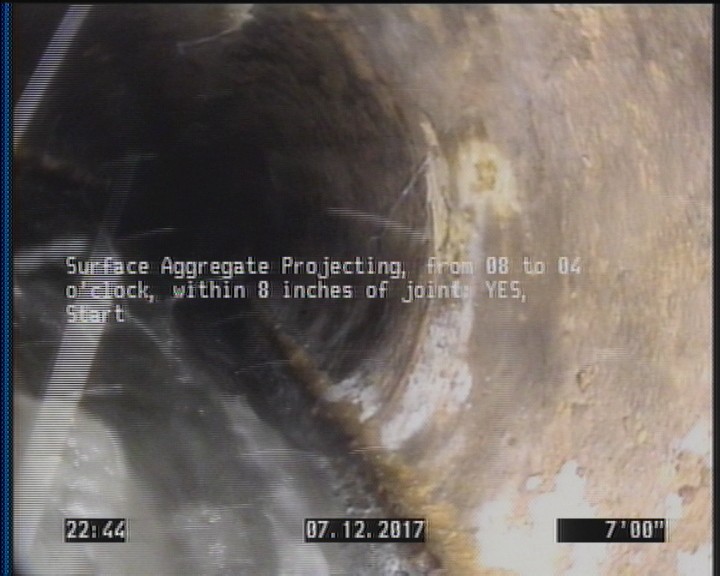

7 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 382.1 | SAP | — |
| 7 | DAGS | — |
| 0 | MWL | — |
| 0 | AMH | 05 0390 |
| 386.2 | AMH | 05 0389 |
| 382.1 | DAGS | — |
| 7 | SAP | — |
| 0 | MWM | — |
Properties (3)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-07-12T22:34:17-07:00
