Wastewater/Activity/PacpInspection/1.0Jul 14, 2017, 10:22 AM
05 0380_05 0379 _14072017_043823.mp4
- Date
- 07/14/2017
- W/O
- 640682
- Weather
- Dry
- Operator/Surveyor
- M.MARTINEZ
- Sewer ID
- Z00432
- PipeID
- P05592
- Time
- 3:22 AM
- Certificate
- U-115-06022794
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3987-SC345552
- Sewer Name
- 05 DISTRICT #5 MAIN RELIEF TRUNK
- City
- INGLEWOOD CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_640682_TV05179_JUN2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- 05 0380
- Downstream MH
- 05 0379
- Dir. of Survey
- Downstream
- Length Surveyed
- 334 ft.
- Total Length
- 334 ft.
- Structural Index
- 3
- Structural Quick
- 3L00
- Structural Rating
- 198
- O&M Index
- 2
- O&M Quick
- 412L
- O&M Rating
- 136
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 334
Observation photos (3)

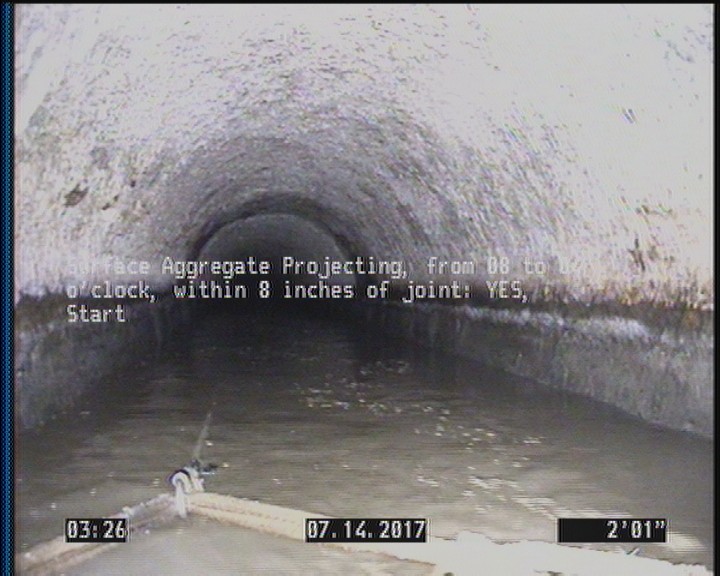

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

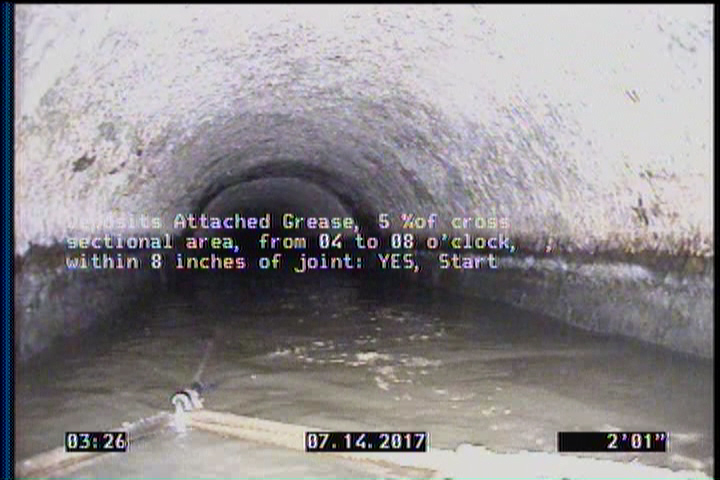

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

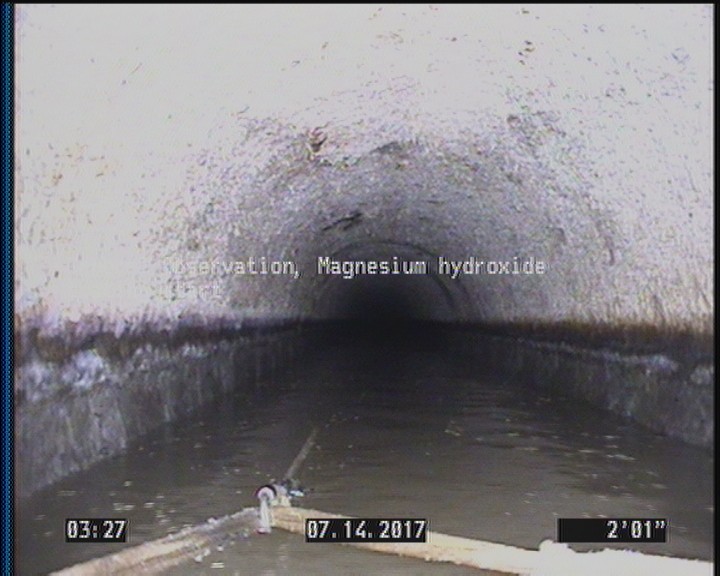

2.1 ft. - General Observation - Magnesium hydroxide coating start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 334 | AMH | 05 0379 |
| 2 | SAP | — |
| 332.7 | SAP | — |
| 332.7 | MGO | Magnesium hydroxide coating finish |
| 0 | MWL | — |
| 2.1 | MGO | Magnesium hydroxide coating start |
| 332.7 | DAGS | — |
| 0 | AMH | 05 0380 |
| 334 | MGO | CONNECTION AT THE MH 3 O'CLOCK |
| 0 | MWM | — |
| 2 | DAGS | — |
Properties (3)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-07-14T03:22:51-07:00
