Wastewater/Activity/PacpInspection/1.0May 18, 2016, 06:15 AM
- Date
- 05/17/2016
- W/O
- 557604
- Weather
- Dry
- Operator/Surveyor
- J. VARGAS
- Sewer ID
- Z00939
- PipeID
- P20439
- Time
- 11:15 PM
- Certificate
- U-209-8149
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3458
- Sewer Name
- H JOINT OUTFALL H - UNIT 8A RELIEF
- City
- LA PUENTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 30
- Purpose
- Routine Assessment
- Project
- WO_557604_TV15074_MAY2016
- Sewer Type
- GRAVITY
- Material
- RCP-PTL
- Shape
- Circular
- Height
- 48 in.
- Upstream MH
- H 0882
- Downstream MH
- H 0881
- Dir. of Survey
- Downstream
- Length Surveyed
- 545.7 ft.
- Total Length
- 545.7 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2U00
- O&M Rating
- 216
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 216
Observation photos (1)

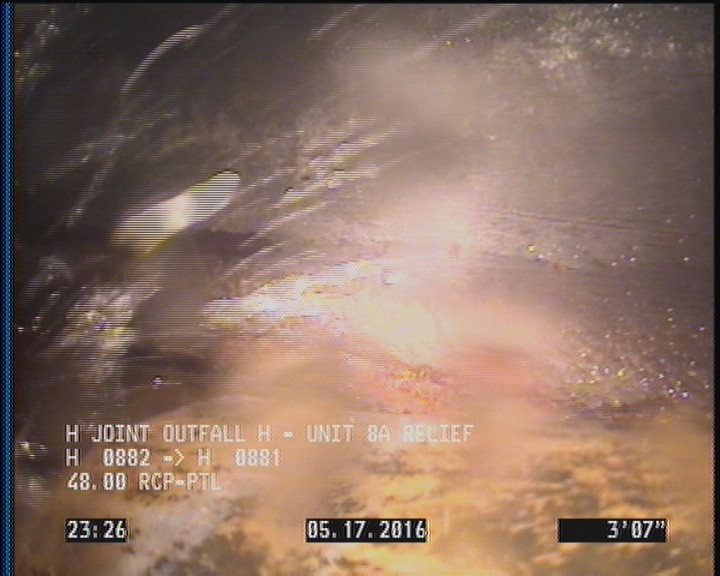

3.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 3.6 | DAGS | — |
| 545.7 | AMH | H 0881 |
| 0 | AMH | H 0882 |
| 542.5 | DAGS | — |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC305480
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-05-17T23:15:40-07:00
- year_laid
- 19920123
