Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 9, 2016, 10:28 AM

  • 22 0676_22 0675_20160509_043924.mp4

Date
05/09/2016
W/O
568953
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00827
PipeID
P17026
Time
3:28 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3246
Sewer Name
22 SUNFLOWER TRUNK
City
SAN DIMAS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
23
Purpose
V
Project
WO_568953_TV22063_MAY2016
Sewer Type
GRAVITY
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
22 0675
Downstream MH
22 0676
Dir. of Survey
Upstream
Length Surveyed
158 ft.
Total Length
158 ft.
Structural Index
3
Structural Quick
3E00
Structural Rating
93
O&M Index
3
O&M Quick
3B22
O&M Rating
44
Overall Index
3
Overall Quick
—
Overall Rating
137
Pipe schematic from manhole 22 0675 to 22 0676
MH: 22 0675MH: 22 0676upstream0 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0 ft. MSA - Survey Abandoned - DUE TO LINE COMPLETE0 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish0 ft. DSGV - Deposits Settled Gravel, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish0 ft. MGO - General Observation - REVERSAL INSPECTION COMPLETED28.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"32.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"65.3 ft. DSGV - Deposits Settled Gravel, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start107.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"113.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"153.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start156 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start156 ft. MGO - General Observation - Magnesium hydroxide coating start158 ft. MGO - Reversal Inspection158 ft. VC - Vermin Cockroach158 ft. AMH - Downstream Manhole, Survey Begins - 22 0675158 ft. MWM - Water Mark, 15 %of cross sectional area158 ft. MWL - Water Level, 5 %of cross sectional area

Observation photos (3)

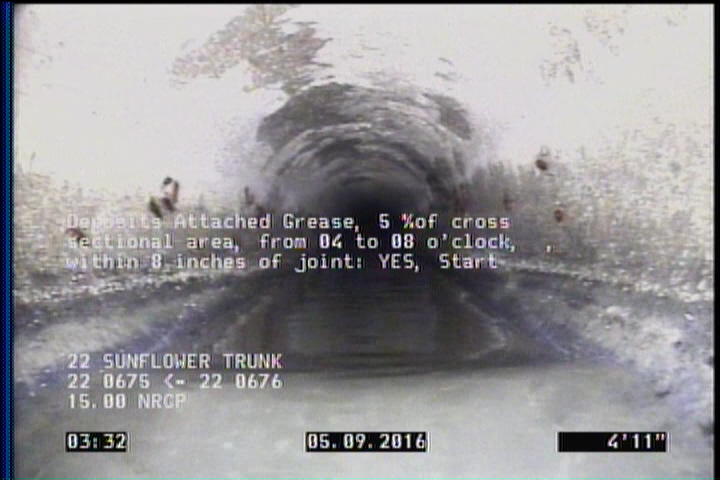

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    4.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

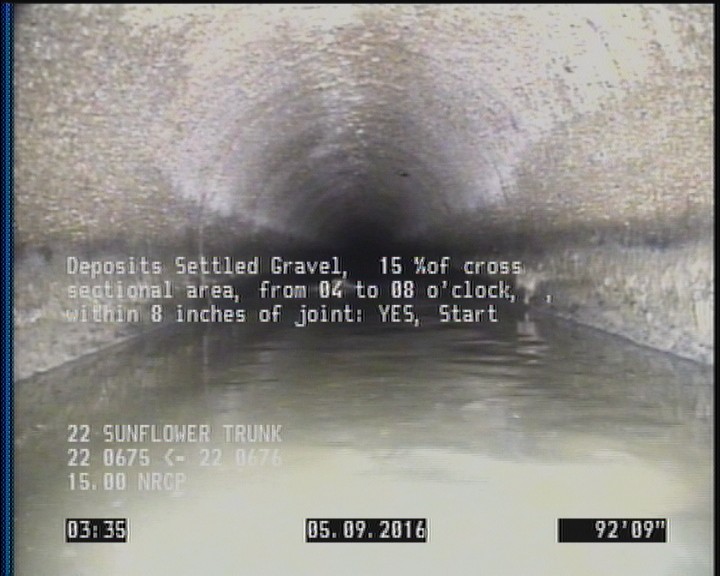

  • Deposits Settled Gravel, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    92.7 ft. - Deposits Settled Gravel, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

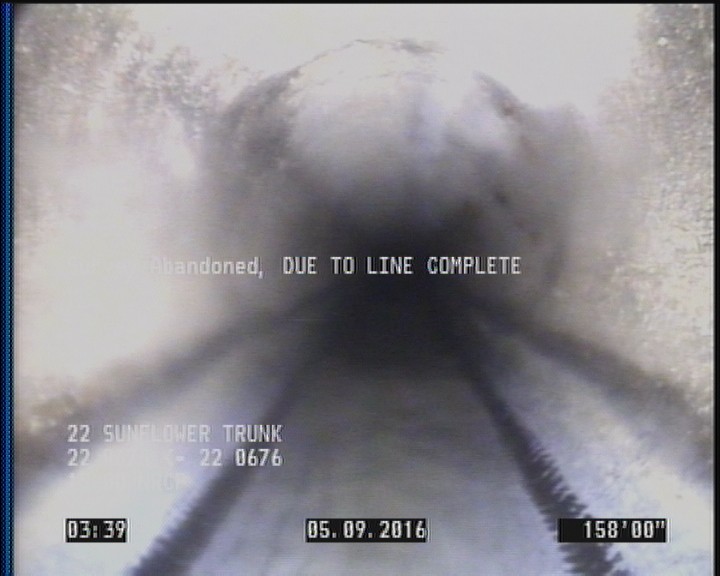

  • Survey Abandoned - DUE TO LINE COMPLETE

    158 ft. - Survey Abandoned - DUE TO LINE COMPLETE

All inspections of P17026Work order 568953

Observations (18)

DistanceCodeObservation
50.3TFC—
44.5TFC—
92.7DSGV—
158SAV—
2SAV—
158MSADUE TO LINE COMPLETE
2MGOMagnesium hydroxide coating start
0MGO—
0VC—
158DAGS—
129.6TFC—
158DSGV—
4.6DAGS—
0AMH22 0675
125.2TFC—
0MWM—
158MGOREVERSAL INSPECTION COMPLETED
0MWL—
