Wastewater/Activity/PacpInspection/1.0May 5, 2016, 08:34 AM
22 0698_22 0697_20160505_024830.mp4
- Date
- 05/05/2016
- W/O
- 568953
- Weather
- Dry
- Operator/Surveyor
- N.ZAHREDDINE
- Sewer ID
- Z00827
- PipeID
- P17052
- Time
- 1:34 AM
- Certificate
- U- 109-7948
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K 3202
- Sewer Name
- 22 SUNFLOWER TRUNK
- City
- LA VERNE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 15
- Purpose
- Routine Assessment
- Project
- WO_568953_TV22063_MAY2016
- Sewer Type
- GRAVITY
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 22 0698
- Downstream MH
- 22 0697
- Dir. of Survey
- Downstream
- Length Surveyed
- 364.4 ft.
- Total Length
- 364.4 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2M11
- O&M Rating
- 145
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 147
Observation photos (2)

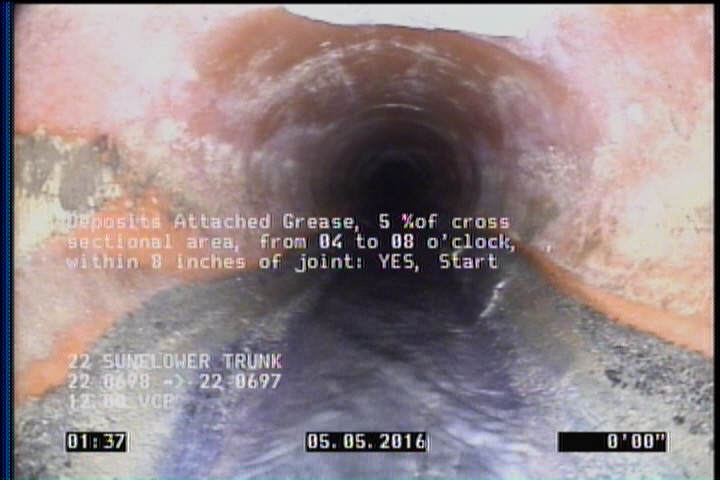

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

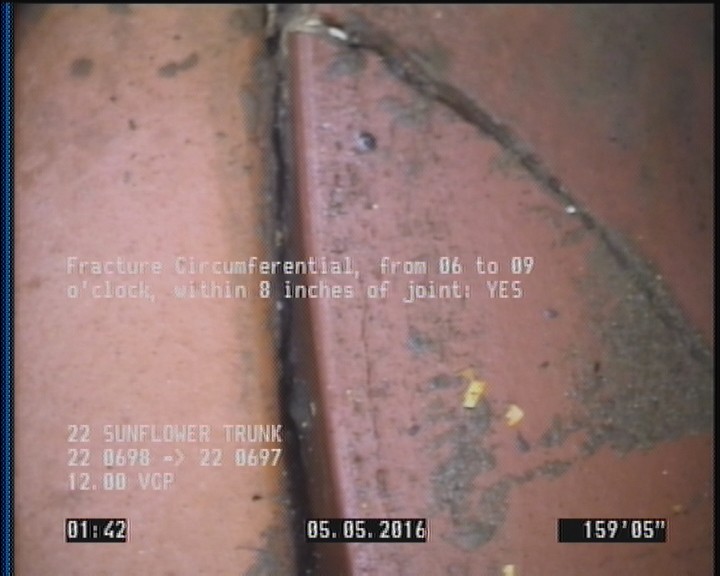

159.4 ft. - Fracture Circumferential, from 06 to 09 o'clock, within 8 inches of joint: YES
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 364.4 | AMH | 22 0697 |
| 0 | MWL | — |
| 2 | DAGS | — |
| 122.8 | TF | — |
| 0 | MWM | — |
| 0 | AMH | 22 0698 |
| 351.4 | TF | — |
| 361.5 | DAGS | — |
| 194.2 | TBA | — |
| 55.2 | TFC | — |
| 364.4 | VC | — |
| 190.8 | TFC | — |
| 159.4 | FC | — |
| 273.6 | TF | — |
Properties (4)
- additional_info
- SC226250
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-05-05T01:34:01-07:00
