Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 6, 2016, 08:34 AM

  • 22 0684A_22 0684_20160506_024559.mp4

Date
05/06/2016
W/O
568953
Weather
Dry
Operator/Surveyor
N.ZAHREDDINE
Sewer ID
Z00827
PipeID
P17036
Time
1:34 AM
Certificate
U- 109-7948
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K 3203
Sewer Name
22 SUNFLOWER TRUNK
City
SAN DIMAS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
15
Purpose
Routine Assessment
Project
WO_568953_TV22063_MAY2016
Sewer Type
GRAVITY
Material
NRCP
Shape
Circular
Height
12 in.
Upstream MH
22 0684A
Downstream MH
22 0684
Dir. of Survey
Downstream
Length Surveyed
109 ft.
Total Length
109 ft.
Structural Index
3
Structural Quick
3C00
Structural Rating
63
O&M Index
1
O&M Quick
1200
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
65
Pipe schematic from manhole 22 0684A to 22 0684
MH: 22 0684AMH: 22 0684downstream0 ft. MGO - General Observation - CONNECTION AT THE MH 9 O'CLOCK0 ft. VC - Vermin Cockroach0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 22 0684A1.2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. MGO - General Observation - Magnesium hydroxide coating 20% start79.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 4"83.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"106.2 ft. MGO - General Observation - Magnesium hydroxide coating 20% finish106.2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish109 ft. VC - Vermin Cockroach109 ft. AMH - Downstream Manhole, Survey Ends - 22 0684

Observation photos (2)

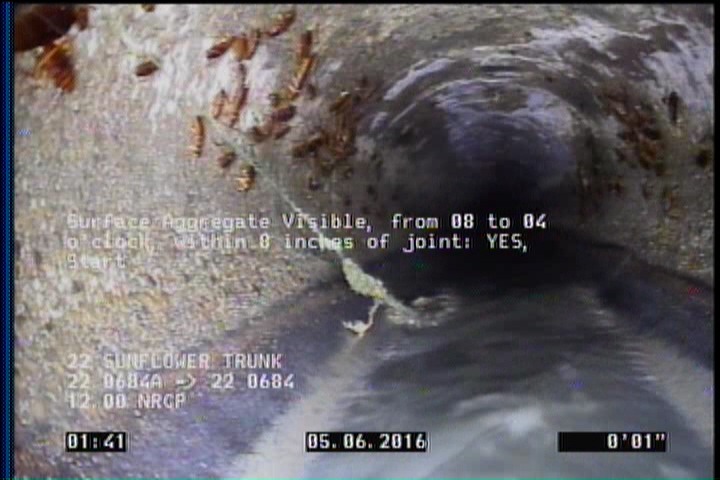

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    1.2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

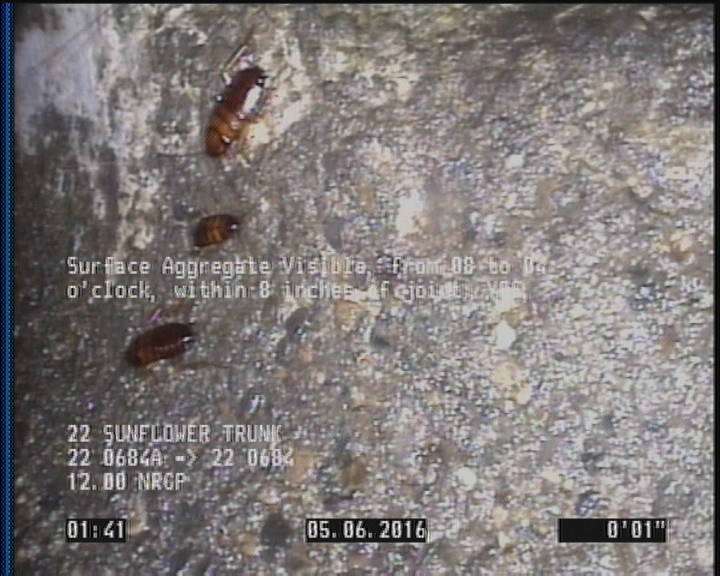

  • General Observation - Magnesium hydroxide coating 20% start

    2 ft. - General Observation - Magnesium hydroxide coating 20% start

All inspections of P17036Work order 568953

Observations (13)

DistanceCodeObservation
0MGOCONNECTION AT THE MH 9 O'CLOCK
1.2SAV—
0VC—
0MWL—
0MWM—
83.6TFC—
2MGOMagnesium hydroxide coating 20% start
109VC—
79.1TF—
106.2MGOMagnesium hydroxide coating 20% finish
106.2SAV—
109AMH22 0684
0AMH22 0684A

Properties (4)

additional_info
SC300651
custom_field_two
3
customer
LACSD
datetime
2016-05-06T01:34:13-07:00
