Wastewater/Activity/PacpInspection/1.0May 17, 2016, 02:10 PM
22 1444_22 0154_20160517_063247.mp4
- Date
- 05/17/2016
- W/O
- 568953
- Weather
- Dry
- Operator/Surveyor
- J. VARGAS
- Sewer ID
- Z00827
- PipeID
- P16955
- Time
- 7:10 AM
- Certificate
- U-209-8149
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3457
- Sewer Name
- 22 SUNFLOWER TRUNK
- City
- COVINA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 27
- Purpose
- Routine Assessment
- Project
- WO_568953_TV22063_MAY2016
- Sewer Type
- GRAVITY
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 22 0154
- Downstream MH
- 22 1444
- Dir. of Survey
- Upstream
- Length Surveyed
- 5.2 ft.
- Total Length
- 5.2 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 3
- O&M Quick
- 4122
- O&M Rating
- 8
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 11
Observation photos (3)

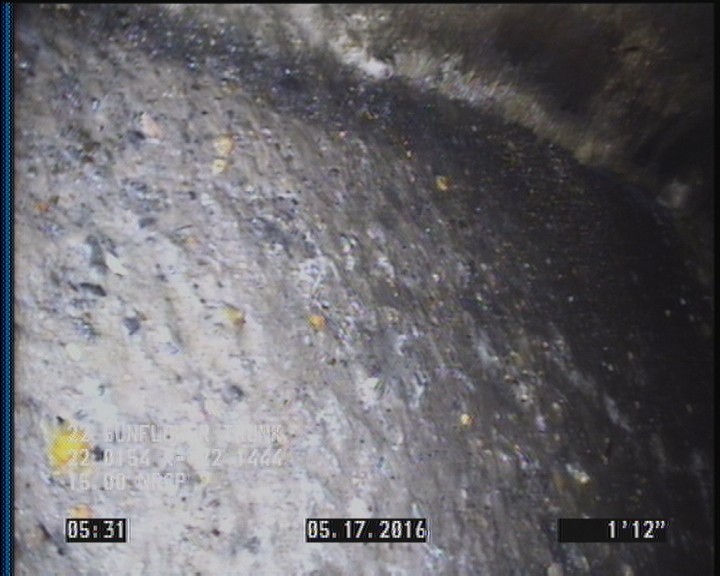

2 ft. - Deposits Settled Fine, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO - DEBRIS

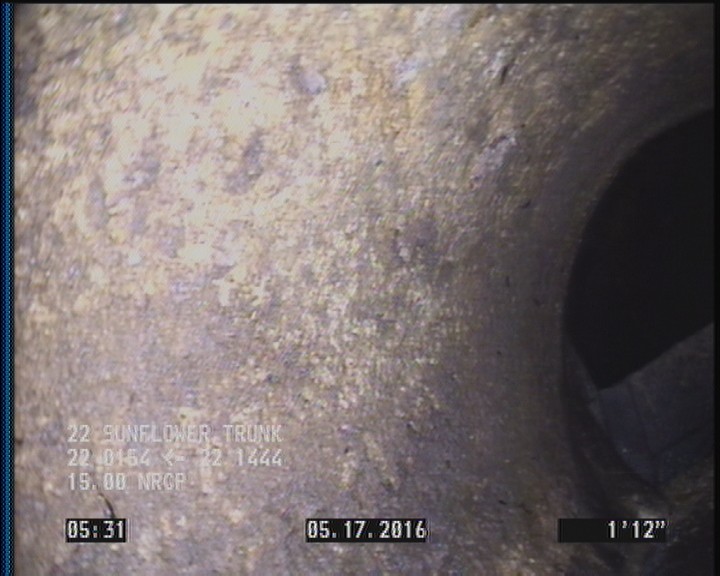

2 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES

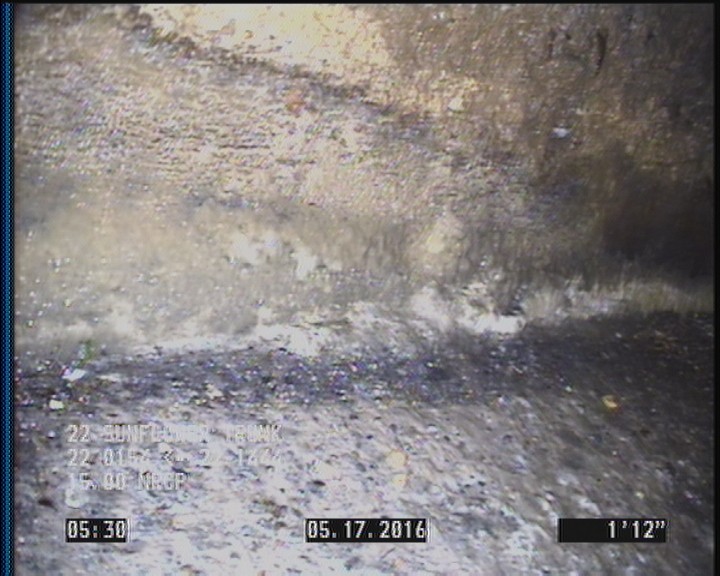

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 2 | DSF | DEBRIS |
| 2 | SAV | — |
| 5.2 | AMH | 22 1444 |
| 2 | DAGS | — |
| 0 | MGO | CONNECTION AT MH ACTIVE 9 OCLOCK |
| 0 | AMH | 22 1444 |
| 0 | MGO | CONNECTION AT MH ACTIVE 3 OCLOCK |
| 0 | MWM | — |
Properties (4)
- additional_info
- SC305479
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-05-17T07:10:28-07:00
