Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 11, 2016, 10:15 AM

  • 22 0647_22 0646_20160511_043022.mp4

Date
05/11/2016
W/O
568953
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00827
PipeID
P16995
Time
3:15 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3248
Sewer Name
22 SUNFLOWER TRUNK
City
SAN DIMAS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
22
Purpose
Routine Assessment
Project
WO_568953_TV22063_MAY2016
Sewer Type
GRAVITY
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
22 0646
Downstream MH
22 0647
Dir. of Survey
Upstream
Length Surveyed
327.3 ft.
Total Length
327.3 ft.
Structural Index
3
Structural Quick
3L2L
Structural Rating
321
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
325
Pipe schematic from manhole 22 0646 to 22 0647
MH: 22 0646MH: 22 0647upstream0 ft. AMH - Upstream Manhole, Survey Ends - 22 06472.3 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish3.5 ft. MGO - General Observation - Magnesium hydroxide coating finish3.5 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish3.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish65 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"121.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"125 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"189.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"242.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"298.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"302.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"319.8 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start319.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start325.3 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start325.3 ft. MGO - General Observation - Magnesium hydroxide coating start327.3 ft. MWL - Water Level, 5 %of cross sectional area327.3 ft. MWM - Water Mark, 15 %of cross sectional area327.3 ft. AMH - Downstream Manhole, Survey Begins - 22 0646

Observation photos (2)

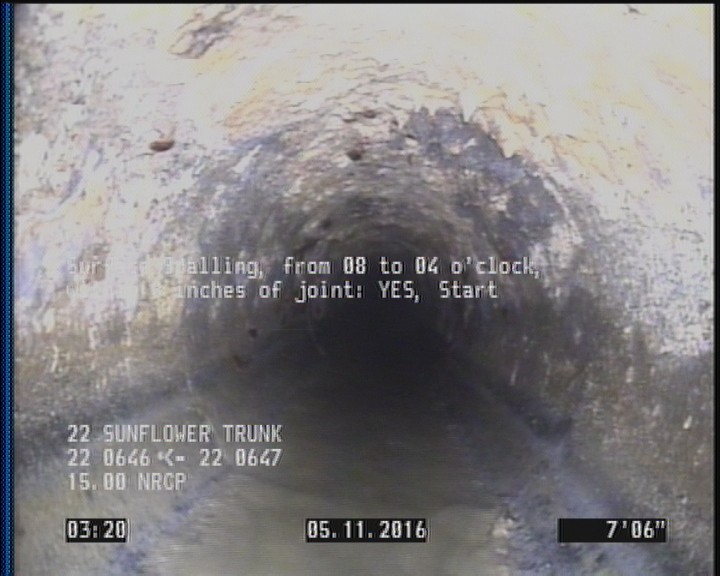

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    7.5 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

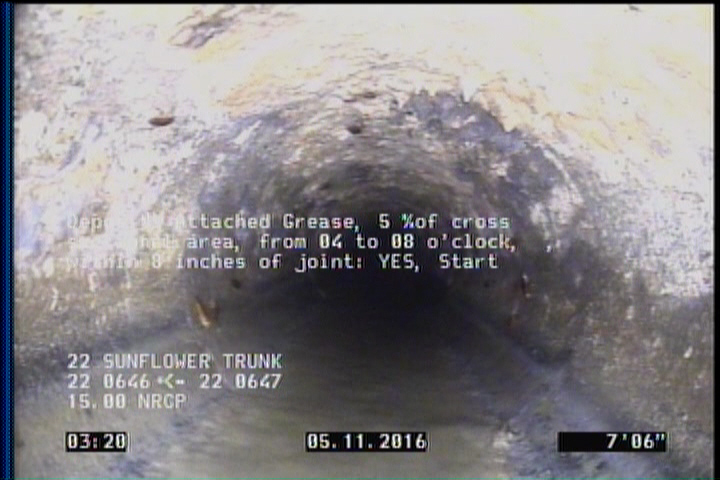

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    7.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P16995Work order 568953

Observations (19)

DistanceCodeObservation
2SAV—
24.9TFC—
202.3TFC—
0MWL—
323.8MGOMagnesium hydroxide coating finish
206TFC—
2MGOMagnesium hydroxide coating start
0MWM—
137.5TFC—
7.5SSS—
327.3AMH22 0647
323.8SSS—
28.9TFC—
262.3TFC—
323.8DAGS—
325SAV—
7.5DAGS—
0AMH22 0646
85TFC—

Properties (4)

additional_info
SC305347
custom_field_two
3
customer
LACSD
datetime
2016-05-11T03:15:08-07:00
