Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 12, 2016, 08:46 PM

  • 22 0620_22 0619_20160512_150641.mp4

Date
05/12/2016
W/O
568953
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00827
PipeID
P16968
Time
1:46 PM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3250
Sewer Name
22 SUNFLOWER TRUNK
City
GLENDORA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
21
Purpose
Routine Assessment
Project
WO_568953_TV22063_MAY2016
Sewer Type
GRAVITY
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
22 0619
Downstream MH
22 0620
Dir. of Survey
Upstream
Length Surveyed
457.4 ft.
Total Length
457.4 ft.
Structural Index
3
Structural Quick
3Q00
Structural Rating
273
O&M Index
2
O&M Quick
2Q00
O&M Rating
178
Overall Index
3
Overall Quick
—
Overall Rating
451
Pipe schematic from manhole 22 0619 to 22 0620
MH: 22 0619MH: 22 0620upstream0 ft. AMH - Upstream Manhole, Survey Ends - 22 06200 ft. MGO - General Observation - CONNECTION AT THE MH 3 O'CLOCK2.4 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish2.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish74.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"94.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"118.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"142.5 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"161.6 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"194.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"220 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"247.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"269.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4", 4"291.7 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"320.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"371 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"385.1 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"420.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"448.5 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"450.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start455.4 ft. MGO - General Observation - Magnesium hydroxide coating start455.4 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start457.4 ft. MWL - Water Level, 5 %of cross sectional area457.4 ft. AMH - Downstream Manhole, Survey Begins - 22 0619457.4 ft. MWM - Water Mark, 25 %of cross sectional area

Observation photos (3)

  • Water Mark, 25 %of cross sectional area

    0 ft. - Water Mark, 25 %of cross sectional area

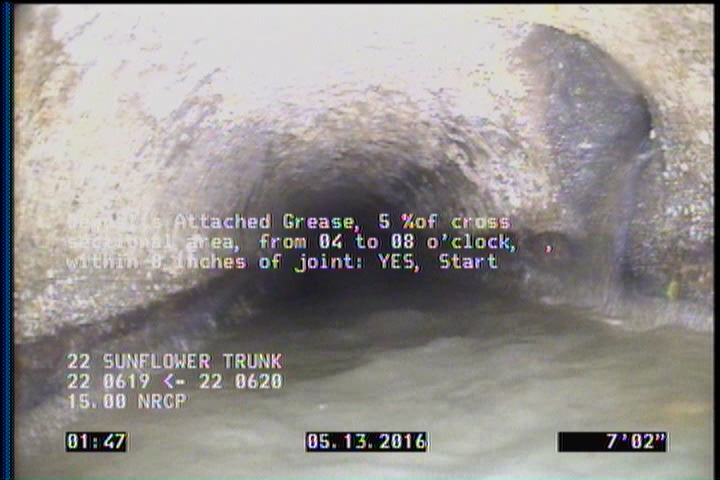

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    7.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

  • Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"

    209.9 ft. - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"

All inspections of P16968Work order 568953

Observations (25)

DistanceCodeObservation
209.9TFC—
314.9TFA—
86.4TFC—
37.3TFC—
72.3TFA—
137.2TFC—
2MGOMagnesium hydroxide coating start
0MWL—
8.9TFA—
237.4TFC—
295.8TBA—
262.9TFC—
455SAV—
7.1DAGS—
454.5DAGS—
457.4AMH22 0620
382.5TFC—
0AMH22 0619
0MWM—
165.7TFA—
338.8TFC—
2SAV—
457.4MGOCONNECTION AT THE MH 3 O'CLOCK
187.5TFC—
363.2TFC—

Properties (4)

additional_info
SC305349
custom_field_two
3
customer
LACSD
datetime
2016-05-12T13:46:09-07:00
