Wastewater/Activity/PacpInspection/1.0May 6, 2016, 10:27 AM
29 0003_29 0002_06052016_032719.mp4
- Date
- 05/06/2016
- W/O
- 568581
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00849
- PipeID
- P17677
- Time
- 3:27 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3365
- Sewer Name
- 29 SIGNAL HILL OUTFALL TRUNK
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 19
- Purpose
- Routine Assessment
- Project
- WO_568581_TV29087_MAY2016
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 29 0003
- Downstream MH
- 29 0002
- Dir. of Survey
- Downstream
- Length Surveyed
- 332.2 ft.
- Total Length
- 332.2 ft.
- Structural Index
- 3
- Structural Quick
- 5131
- Structural Rating
- 10
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (3)

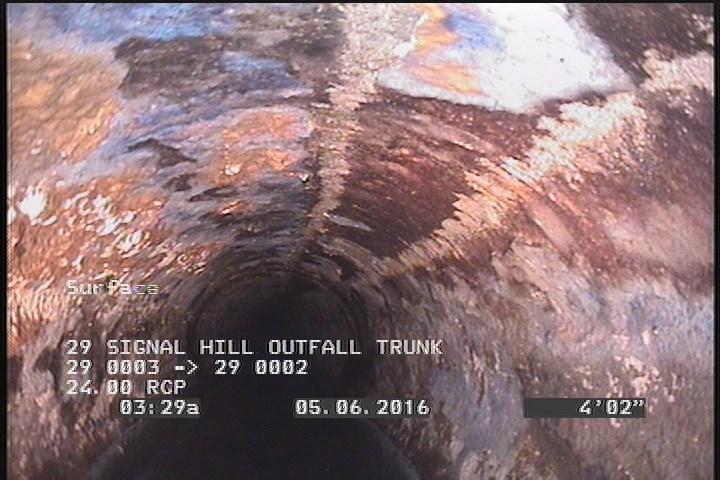

4.2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start

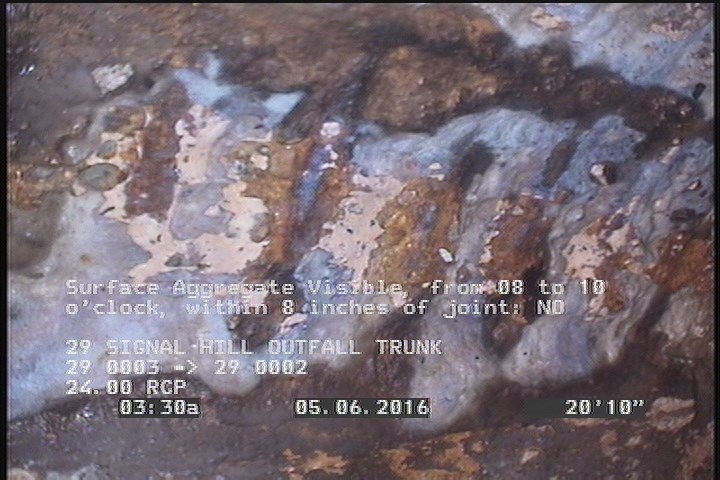

20.8 ft. - Surface Aggregate Visible, from 08 to 10 o'clock, within 8 inches of joint: NO

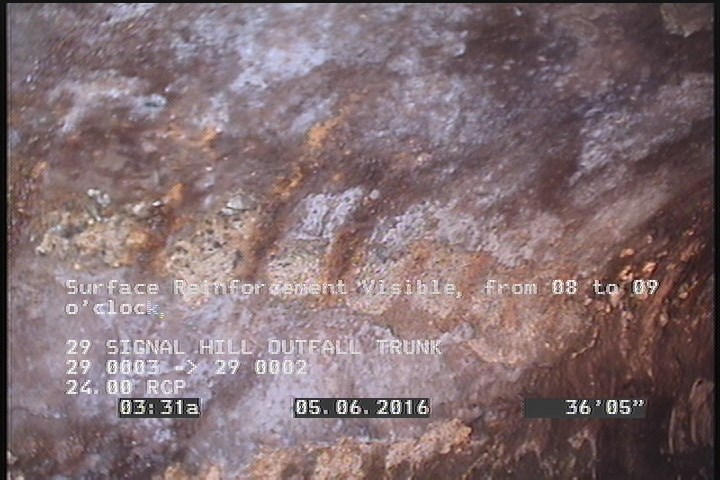

36.4 ft. - Surface Reinforcement Visible, from 08 to 09 o'clock, within 8 inches of joint: NO, Start - SPORADICALLY
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 29 0003 |
| 20.8 | SAV | — |
| 201.7 | SSS | — |
| 0 | MWM | — |
| 4.2 | SSS | — |
| 201.7 | SRV | — |
| 36.4 | SRV | SPORADICALLY |
| 332.2 | AMH | 29 0002 |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC300362
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-05-06T03:27:00-07:00
