Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 1, 2016, 11:39 AM

  • B 0292_B 0291_01042016_044013.mp4

Date
04/01/2016
W/O
563385
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00083
PipeID
P08783
Time
4:39 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3303
Sewer Name
B JOINT OUTFALL B - UNIT 1J
City
ROSEMEAD
Loc. details
Main Highway - Suburban/Rural
Location Code
B
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
21
Purpose
Routine Assessment
Project
WO_563385_TV15176_APRIL2016
Sewer Type
GRAVITY
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Upstream MH
B 0292
Downstream MH
B 0291
Dir. of Survey
Downstream
Length Surveyed
92.2 ft.
Total Length
92.2 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
2
O&M Quick
2C00
O&M Rating
42
Overall Index
2
Overall Quick
—
Overall Rating
47
Pipe schematic from manhole B 0292 to B 0291
MH: B 0292MH: B 0291downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. AMH - Upstream Manhole, Survey Begins - B 02922 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start45.4 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES53.9 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES78.5 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start91.3 ft. MGO - General Observation - COCKROACHES IN MANHOLE91.3 ft. MGO - General Observation - CONNECTION AT MH 12 O'CLOCK91.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish91.3 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish92.2 ft. AMH - Downstream Manhole, Survey Ends - B 0291

Observation photos (6)

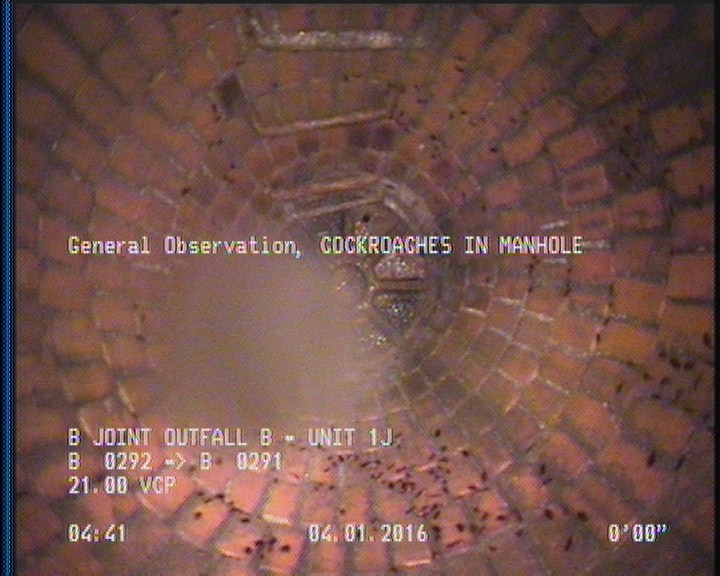

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

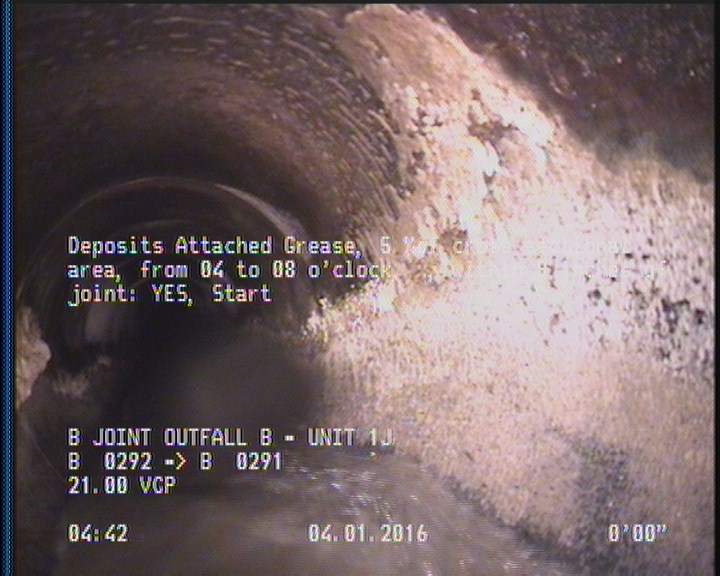

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

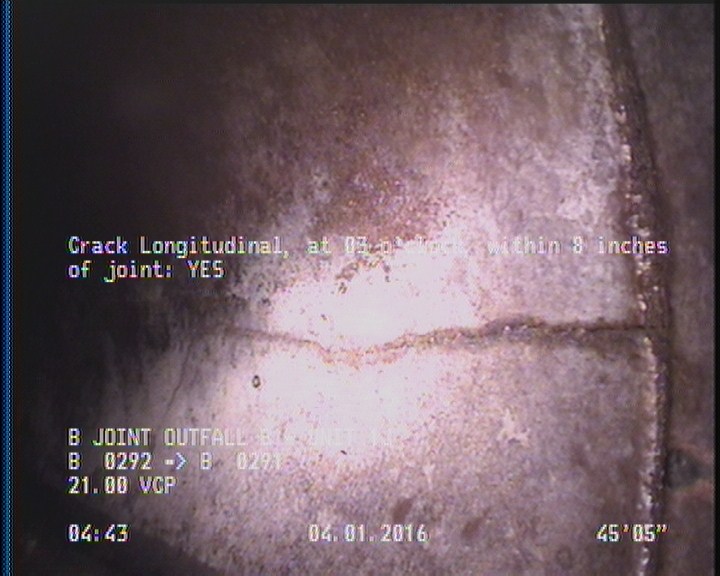

  • Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    45.4 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

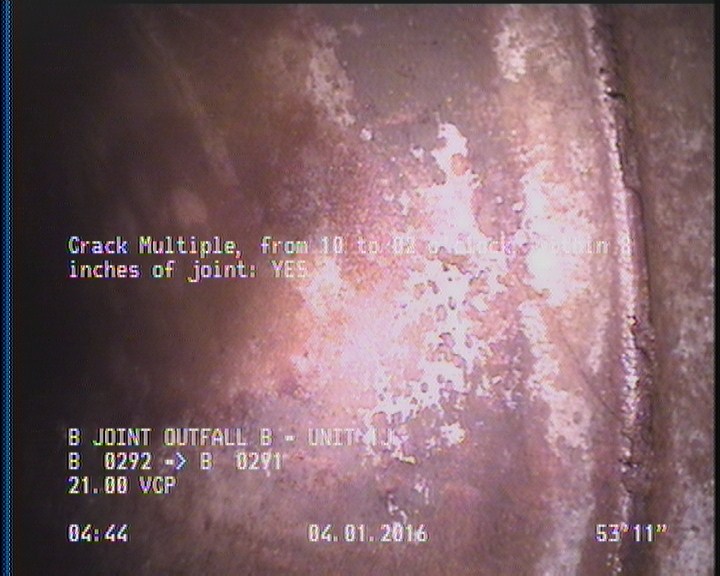

  • Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

    53.9 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

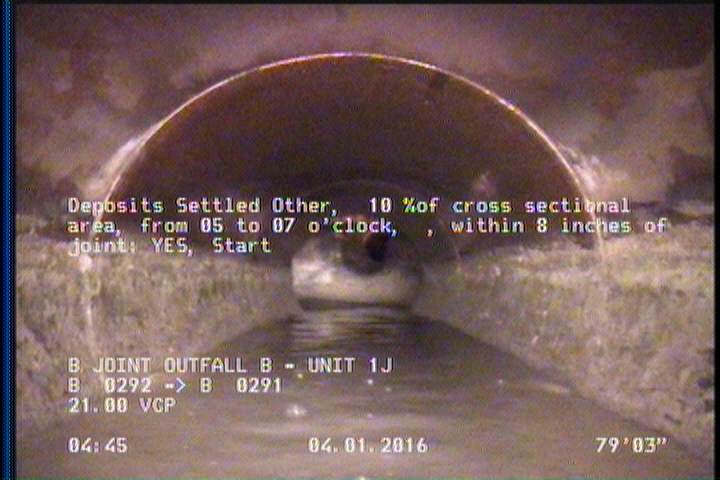

  • Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

    78.5 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

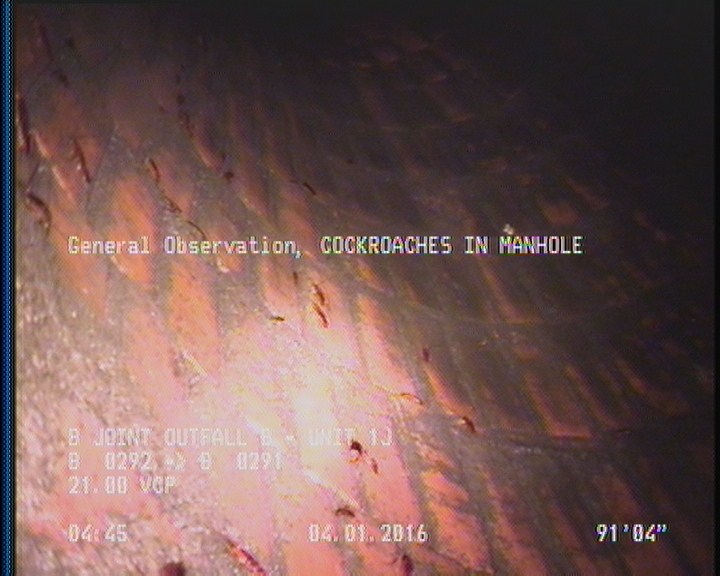

  • General Observation - COCKROACHES IN MANHOLE

    91.3 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P08783Work order 563385

Observations (14)

DistanceCodeObservation
2DAGS—
91.3MGOCOCKROACHES IN MANHOLE
53.9CM—
91.3MGOCONNECTION AT MH 12 O'CLOCK
0MWL—
0MGOCOCKROACHES IN MANHOLE
91.3DAGS—
78.5DSZ—
0MWM—
45.4CL—
92.2AMHB 0291
0MGOCOCKROACHES IN MANHOLE
91.3DSZ—
0AMHB 0292
