Wastewater/Activity/PacpInspection/1.0Apr 4, 2016, 08:29 AM
B 0299_B 0298_04042016_013215.mp4
- Date
- 04/04/2016
- W/O
- 563385
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00083
- PipeID
- P08790
- Time
- 1:29 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3304
- Sewer Name
- B JOINT OUTFALL B - UNIT 1J
- City
- ROSEMEAD
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- WO_563385_TV15176_APRIL2016
- Sewer Type
- GRAVITY
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Upstream MH
- B 0299
- Downstream MH
- B 0298
- Dir. of Survey
- Downstream
- Length Surveyed
- 218.1 ft.
- Total Length
- 218.1 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (4)

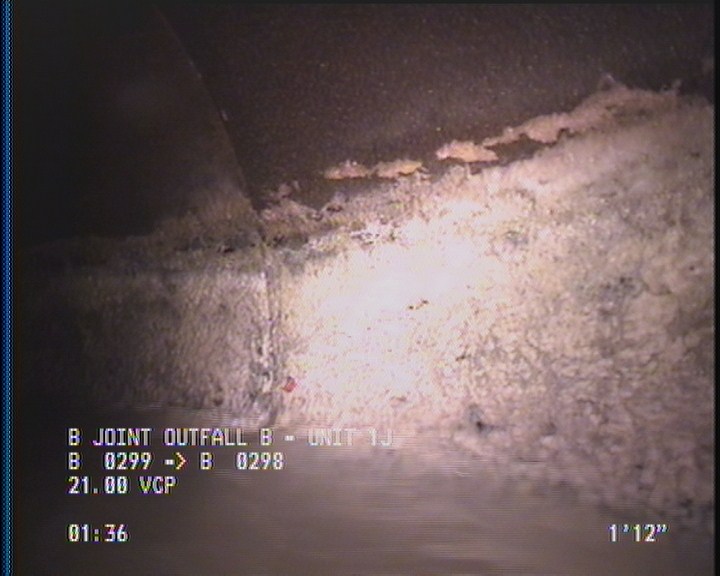

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

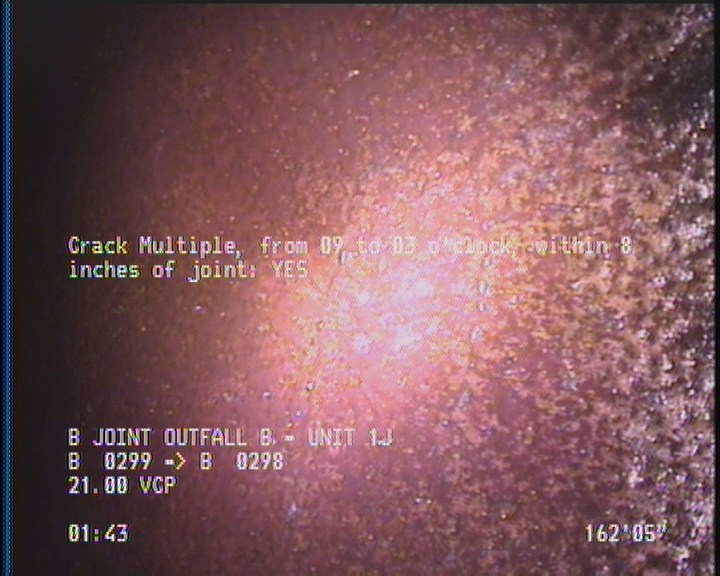

162.4 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

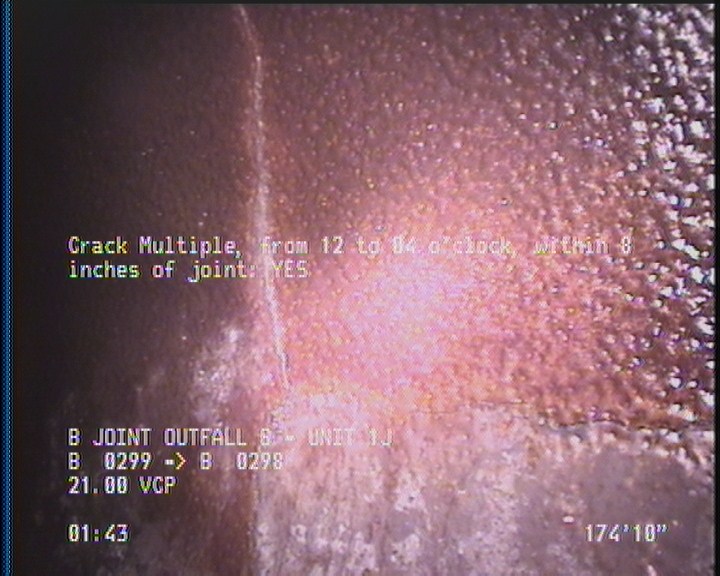

174.8 ft. - Crack Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES

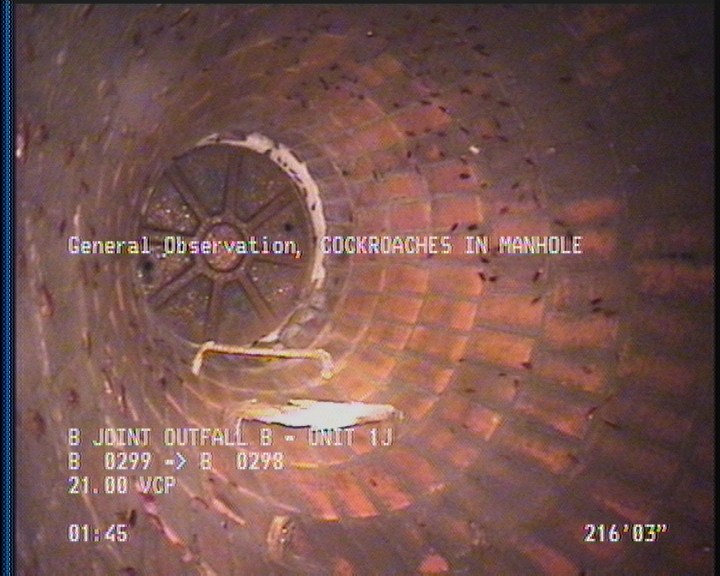

216.2 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 216.2 | DAGS | — |
| 174.8 | CM | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 144.5 | TFC | — |
| 2 | DAGS | — |
| 0 | MWM | — |
| 162.4 | CM | — |
| 216.2 | MGO | COCKROACHES IN MANHOLE |
| 0 | MWL | — |
| 218.1 | AMH | B 0298 |
| 0 | AMH | B 0299 |
| 47.1 | TFC | — |
Properties (4)
- additional_info
- SC305430
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-04-04T01:29:35-07:00
