Wastewater/Activity/PacpInspection/1.0Apr 26, 2016, 10:52 AM
C 0365_C 0364_26042016_035301.mp4
- Date
- 04/26/2016
- W/O
- 563382
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00140
- PipeID
- P09828
- Time
- 3:52 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3326
- Sewer Name
- C JOINT OUTFALL C - UNIT 8B
- City
- HAWAIIAN GARDENS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 19
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_563382_TV19020_APRIL2016
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 39 in.
- Upstream MH
- C 0365
- Downstream MH
- C 0364
- Dir. of Survey
- Downstream
- Length Surveyed
- 555.1 ft.
- Total Length
- 555.1 ft.
- Structural Index
- 3
- Structural Quick
- 3U2U
- Structural Rating
- 548
- O&M Index
- 2
- O&M Quick
- 2U00
- O&M Rating
- 222
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 770
Observation photos (4)

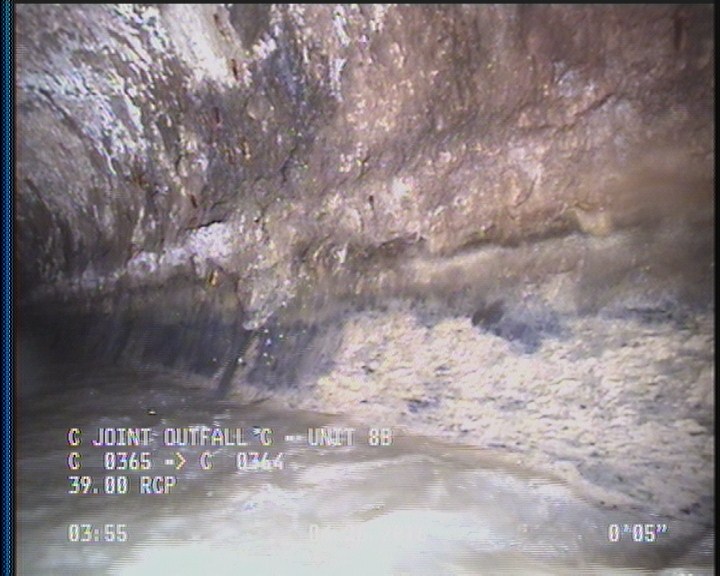

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

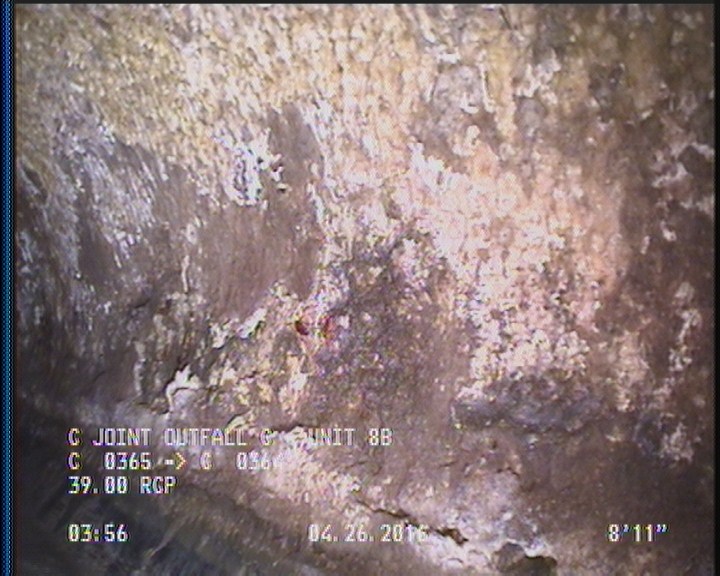

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

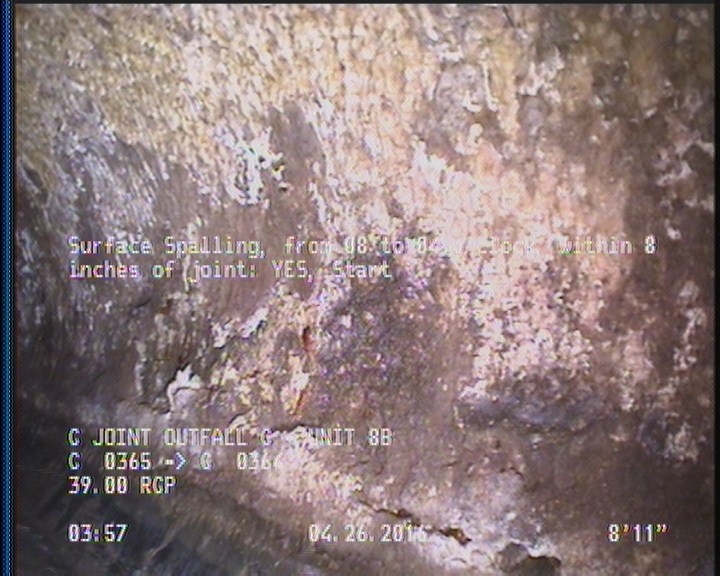

8.9 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

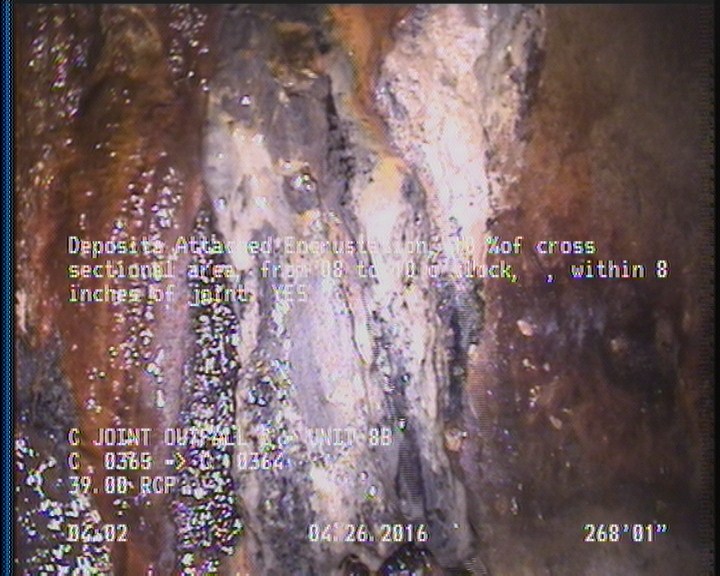

268.1 ft. - Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 10 o'clock, , within 8 inches of joint: YES
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 555.1 | AMH | C 0364 |
| 2 | DAGS | — |
| 0 | AMH | C 0365 |
| 553.4 | SAP | — |
| 268.1 | TBA | — |
| 553.4 | SSS | — |
| 268.1 | DAE | — |
| 2 | SAP | — |
| 553.4 | DAGS | — |
| 0 | MWM | — |
| 8.9 | SSS | — |
Properties (4)
- additional_info
- SC305604
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-04-26T03:52:46-07:00
