Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 16, 2016, 09:02 AM

  • H 0580_H 0579_16052016_020256.mp4

Date
05/16/2016
W/O
568672
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00188
PipeID
P11004
Time
2:02 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3349
Sewer Name
H JOINT OUTFALL H - UNIT 8E
City
BALDWIN PARK
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
19
Purpose
Routine Assessment
Project
RFIR_WO_568672_TV15172_MAY2016
Sewer Type
GRAVITY
Material
Reinforced Concrete Pipe
Shape
Circular
Height
27 in.
Upstream MH
H 0580
Downstream MH
H 0579
Dir. of Survey
Downstream
Length Surveyed
277.6 ft.
Total Length
277.6 ft.
Structural Index
3
Structural Quick
413J
Structural Rating
274
O&M Index
2
O&M Quick
412J
O&M Rating
114
Overall Index
2
Overall Quick
—
Overall Rating
388
Pipe schematic from manhole H 0580 to H 0579
MH: H 0580MH: H 0579downstream0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - H 05802 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start4.7 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start4.7 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start10.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"19 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"55.5 ft. H - Hole, from 11 to 01 o'clock, within 8 inches of joint: YES172.4 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"213.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"221.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"275.8 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish275.8 ft. MGO - General Observation - COCKROACHES IN MANHOLE275.8 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish275.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish277.6 ft. MGO - General Observation - COCKROACHES IN MANHOLE277.6 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK277.6 ft. AMH - Downstream Manhole, Survey Ends - H 0579

Observation photos (6)

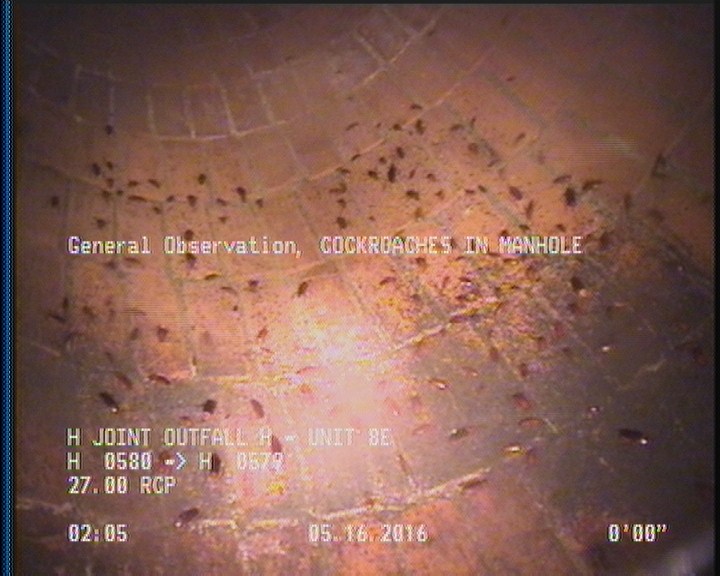

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

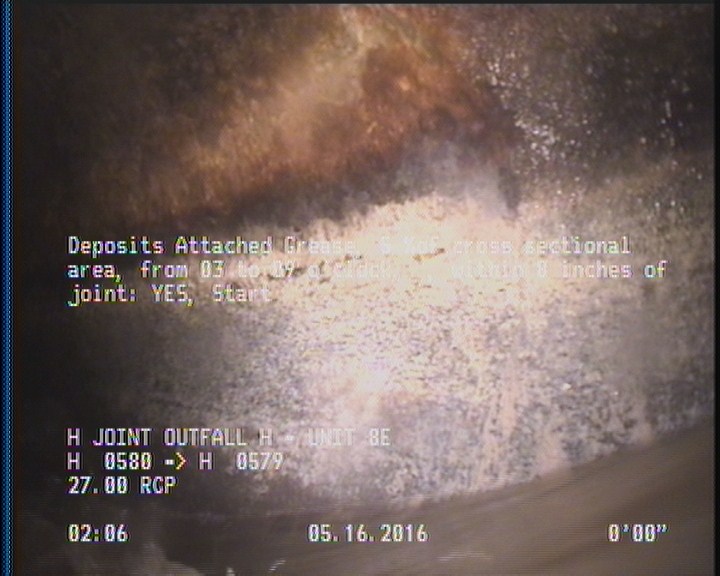

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

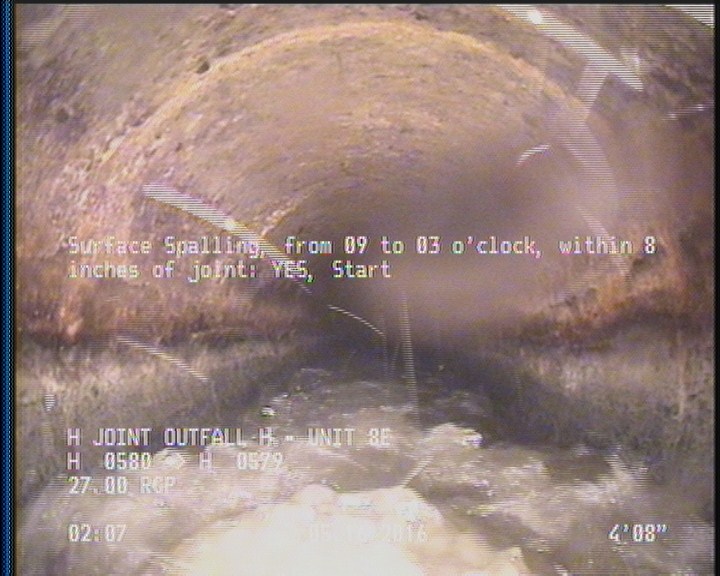

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    4.7 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

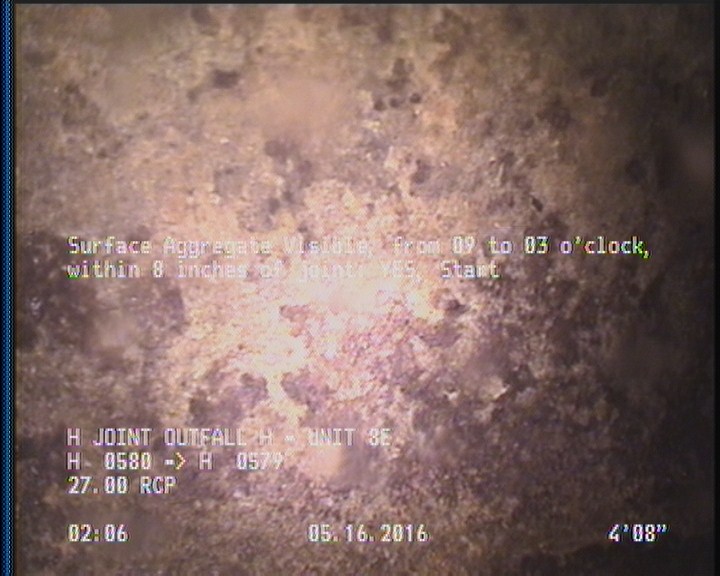

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    4.7 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

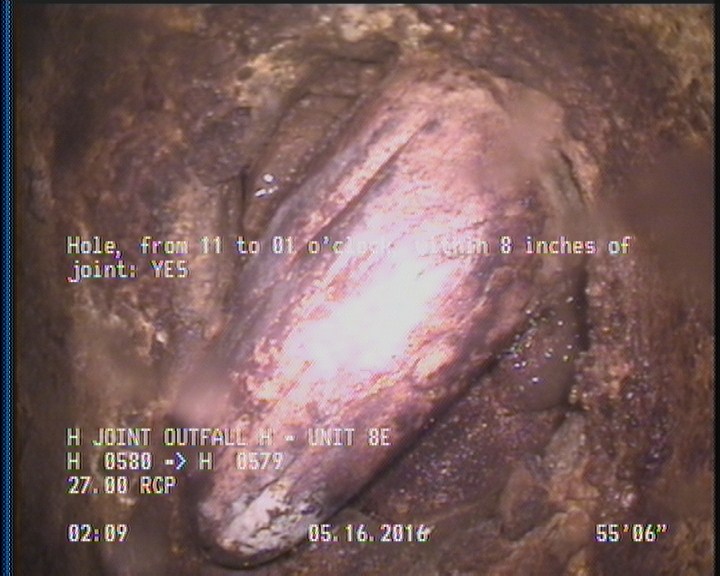

  • Hole, from 11 to 01 o'clock, within 8 inches of joint: YES

    55.5 ft. - Hole, from 11 to 01 o'clock, within 8 inches of joint: YES

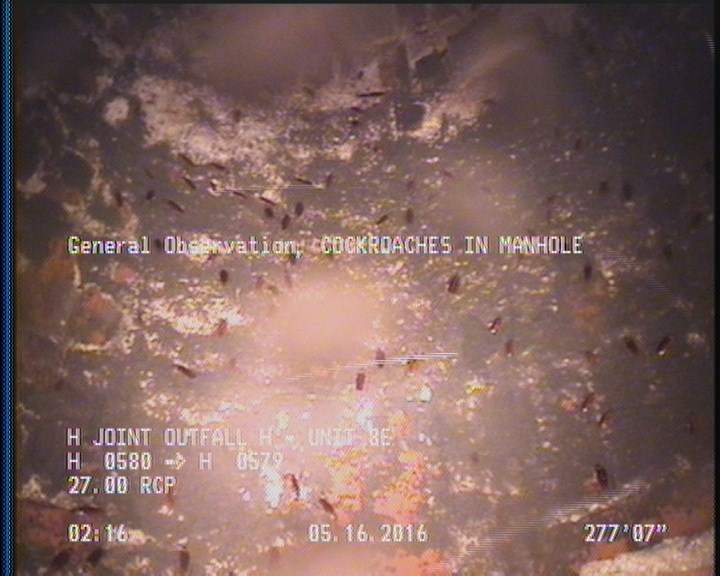

  • General Observation - COCKROACHES IN MANHOLE

    277.6 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P11004Work order 568672

Observations (21)

DistanceCodeObservation
2DAGS—
275.8SSS—
0MWM—
275.8MGOCOCKROACHES IN MANHOLE
0MWL—
10.7TFC—
0MGOCOCKROACHES IN MANHOLE
275.8SAV—
55.5H—
213.4TFC—
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK
172.4TBA—
0AMHH 0580
277.6MGOCOCKROACHES IN MANHOLE
277.6MGOACTIVE CONNECTION AT MH 3 O'CLOCK
4.7SSS—
19TFC—
4.7SAV—
275.8DAGS—
221.9TFC—
277.6AMHH 0579

Properties (4)

additional_info
SC305629
custom_field_two
3
customer
LACSD
datetime
2016-05-16T02:02:36-07:00
