Wastewater/Activity/PacpInspection/1.0Jun 29, 2016, 11:46 PM
H 0667_H 0666_20160714_014929.mp4
- Date
- 06/29/2016
- W/O
- 574527
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00941
- PipeID
- P11074
- Time
- 4:46 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3613
- Sewer Name
- H JOINT OUTFALL H - UNIT 9B
- City
- PICO RIVERA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- WO_574527_TV18074_JULY2016
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 28 in.
- Width
- 28 in.
- Upstream MH
- H 0667
- Downstream MH
- H 0666
- Dir. of Survey
- Downstream
- Length Surveyed
- 402.1 ft.
- Total Length
- 402.1 ft.
- Structural Index
- 2
- Structural Quick
- 2O00
- Structural Rating
- 160
- O&M Index
- 2
- O&M Quick
- 2_00
- O&M Rating
- 318
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 478
Observation photos (3)

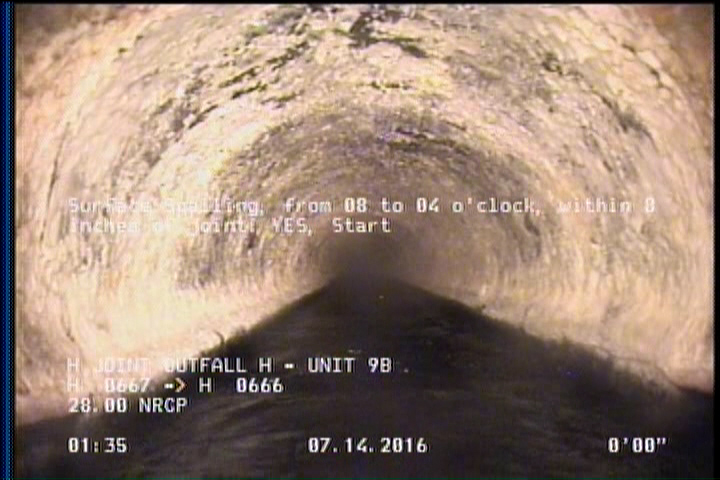

0 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - LIGHT AMOUNT

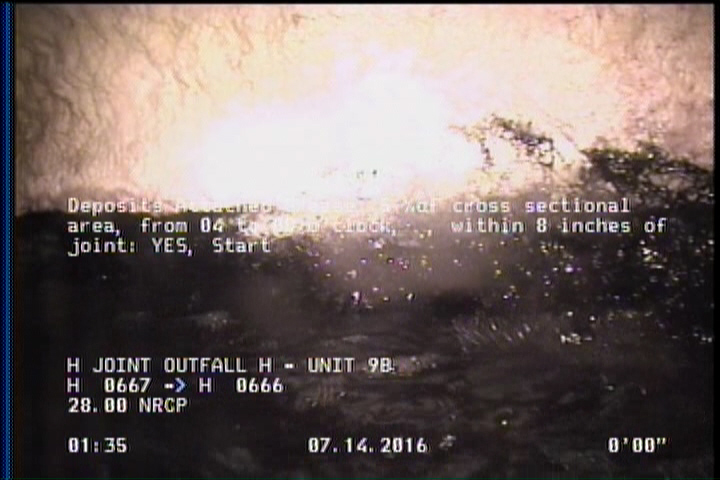

0 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

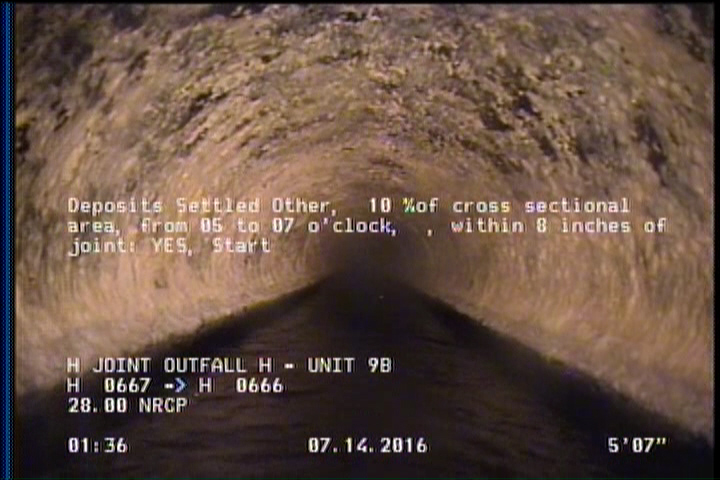

5.1 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - OTHER
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | SSS | LIGHT AMOUNT |
| 400 | SSS | — |
| 0 | MWL | — |
| 402.1 | AMH | H 0666 RUN LIST STATES MH AT 496' |
| 400 | DSZ | OTHER |
| 0 | DAGS | — |
| 0 | MWM | — |
| 0 | AMH | H 0667 |
| 0 | MGO | MAG COATING 85% |
| 5.1 | DSZ | OTHER |
| 400 | DAGS | — |
Properties (4)
- additional_info
- SC305792
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-06-29T16:46:40-07:00
