Wastewater/Activity/PacpInspection/1.0Apr 17, 2018, 06:03 PM
Section#3_03 0218A_03 0218__4172018__G6987.mp4
- Date
- 04/17/2018
- W/O
- 0672783
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00387
- PipeID
- P04819
- Time
- 11:03 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6987
- Sewer Name
- 03 NORTH LONG BEACH TRUNK
- City
- LONG BEACH
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- 20180417DF_NORTH_LONG_BEACH_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 30 in.
- Upstream MH
- 03 0218A
- Downstream MH
- 03 0218
- Dir. of Survey
- Downstream
- Length Surveyed
- 184.9 ft.
- Total Length
- 184.9 ft.
- Structural Index
- 2
- Structural Quick
- 3F2G
- Structural Rating
- 184
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 186
Observation photos (5)

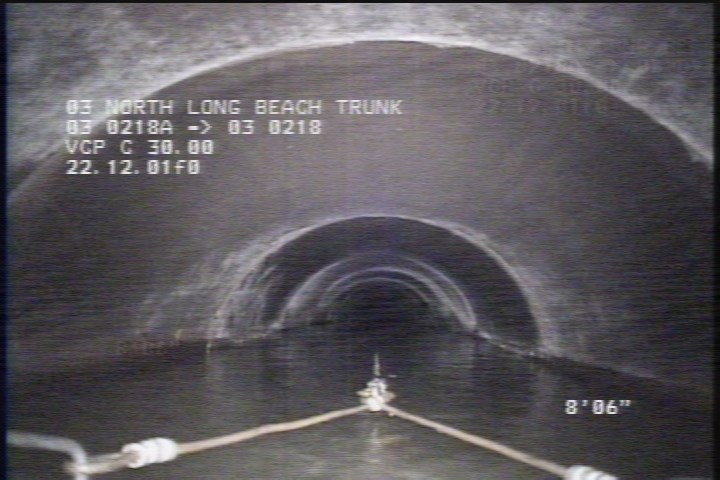

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

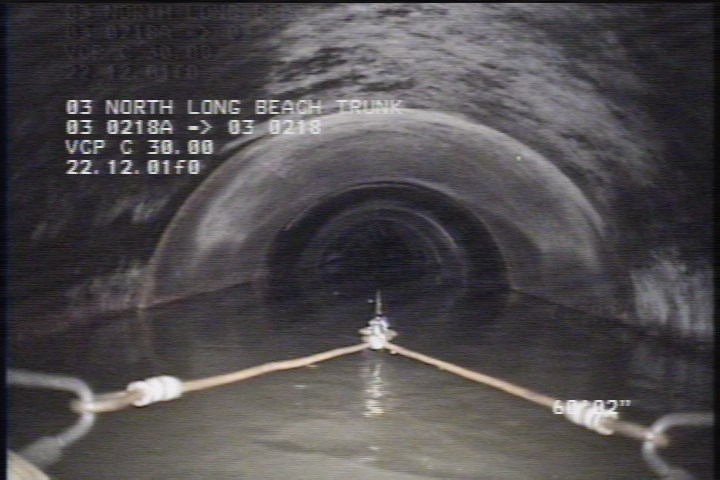

60.1 ft. - General Photograph

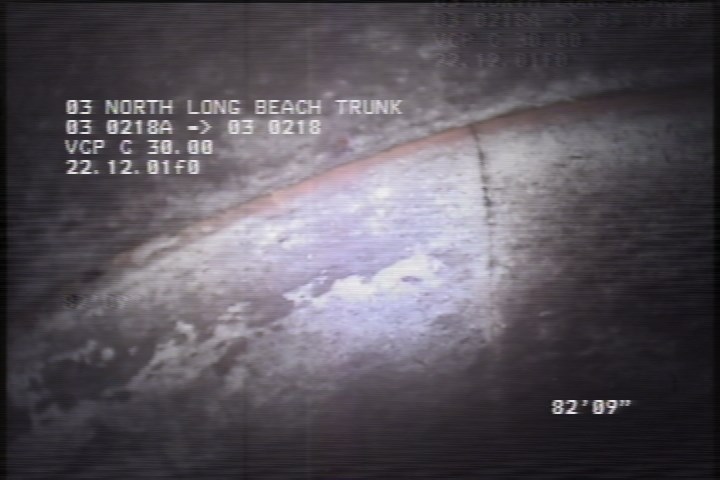

82.8 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

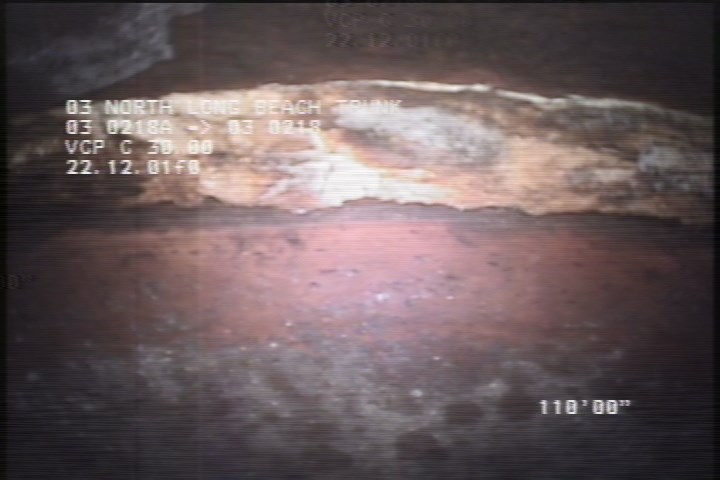

110 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 12 to 04 o'clock, , within 8 inches of joint: YES

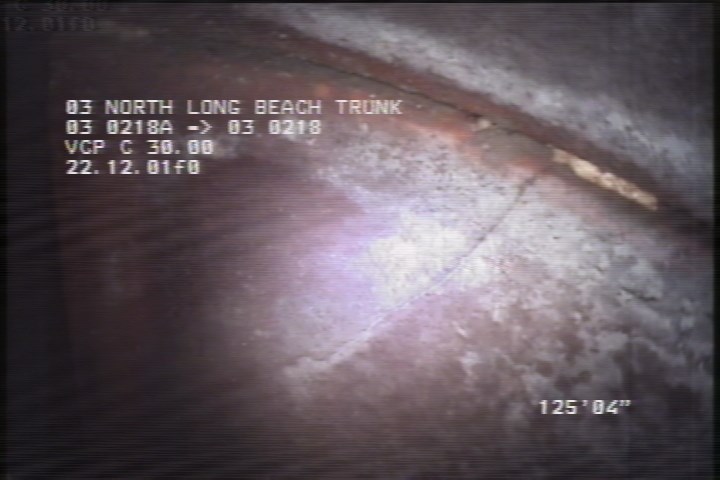

125.3 ft. - Crack Spiral, from 07 to 09 o'clock, within 8 inches of joint: YES
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 2 | CM | — |
| 0.1 | MWM | — |
| 0.1 | MWL | — |
| 183 | SSS | — |
| 125.3 | CS | — |
| 0.1 | MGO | CONN @ MH 9 O'CLOCK/ACTIVE |
| 183 | CM | — |
| 184.9 | AMH | 12:09 PM |
| 2 | SSS | — |
| 82.8 | CL | — |
| 110 | DAGS | — |
| 60.1 | MGP | — |
| 0 | AMH | 11:56 AM |
Properties (3)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-04-17T11:03:24-07:00
