Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 29, 2018, 10:34 AM

  • 15 0109_15 0108 _29032018_034909.mp4

Date
03/29/2018
W/O
1590881
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00590
PipeID
P11987
Time
3:34 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5514
Sewer Name
15 ABBEY STREET TRUNK
City
LA PUENTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
38
Purpose
Routine Assessment
Project
WO_690161_TV15204_MAR2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
15 0109
Downstream MH
15 0108
Dir. of Survey
Downstream
Length Surveyed
342.3 ft.
Total Length
342.3 ft.
Structural Index
3
Structural Quick
3423
Structural Rating
18
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
18
Pipe schematic from manhole 15 0109 to 15 0108
MH: 15 0109MH: 15 0108downstream0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 8 O'CLOCK0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 15 010911.6 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES17.6 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES26.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES35.9 ft. FL - Fracture Longitudinal, at 04 o'clock, within 8 inches of joint: YES38.9 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES41.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start55.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"112.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"121.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"159.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"195.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"213.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"252.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"341 ft. MGO - General Observation - 5% GREASE THROUGHOUT THE REACH, FROM 03 TO 09 O'CLOCK342.3 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK342.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish342.3 ft. AMH - Downstream Manhole, Survey Ends - 15 0108

Observation photos (6)

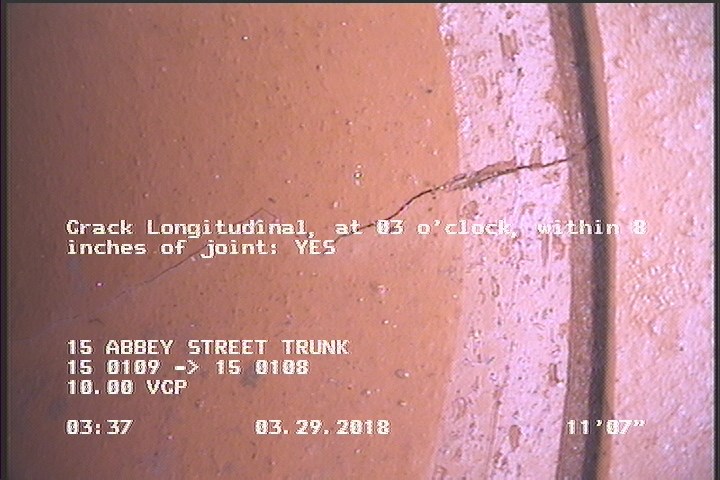

  • Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    11.6 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

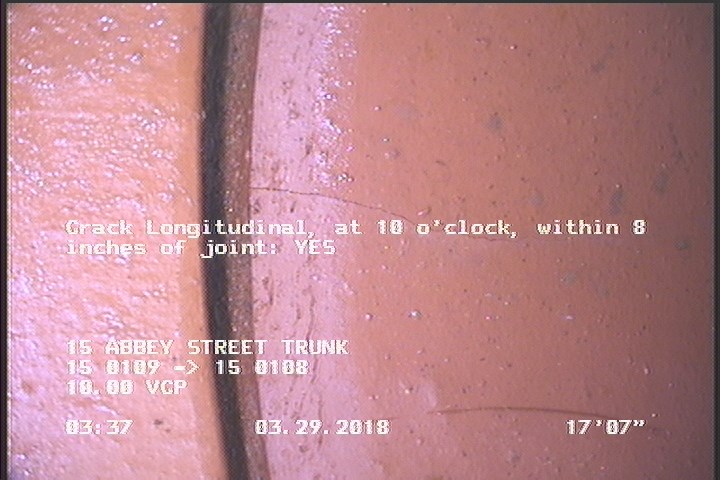

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    17.6 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

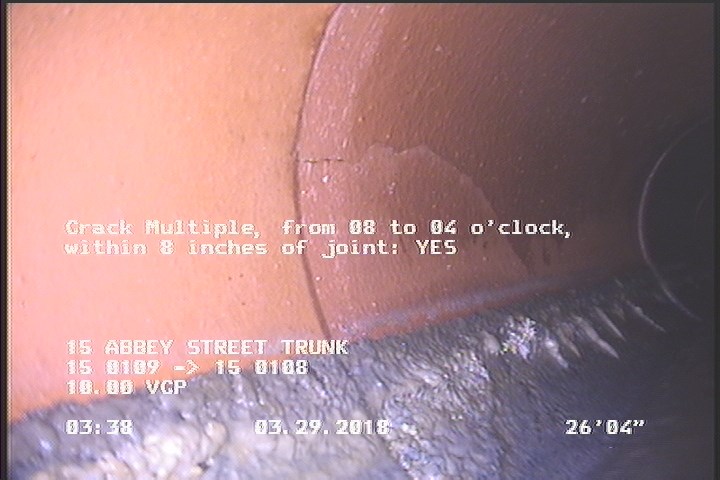

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    26.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

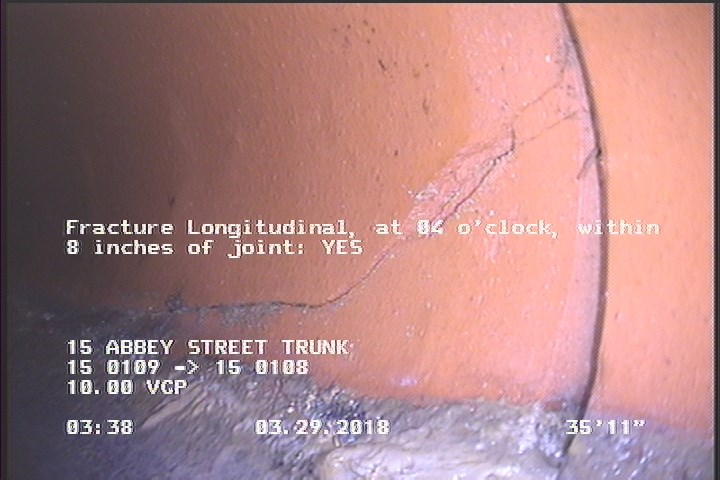

  • Fracture Longitudinal, at 04 o'clock, within 8 inches of joint: YES

    35.9 ft. - Fracture Longitudinal, at 04 o'clock, within 8 inches of joint: YES

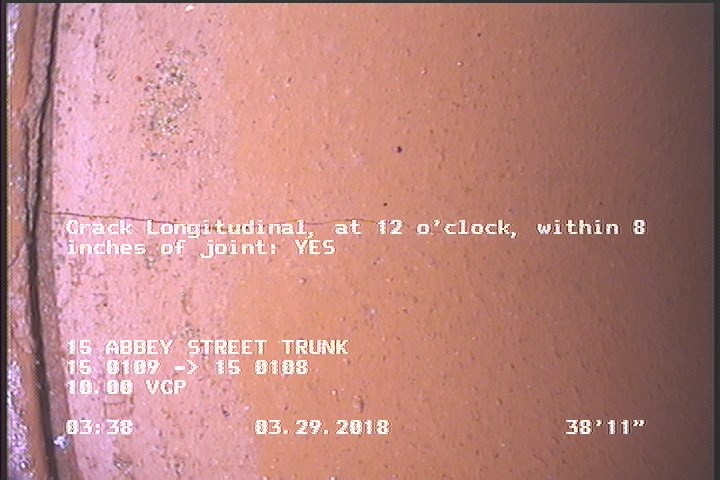

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    38.9 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

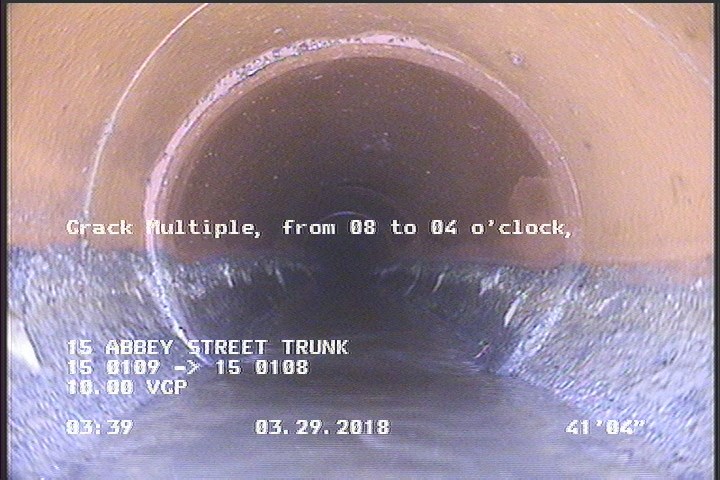

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    41.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P11987Work order 1590881

Observations (23)

DistanceCodeObservation
0MWM—
55.1TFC—
35.9FL—
342.3MGOCONNECTION AT MH 9 O'CLOCK
341MGO5% GREASE THROUGHOUT THE REACH, FROM 03 TO 09 O'CLOCK
195.9TF—
38.9CL—
252.4TF—
0MGOCONNECTION AT MH 8 O'CLOCK
0MWL—
26.3CM—
342.3CM—
11.6CL—
0MGOCONNECTION AT MH 3 O'CLOCK
213.5TF—
159.9TF—
0MGOCONNECTION AT MH 9 O'CLOCK
0AMH15 0109
342.3AMH15 0108
41.3CM—
112.3TF—
17.6CL—
121.2TF—

Properties (4)

additional_info
SC358720
custom_field_two
3
customer
LACSD
datetime
2018-03-29T03:34:32-07:00
