Wastewater/Activity/PacpInspection/1.0Sep 26, 2016, 09:19 AM
02 0590_02 0589 _09262016_021853.mp4
- Date
- 09/26/2016
- W/O
- 592159
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00258
- PipeID
- P03134
- Time
- 2:19 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3717
- Sewer Name
- 02 EAST COMPTON BOULEVARD EXTENSION TRUNK
- City
- BELLFLOWER, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- WO_592159_TV02289_SEP2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 0590
- Downstream MH
- 02 0589
- Dir. of Survey
- Downstream
- Length Surveyed
- 33.6 ft.
- Total Length
- 33.6 ft.
- Structural Index
- 2
- Structural Quick
- 3122
- Structural Rating
- 7
- O&M Index
- 2
- O&M Quick
- 2500
- O&M Rating
- 10
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 17
Observation photos (4)

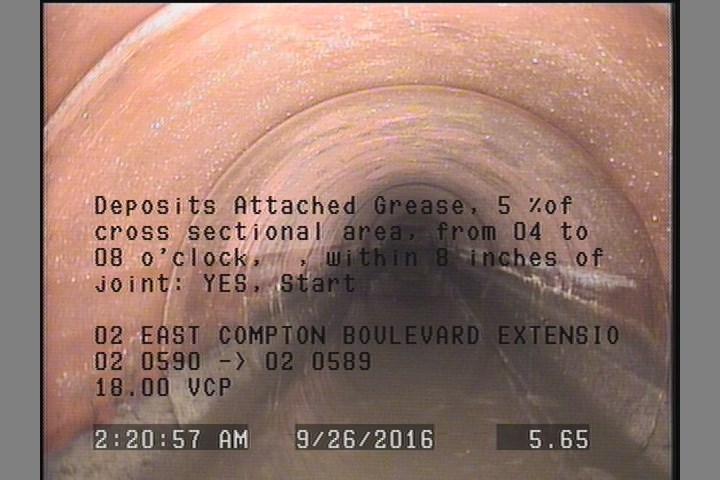

5.7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

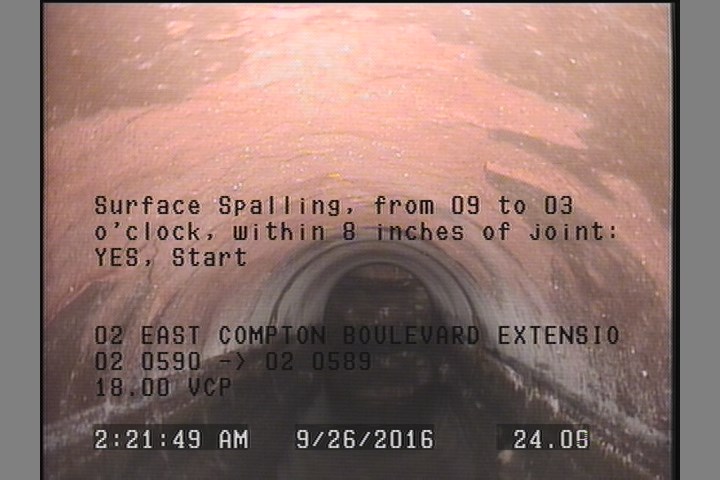

24 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

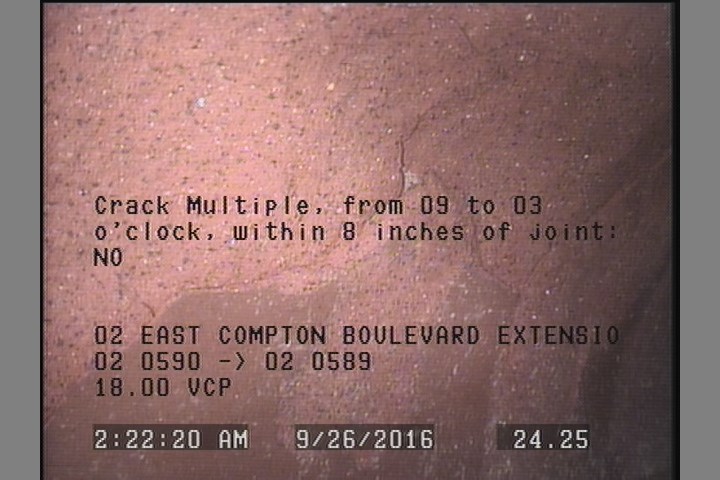

24.3 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: NO

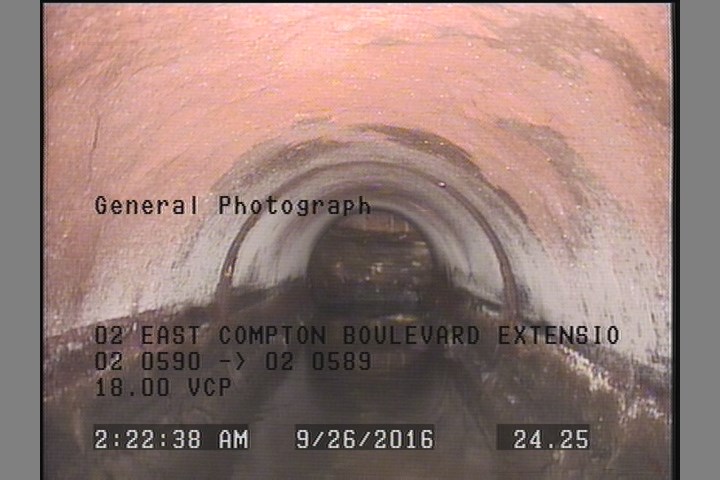

24.3 ft. - General Photograph
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 24.3 | CM | — |
| 24.3 | MGP | — |
| 33.6 | AMH | 02 0589 |
| 24 | SSS | — |
| 0 | MWM | — |
| 5.7 | DAGS | — |
| 0 | AMH | 02 0590 |
| 33.1 | SSS | — |
| 33.1 | DAGS | — |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC303703
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-09-26T02:19:00-07:00
