Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 23, 2016, 06:51 AM

  • 02 0588_02 0587 _09222016_235111.mp4

Date
09/22/2016
W/O
592159
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00258
PipeID
P03132
Time
11:51 PM
Certificate
U-507-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3716
Sewer Name
02 EAST COMPTON BOULEVARD EXTENSION TRUNK
City
BELLFLOWER, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
36
Purpose
Routine Assessment
Project
WO_592159_TV02289_SEP2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
02 0588
Downstream MH
02 0587
Dir. of Survey
Downstream
Length Surveyed
303.5 ft.
Total Length
303.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2K00
O&M Rating
118
Overall Index
2
Overall Quick
—
Overall Rating
118
Pipe schematic from manhole 02 0588 to 02 0587
MH: 02 0588MH: 02 0587downstream0 ft. AMH - Upstream Manhole, Survey Begins - 02 05880 ft. MWL - Water Level, 20 %of cross sectional area0.1 ft. MWM - Water Mark, 30 %of cross sectional area7.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start38.2 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 4"127.5 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 4"235.9 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 4"295.1 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 4"301.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish303.4 ft. MGO - General Observation - CONNECTION AT MH 3 ACTIVE303.5 ft. AMH - Downstream Manhole, Survey Ends - 02 0587

Observation photos (1)

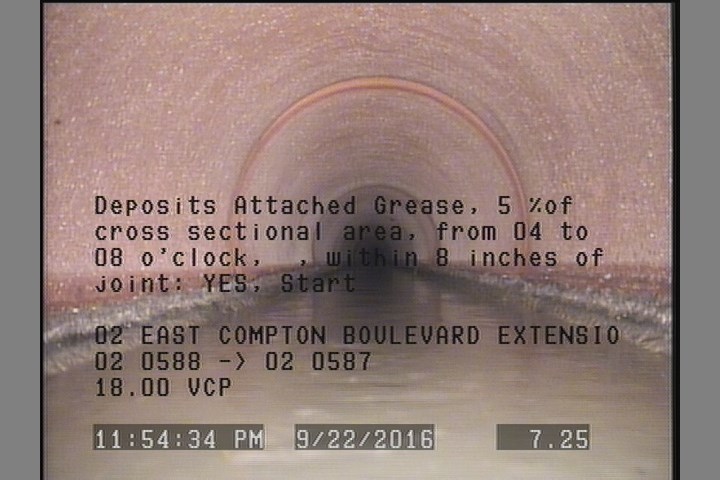

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    7.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P03132Work order 592159

Observations (11)

DistanceCodeObservation
38.2TFA—
235.9TFA—
0.1MWM—
295.1TF—
7.3DAGS—
303.4MGOCONNECTION AT MH 3 ACTIVE
303.5AMH02 0587
127.5TFA—
301.1DAGS—
0AMH02 0588
0MWL—

Properties (4)

additional_info
SC303702
custom_field_two
4
customer
LACSD
datetime
2016-09-22T23:51:00-07:00
