Wastewater/Activity/PacpInspection/1.0Sep 23, 2016, 10:14 AM
02 0596_02 0595 _09232016_031445.mp4
- Date
- 09/23/2016
- W/O
- 592159
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00258
- PipeID
- P03140
- Time
- 3:14 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3716
- Sewer Name
- 02 EAST COMPTON BOULEVARD EXTENSION TRUNK
- City
- BELLFLOWER, CA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- WO_592159_TV02289_SEP2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 0595
- Downstream MH
- 02 0596
- Dir. of Survey
- Upstream
- Length Surveyed
- 343.8 ft.
- Total Length
- 343.8 ft.
- Structural Index
- 2
- Structural Quick
- 3526
- Structural Rating
- 27
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 130
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 157
Observation photos (5)

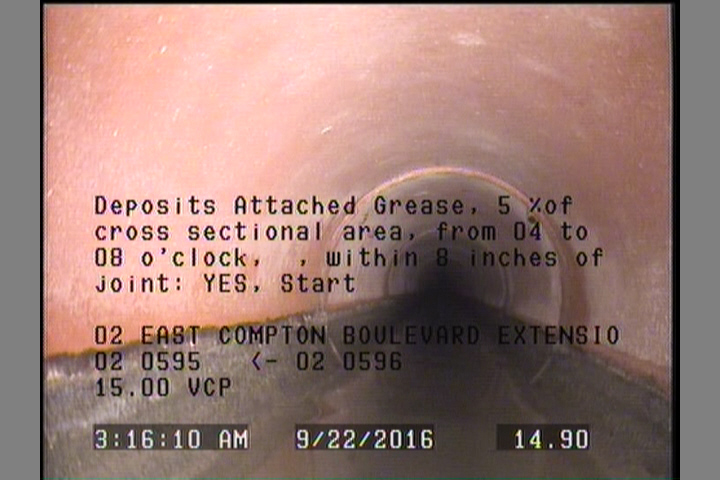

14.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

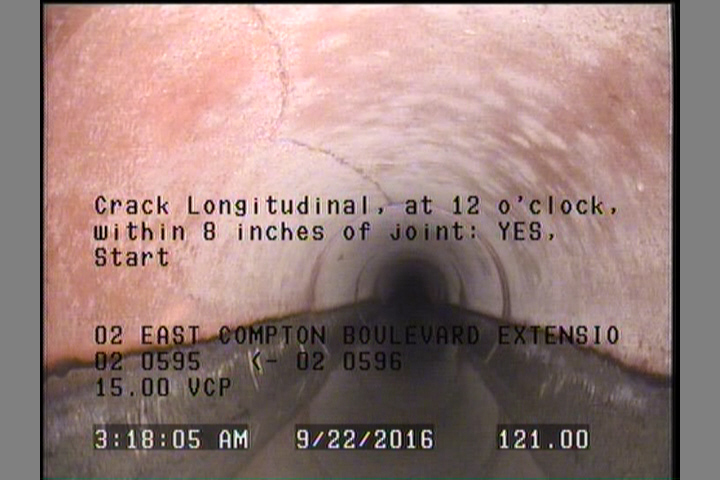

121 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start
257.1 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

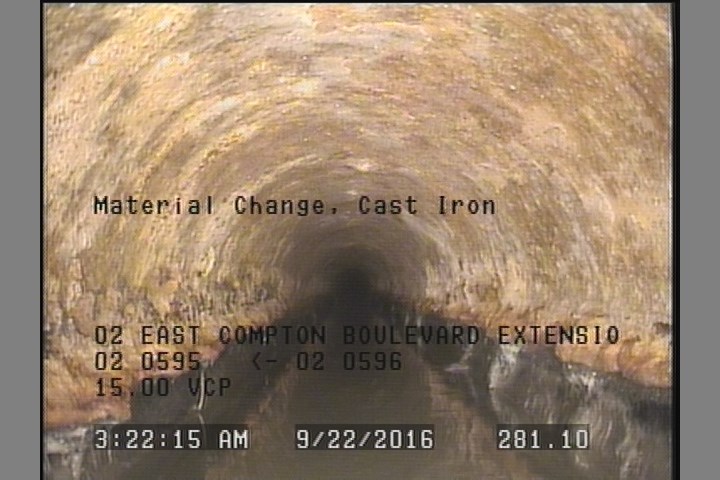

281.1 ft. - Material Change, Cast Iron

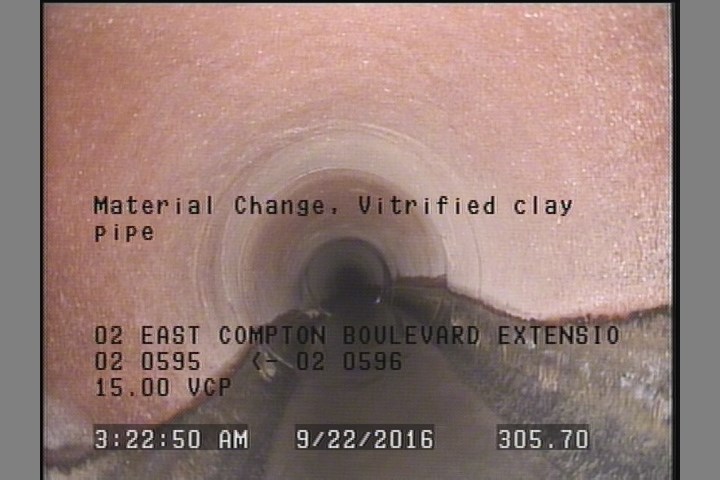

305.7 ft. - Material Change, Vitrified clay pipe
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 149 | CL | — |
| 343.7 | MGO | CONNECTION AT MH 3 ACTIVE |
| 96.8 | TF | — |
| 0 | AMH | 02 0595 |
| 343.8 | AMH | 02 0596 |
| 121 | CL | — |
| 281.1 | MMC | — |
| 257.1 | FL | — |
| 343.8 | MGO | CONNECTION AT MH 9 ACTIVE |
| 0 | MWM | — |
| 280.9 | FL | — |
| 341.3 | DAGS | — |
| 305.7 | MMC | — |
| 0 | MWL | — |
| 14.9 | DAGS | — |
| 200.5 | TFA | — |
Properties (4)
- additional_info
- SC303702
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-09-23T03:14:00-07:00
