Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 28, 2016, 09:37 AM

  • 03 0543_03 0542_28092016_023852.mp4

Date
09/28/2016
W/O
591979
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00367
PipeID
P04993
Time
2:37 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K 3592
Sewer Name
03 LOS COYOTES DIAGONAL RELIEF TRUNK
City
LAKEWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
09
Purpose
Routine Assessment
Project
WO_591979_TV03153_SEP2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
03 0543
Downstream MH
03 0542
Dir. of Survey
Downstream
Length Surveyed
411.5 ft.
Total Length
411.5 ft.
Structural Index
4
Structural Quick
4100
Structural Rating
4
O&M Index
2
O&M Quick
2E00
O&M Rating
64
Overall Index
2
Overall Quick
—
Overall Rating
68
Pipe schematic from manhole 03 0543 to 03 0542
MH: 03 0543MH: 03 0542downstream0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 03 05430 ft. MWM - Water Mark, 20 %of cross sectional area173.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES252.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start407.1 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES410.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Finish411.5 ft. AMH - Downstream Manhole, Survey Ends - 03 0542

Observation photos (3)

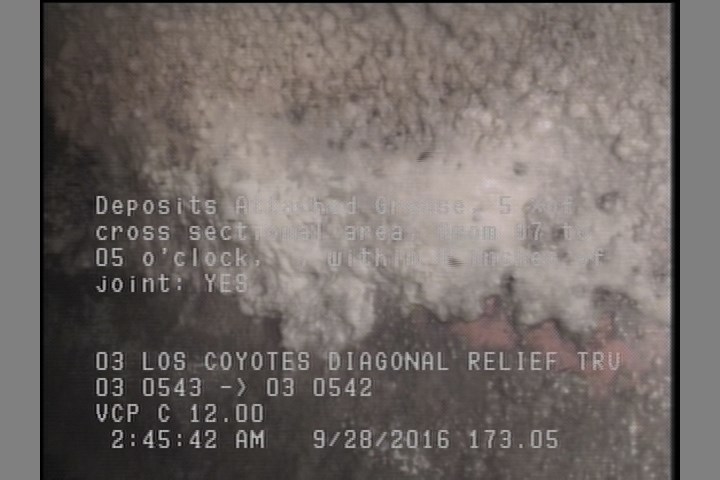

  • Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES

    173.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES

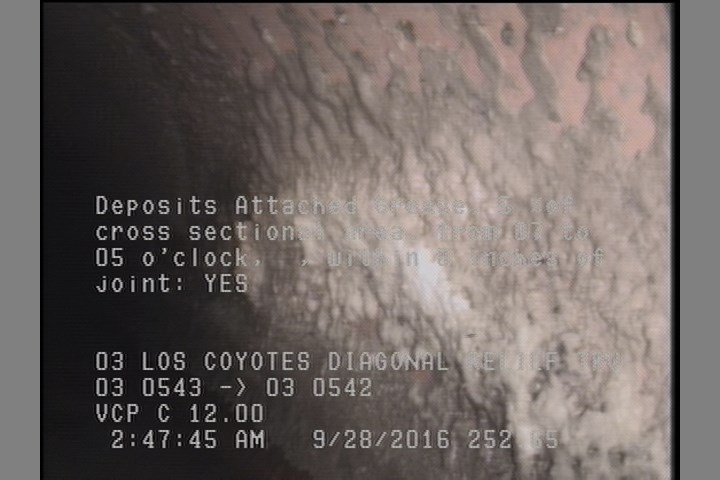

  • Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start

    252.7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start

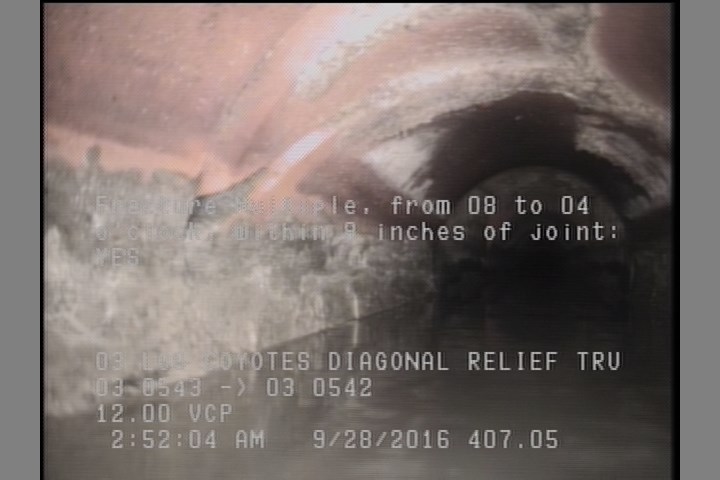

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    407.1 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

All inspections of P04993Work order 591979

Observations (9)

DistanceCodeObservation
407.1FM—
0MGOCONNECTION AT MH 9 O'CLOCK
0MWL—
0AMH03 0543
252.7DAGS—
173.1DAGS—
411.5AMH03 0542
0MWM—
410.1DAGS—

Properties (5)

additional_info
SC306187
custom_field_two
4
customer
LACSD
datetime
2016-09-28T02:37:20-07:00
year_laid
30845
