Wastewater/Activity/PacpInspection/1.0Jun 27, 2016, 11:19 AM
15 0963_15 0961 _27062016_045833.mp4
- Date
- 06/27/2016
- W/O
- 579948
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00592
- PipeID
- P12739
- Time
- 4:19 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3544
- Sewer Name
- 15 AMAR ROAD RELIEF TRUNK
- City
- LA PUENTE
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 35
- Purpose
- Routine Assessment
- Project
- WO_579948_TV15138_JULY2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 15 0963
- Downstream MH
- 15 0961
- Dir. of Survey
- Downstream
- Length Surveyed
- 680.3 ft.
- Total Length
- 680.3 ft.
- Structural Index
- 3
- Structural Quick
- 4D3G
- Structural Rating
- 221
- O&M Index
- 2
- O&M Quick
- 413C
- O&M Rating
- 336
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 557
Observation photos (5)

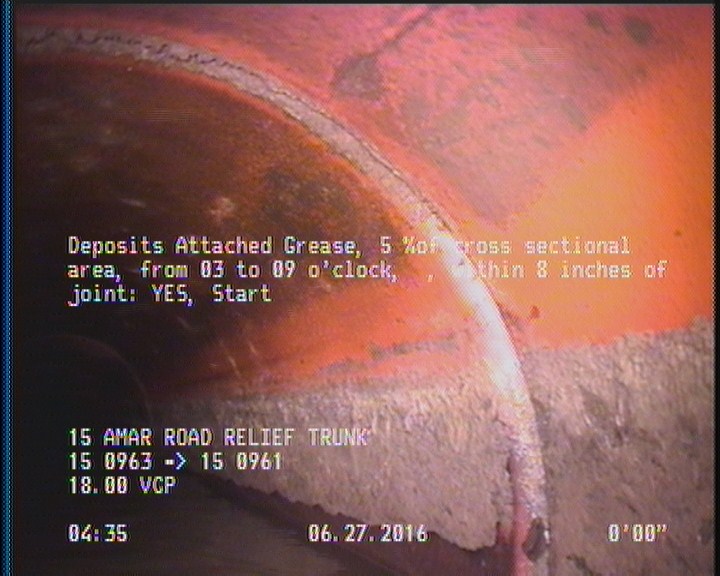

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

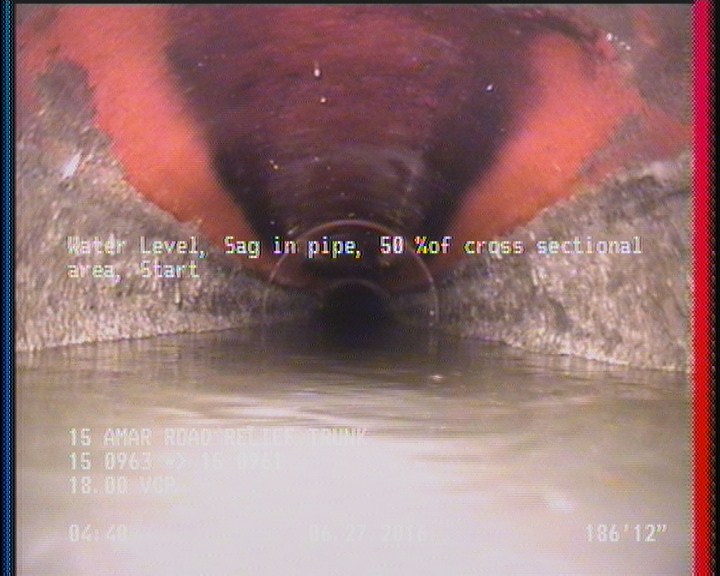

187 ft. - Water Level, Sag in pipe, 50 %of cross sectional area, Start

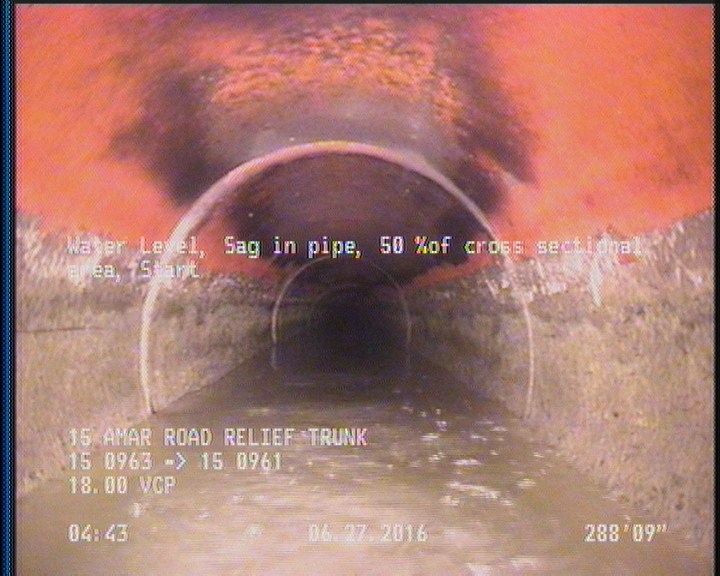

288.7 ft. - Water Level, Sag in pipe, 60 %of cross sectional area, Start

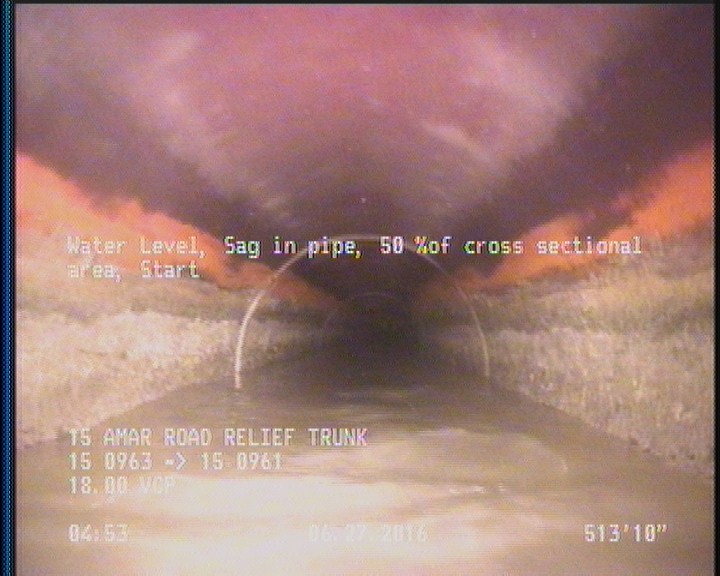

512.5 ft. - Water Level, Sag in pipe, 50 %of cross sectional area, Start

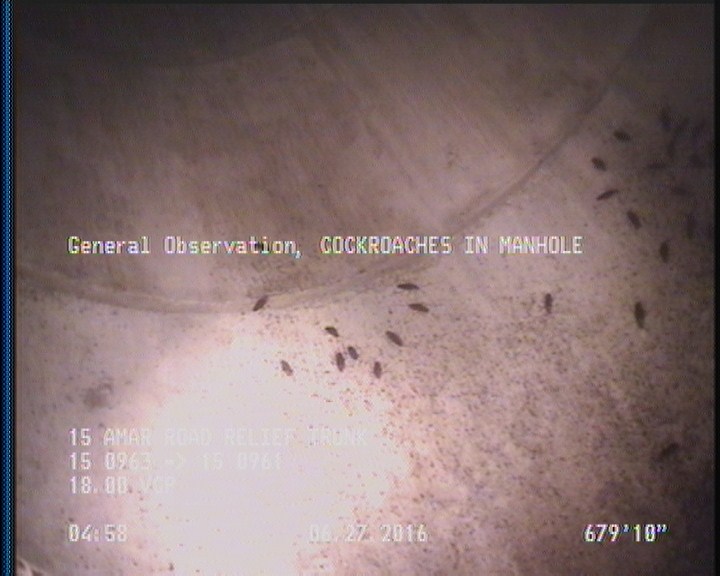

679.8 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 333.9 | DSZ | — |
| 417.9 | MWLS | — |
| 512.5 | MWLS | — |
| 679.8 | MWLS | — |
| 0 | AMH | 15 0963 |
| 288.7 | MWLS | — |
| 0 | MWL | — |
| 214.6 | MWLS | — |
| 679.8 | DAGS | — |
| 0 | MWM | — |
| 680.3 | AMH | 15 0961 |
| 435 | DSZ | — |
| 187 | MWLS | — |
| 679.8 | MGO | COCKROACHES IN MANHOLE |
| 96.6 | TB | — |
| 2 | DAGS | — |
Properties (5)
- additional_info
- SC305776
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-06-27T04:19:02-07:00
- year_laid
- 30544
