Wastewater/Activity/PacpInspection/1.0Mar 29, 2018, 05:21 AM
21 0683_21 0682 _28032018_223326.mp4
- Date
- 03/28/2018
- W/O
- 696196
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00766
- PipeID
- P15832
- Time
- 10:21 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5502
- Sewer Name
- 21 FIRST STREET TRUNK, SECTS 1&2
- City
- POMONA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 15
- Purpose
- Routine Assessment
- Project
- WO_696196_TV21104_APR2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 21 0683
- Downstream MH
- 21 0682
- Dir. of Survey
- Downstream
- Length Surveyed
- 390.3 ft.
- Total Length
- 390.3 ft.
- Structural Index
- 3
- Structural Quick
- 3J00
- Structural Rating
- 171
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 171
Observation photos (3)

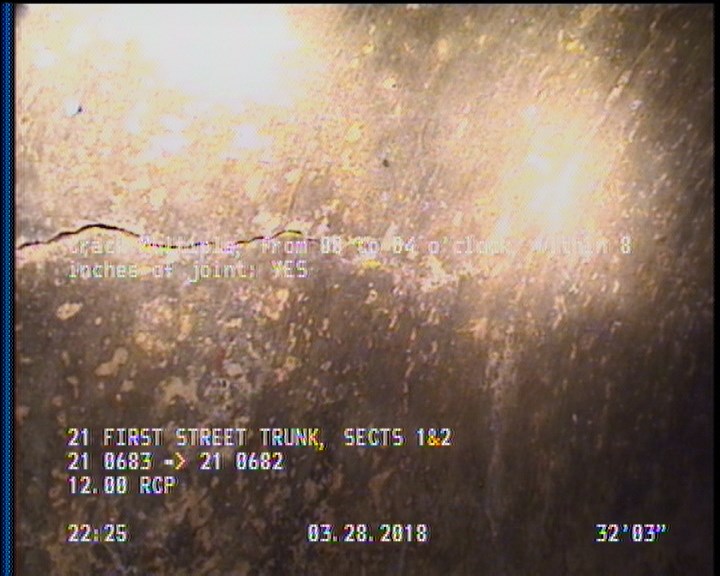

32.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

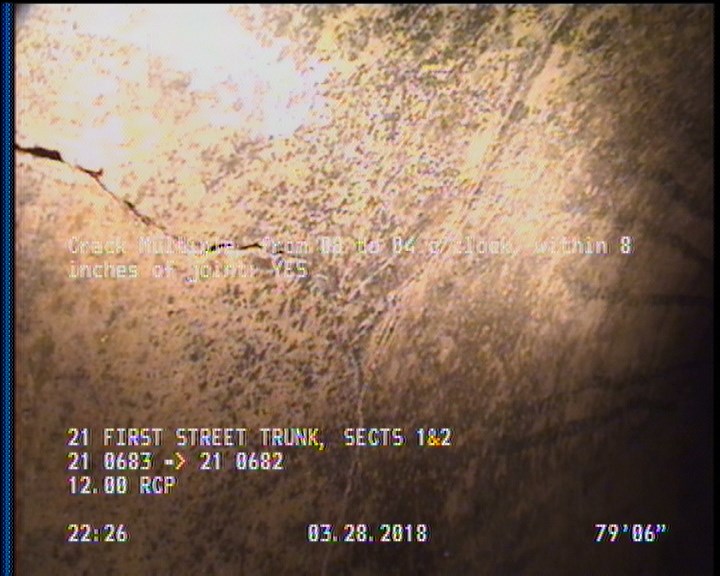

79.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

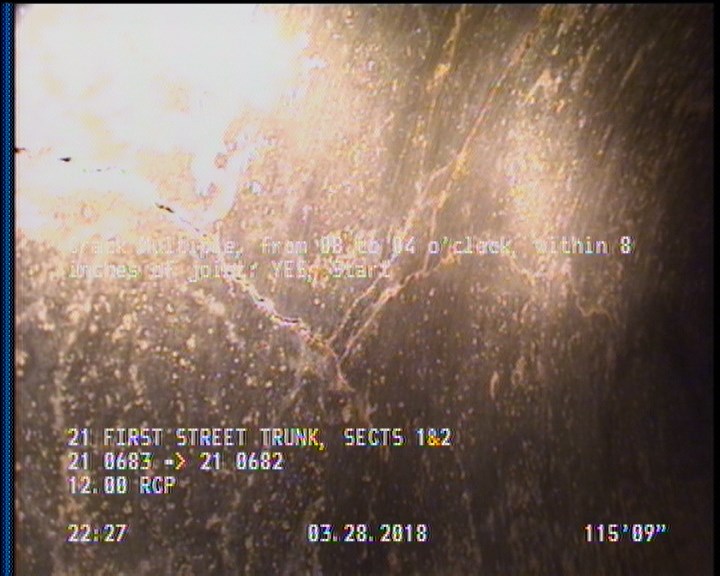

115.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 390.3 | AMH | 21 0682 |
| 0 | MWL | — |
| 32.2 | CM | — |
| 0 | AMH | 21 0683 |
| 79.5 | CM | — |
| 115.8 | CM | — |
| 388.7 | CM | — |
Properties (4)
- additional_info
- SC358511
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-03-28T22:21:33-07:00
